Chapter 2: Spectrum system installation
4. While pushing up the locking tab on the bottom of the slider, adjust the slider to the desired position.
5. Install the power cord into the power cord receptacle.

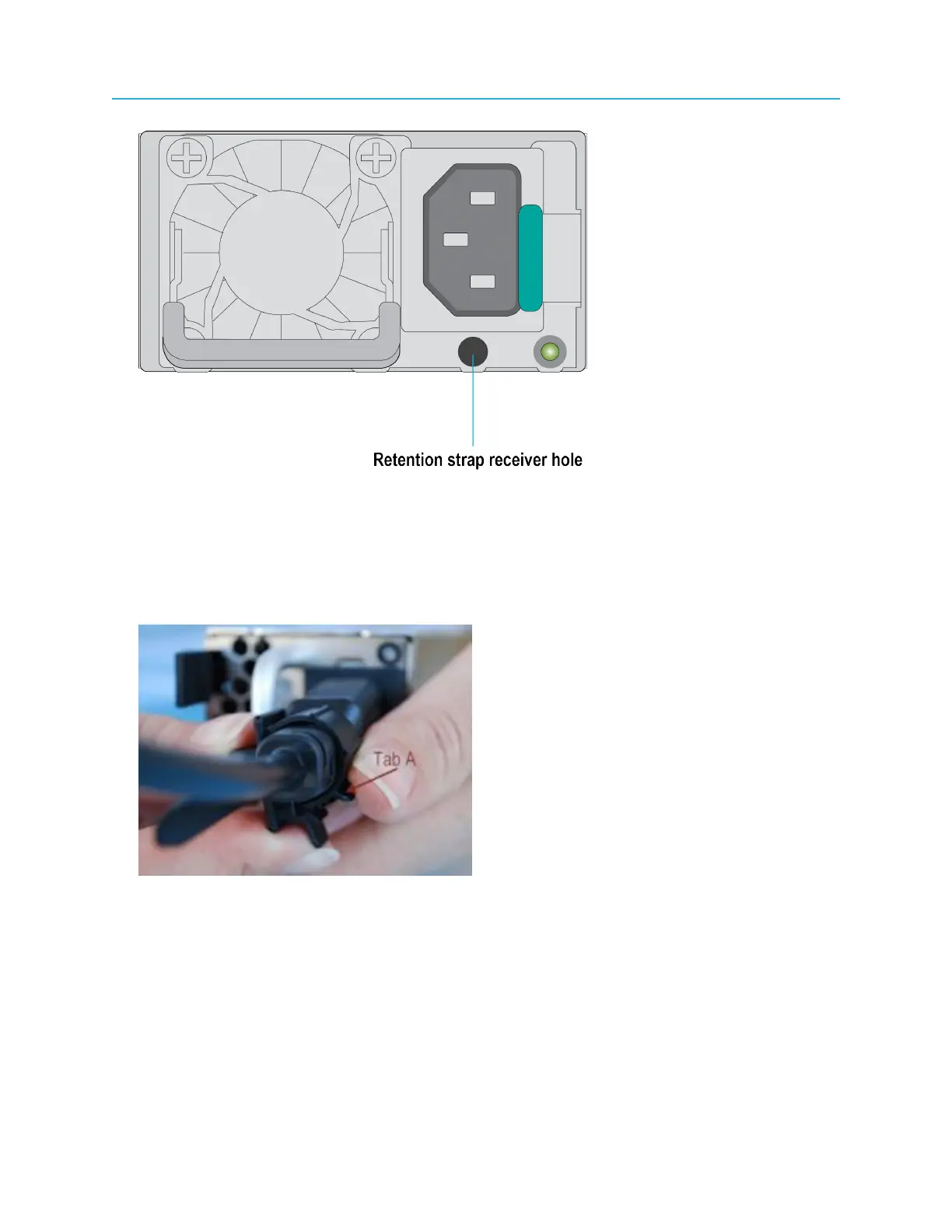

6. Pull the slider strap over the power cord and lock it securely into place. Tighten the retainer loop
around the power cord by grasping the two plastic tabs and depressing Tab A so that the retainer
clicks into place. The loop should be tightened around the power cord as firmly as possible.
Result:
To remove the power cord from the retention strap: push down on the slider tab to release the slider strap,
pull the slider strap back over the power cord, and then remove the power cord.
80
