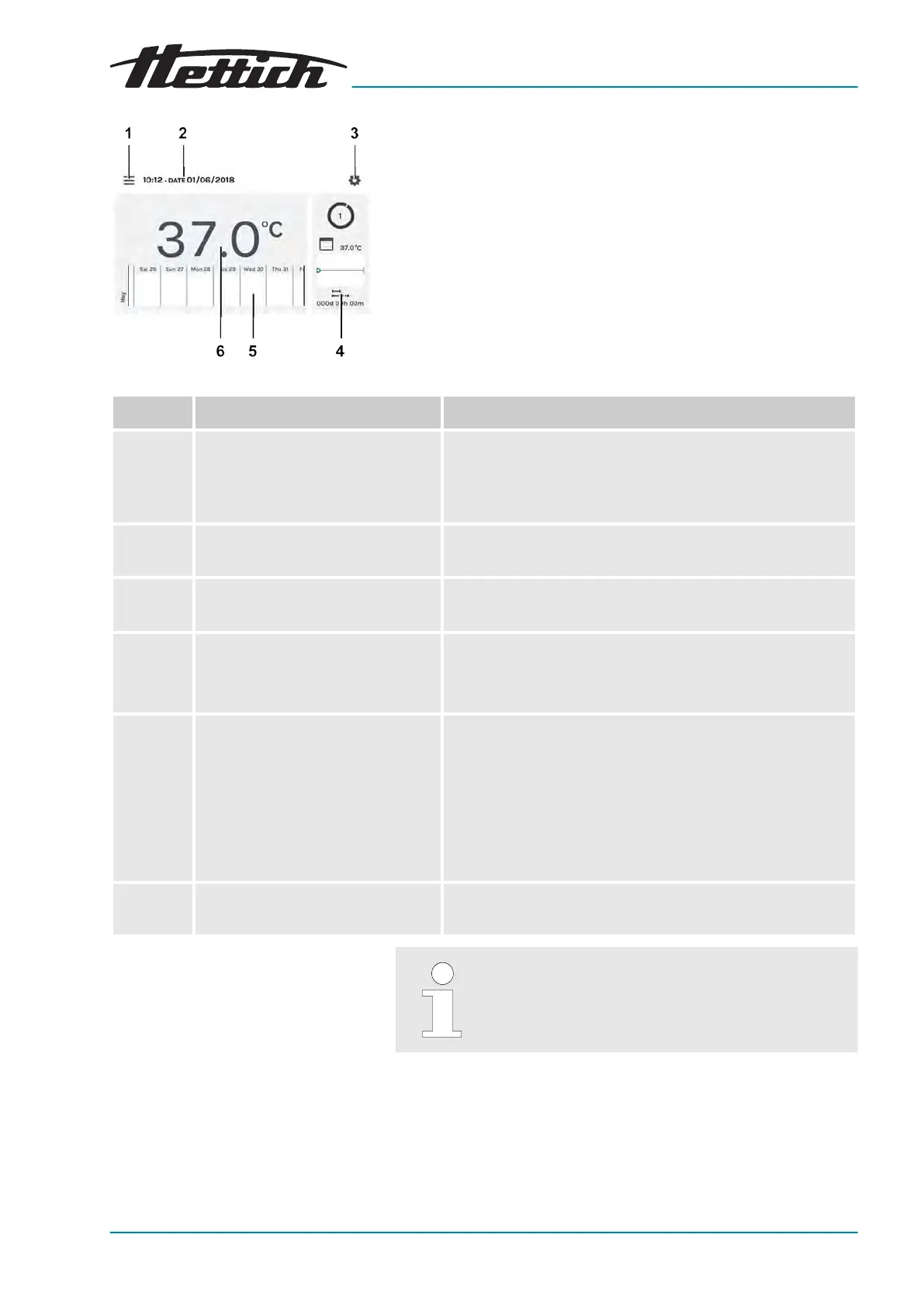

Fig. 56: Main screen
Item Designation Description/function
1
Operating modes
Chapter 6.11
‘Manual mode’ on page 54
,
Chapter 6.12 ‘Program mode’
on page 69
Call of manual and program mode.
2
‘Date’
and
‘Time’
display Shows the current date and time. These can be changed in
the settings (3).
3
Device settings
Chapter 6.13
‘Device settings’ on page 93
Calls up the device settings.
4 HettCube activities Shows the current incubator activities.
Pr
ogram mode is active in the gure (
Fig. 56 ‘Main screen’
on page 51
).
5
Process ow information
Chapter 6.10 ‘Process ow infor-
mation’ on page 52
Zoomable temperature process ow in three levels. Events,
such as breaks, continuations, open door, power failure,
etc. are marked on the temperature process ow curve
with various symbols.
Chapter 6.10 ‘Process ow information’ on page 52
Further information about the symbols:
Appendix A ‘Soft-
ware symbols’ on page 155
6 Display of
‘Actual temperature’
in
the interior
Shows the current temperature inside the incubator.
The detailed screen switches to the main screen
automatically.
