270

Sending Data Using the FTP Client

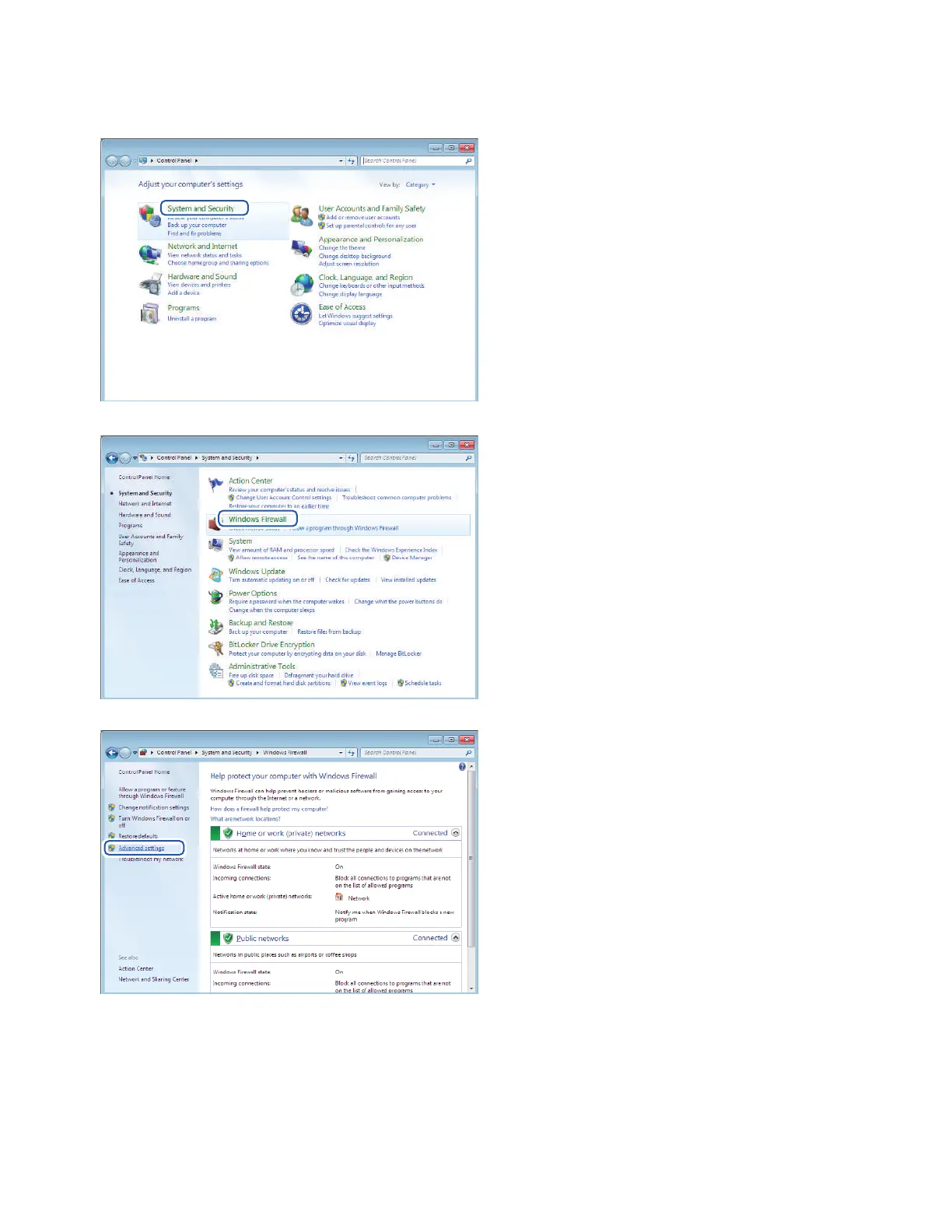

Enabling FTP tra󰀩c with the rewall (Windows 7)

Click [Control Panel] > [System and

Security].

Click [Windows Firewall].

Click [Advanced settings].

HIOKI LR8450A964-03
