Hioki MEMORY HiLOGGER LR8450 User Manual

27
Conguring Input Channels

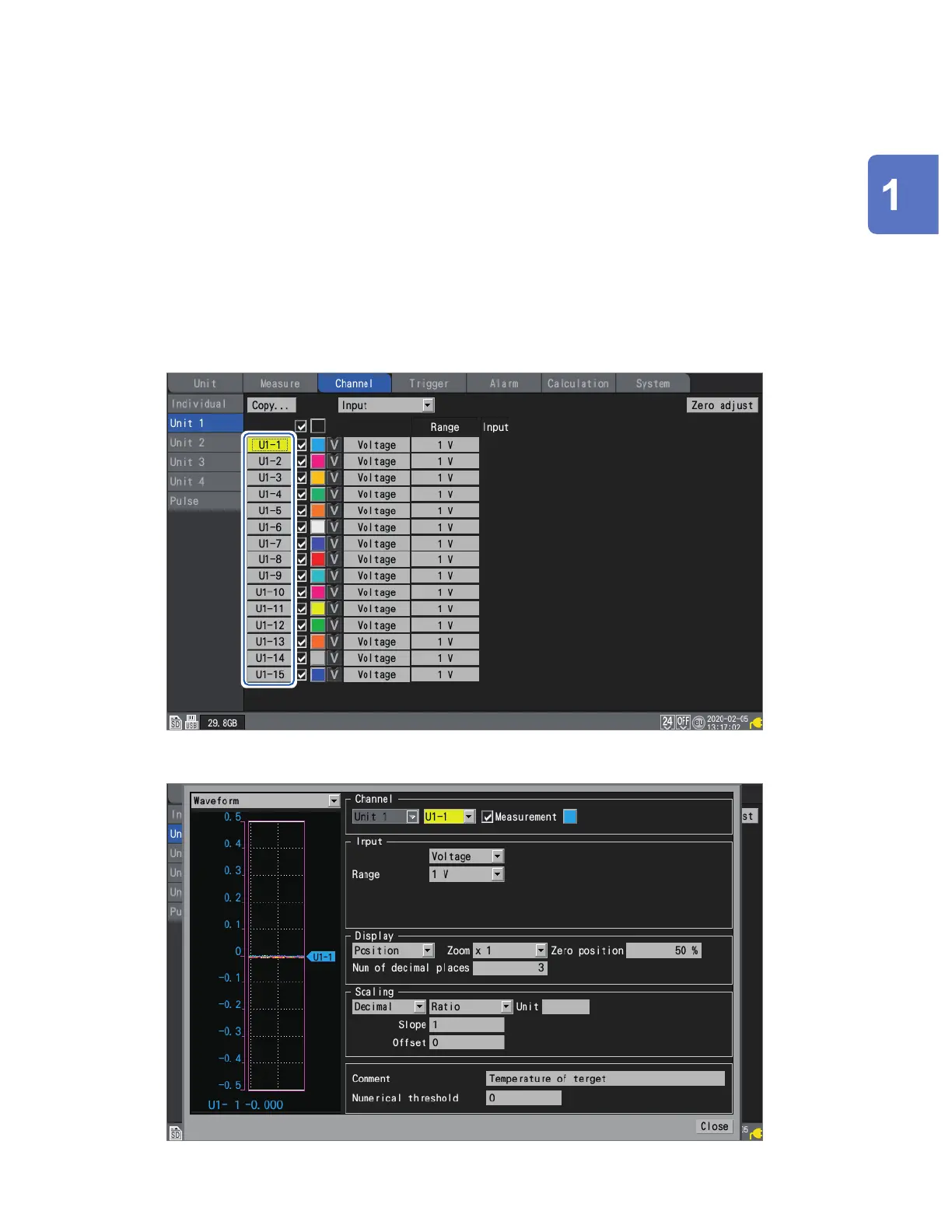

Settings list screen
This screen displays a list of settings for each module.
For more information about the settings list screen, see “1.9 Conguring Channels in a List” (p. 67).
The following settings can be congured on the settings list screen:
• Measurement on/o󰀨
• Waveform display colors
• Input, display, scaling, comment, and numerical value calculation settings (Available settings
depend on the type of module.)
• Zero-adjustment (U8554 and LR8534: auto balancing)
Select a channel number and press the ENTER key to display the individual settings window.
You can also congure settings on the individual settings window.
Individual settings window (close with the ESC key)
Settings and Operation
HIOKI LR8450A964-03
