76
RM2611 Electrode Resistance Meter
Constant current generation range 10 μA (min.) to 10 mA (max.)
For more information about range parameters, see “Table 1. RM2611
Electrode Resistance Meter Measurement Ranges” (p. 76).
Test xture connector D-sub 50-pin receptacle
Temperature measurement terminal TEMP.SENSOR terminal (for connecting the instrument to the Z2001
Temperature Sensor)

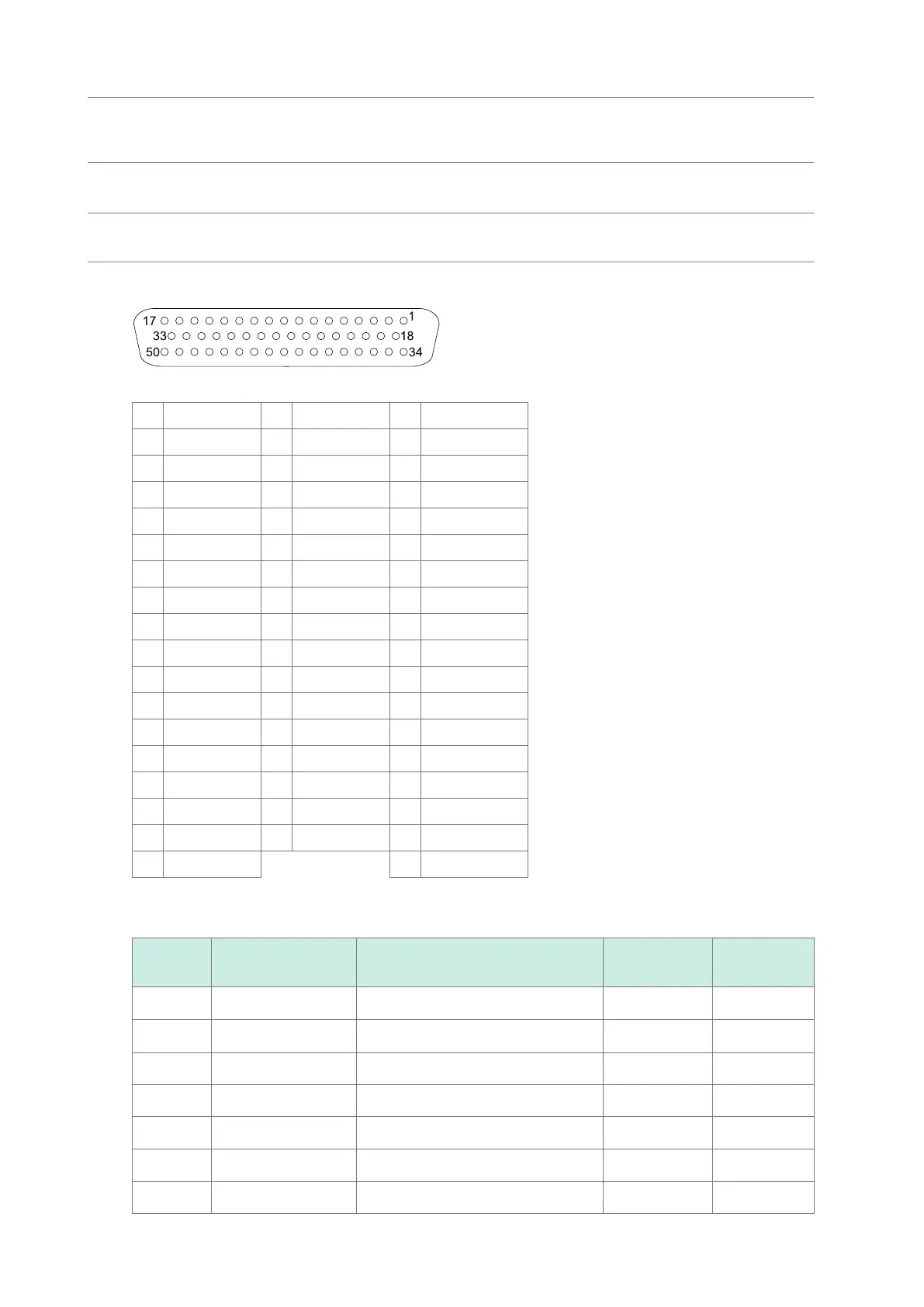

Test xture connector pin assignments
No. Pin name No. Pin name No. Pin name
1 TP6 18 TP16 34 N.C.
2 TP12 19 TP23 35 TP3
3 TP19 20 TP30 36 TP44
4 TP26 21 TP37 37 TP2
5 TP33 22 TP8 38 TP43
6 TP40 23 TP15 39 TP1
7 TP11 24 TP22 40 TP42
8 TP18 25 TP29 41 TP13
9 TP25 26 TP36 42 TP7
10 TP32 27 N.C. 43 TP20
11 TP39 28 N.C. 44 TP14
12 TP10 29 TP5 45 TP27
13 TP17 30 TP46 46 TP21
14 TP24 31 TP4 47 TP34
15 TP31 32 TP45 48 TP28
16 TP38 33 N.C. 49 TP41
17 TP9 50 TP35
Table 1. RM2611 Electrode Resistance Meter Measurement Ranges
f.s.= 1,000,000 dgt.
Range
Max. measurement
range*
Measurement range
Measurement
current
Max. open
voltage
1000 m
Ω
1200.000 m
Ω
0.000 m
Ω
to 1200.000 m
Ω
10 mA 5.5 V
10
Ω
12.00000
Ω
0.00000
Ω
to 12.00000
Ω
10 mA 5.5 V
100
Ω
120.0000
Ω
0.0000
Ω
to 120.0000
Ω
10 mA 5.5 V
1000
Ω
1200.000
Ω
0.000
Ω
to 1200.000
Ω
1 mA 5.5 V
10 k
Ω
12.00000 k
Ω
0.00000 k
Ω
to 12.00000 k
Ω
1 mA 20 V
100 k
Ω
120.0000 k
Ω
0.0000 k
Ω
to 120.0000 k
Ω
100 µA 20 V
1000 k
Ω
1200.000 k
Ω
0.000 k
Ω
to 1200.000 k
Ω
10 µA 20 V
*Negative values: To -10% f.s.
