CHASSIS
- 269-

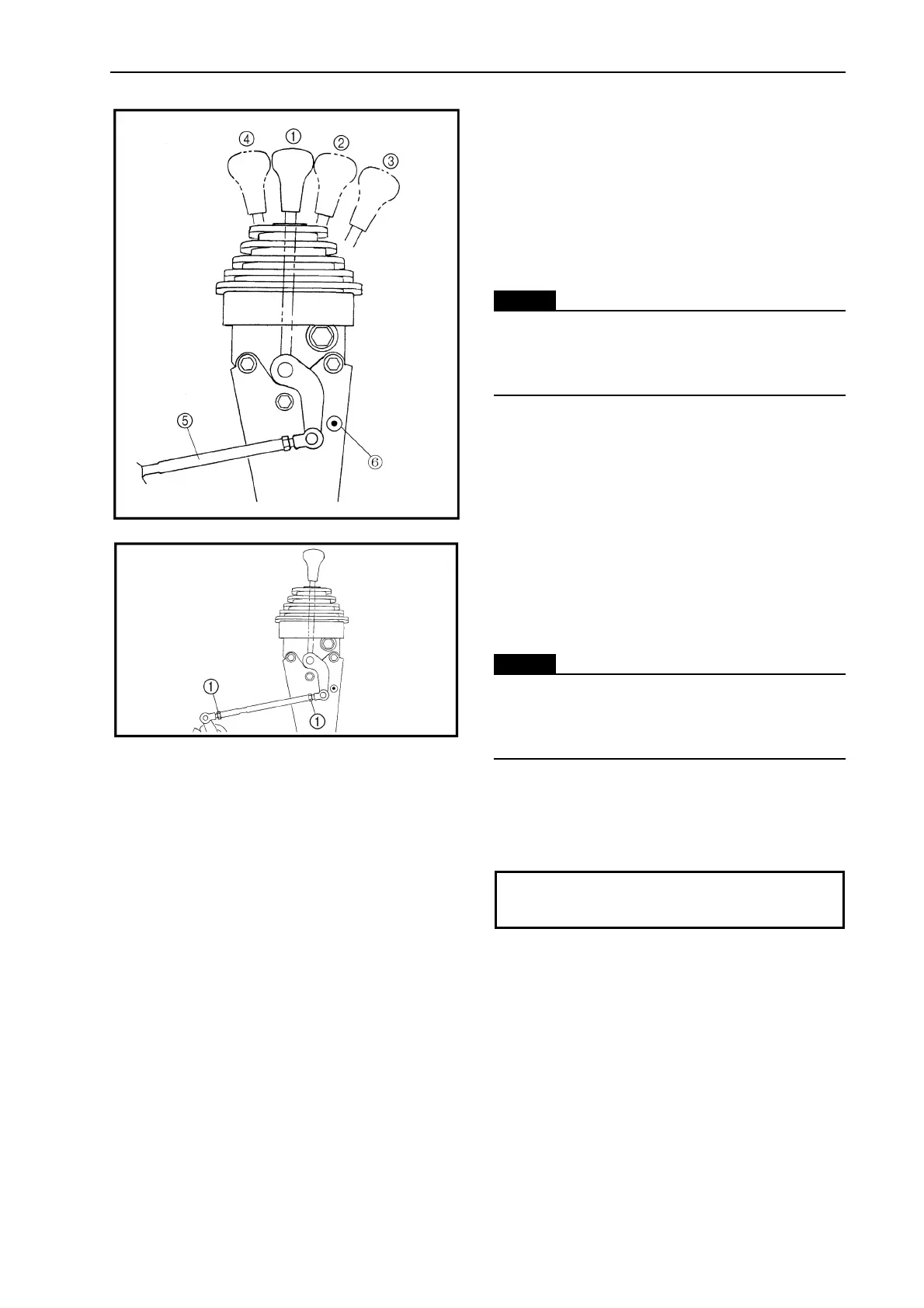

ADJUSTING REVERSE MECHANISM PARTS
① Neutral
② High
③ Low
④ Reverse
⑤ Select lever shift rod
⑥ Shift control cable
1NOTE:
Before shifting, you must stop the vehicle
and take your foot off the accelerator pedal.
Otherwise, the transmission may be damaged.
1. Adjust:
• Select lever shift rod
a. Make sure the select lever is in NEUTRAL.
b. Loosen both locknuts ①.
1NOTE:
The select lever shift rod locknut (select leve
side) has left-handed threads.
To loosen the locknut, turn it clockwise.
c. Adjust the shift rod length for smooth and
correct shifting.
d. Tighten the locknuts ①.
Locknut
15 Nm (1.5 m · kg, 11 ft · lb)
CHECKING AND SERVICE OF REVERSE
MECHANISM
1. Check the reverse mechanism handle whethe
is nimbly, if it is not, disassemble the reverse
mechanism to check the inner striking
fork is
stagnation, the steel ball is locked by
something, the spring is natural. If exist the
problems all the above, replace the parts, and
