ELECTRICAL COMPONENTS
- 337 -

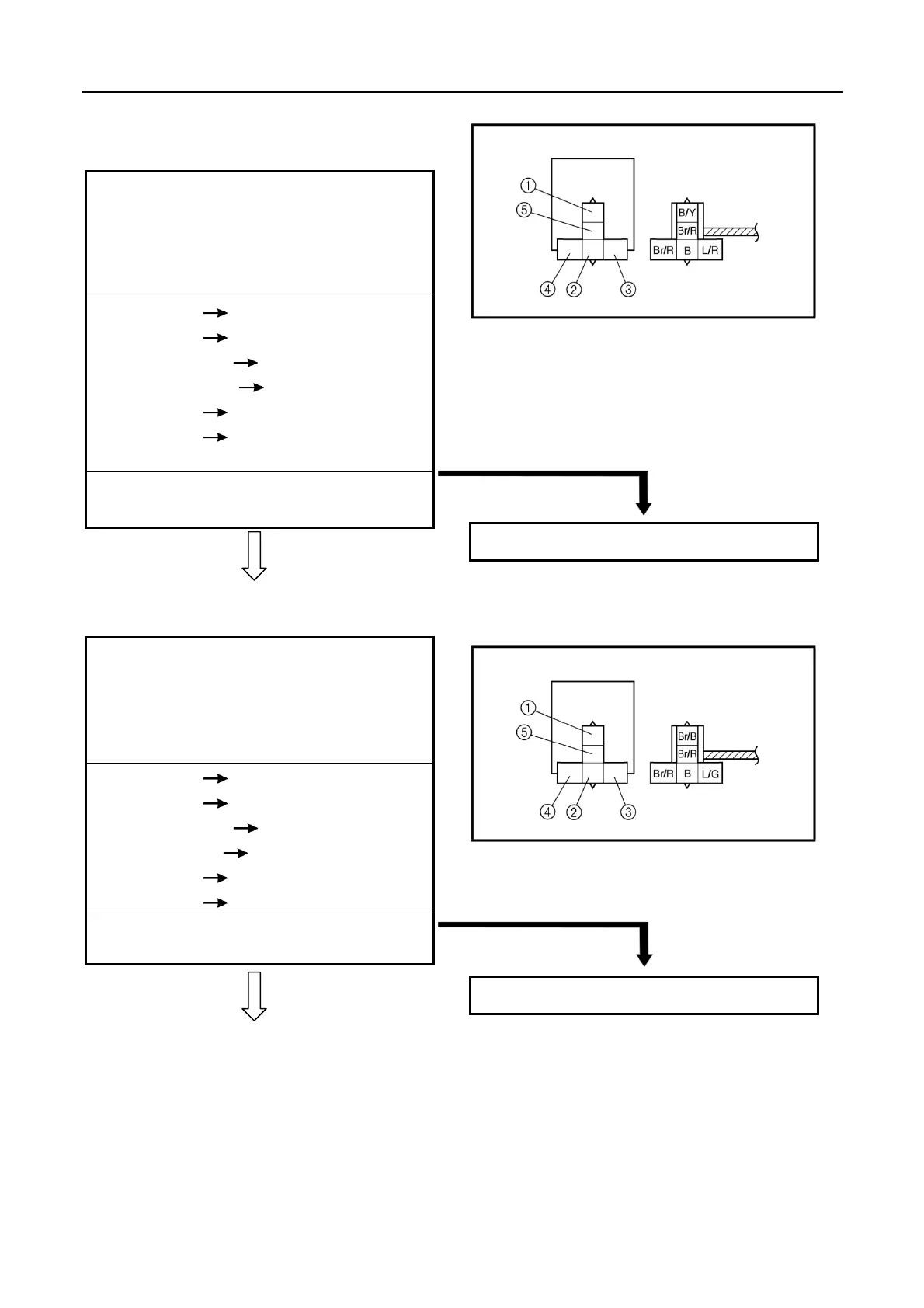

4. Four-wheel drive relay 1
• Remove the four-wheel drive relay 1 from the
wire harness.
• Connect the pocket tester (Ω × 1) and the
battery (12 V) to the four-wheel drive relay 1
terminals.
Tester (+) lead Black/Yellow terminal ①
Tester (–) lead
Black terminal ②
Battery (+) terminal Brown/Red terminal ③
Battery (–) terminal
Blue/Red terminal ④
Tester (+) lead
Black/yellow terminal ①
Tester (–) lead
Brown/Red terminal ⑤
• Check the four-wheel drive relay 1 for
continuity.
CONTINUITY
5. Four-wheel drive relay 2
• Remove the four-wheel drive relay 2 from
the wire harness
• Connect the pocket tester (Ω × 1) and the
battery (12 V) to the four-wheel drive relay
2 terminals.
Tester (+) lead Brown/Black terminal ①
Tester (–) lead
Black terminal ②
Battery (+) terminal Brown/Red terminal ③
Battery (–) terminal Blue/Green terminal ④
Tester (+) lead
Brown/Black terminal ①
Tester (–) lead
Brown/Red terminal ⑤
• Check the four-wheel drive relay 2 for
continuity
CONTINUITY
NO CONTINUITY
Replace the four-wheel drive relay 1.
NO CONTINUITY
Replace the four-wheel drive relay 2.
