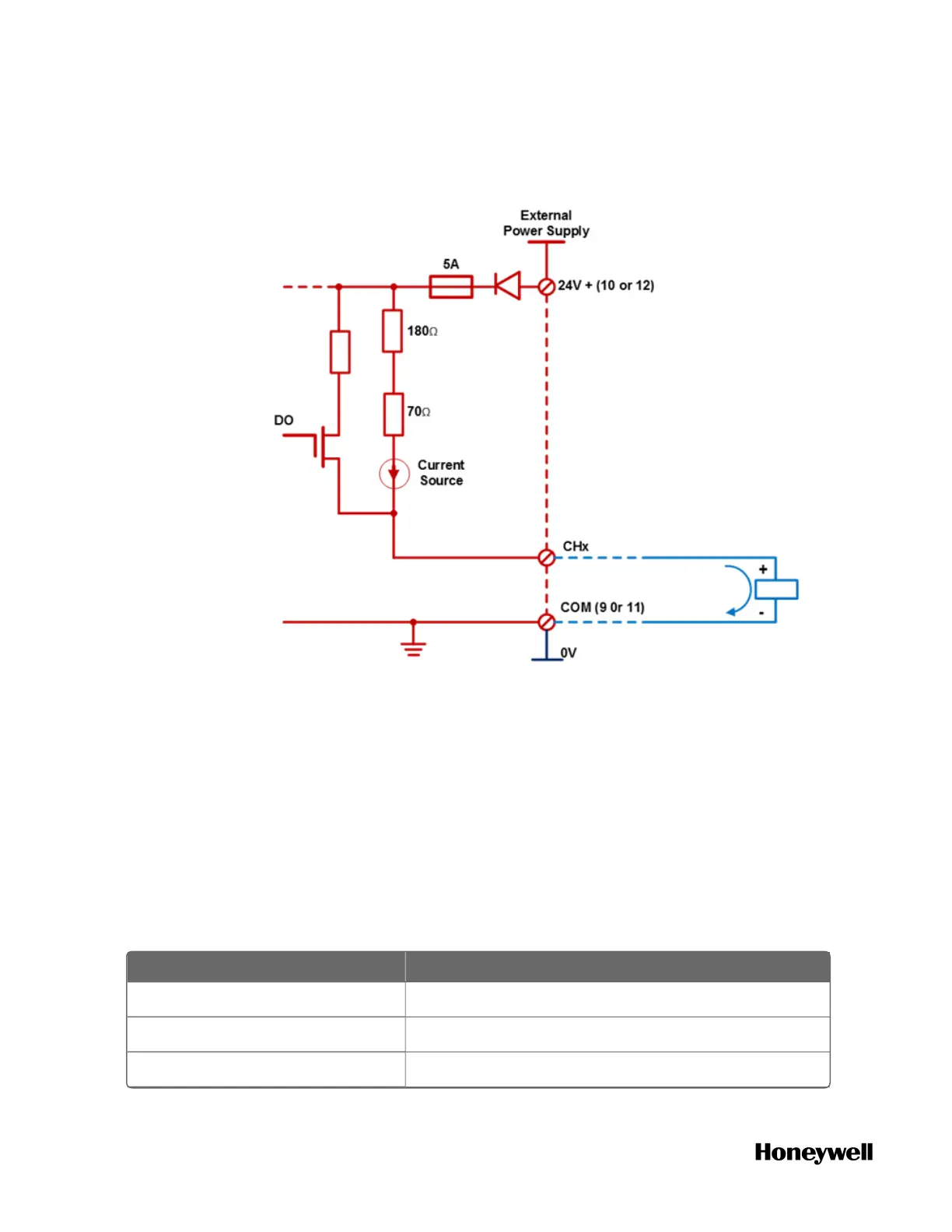

See the following figure for the channel configuration.
Figure 5-29: UIO_DO channel configuration
The UIO-DO channel supports ganging.
A set of two, three, or four DO channels can be configured to deliver
up to 1 Ampere, 1.5 Amperes, or 2 Amperes current respectively to the
field.
A two-pin branch with a pitch of 0.2 inches (5.08 mm) can be used for
interconnecting two DO channels. The following table lists the pins
branch for interconnecting the DO channels.
Table 5-19: UIO pins branch for interconnecting the DO
Pins No. of DO channels Two pins
Two pins branch 2
Three pins branch 3
Four pins branch 4
120
