Honeywell ControlEdge 900 platform User Manual

AC/DC Isolated Input Module Wiring

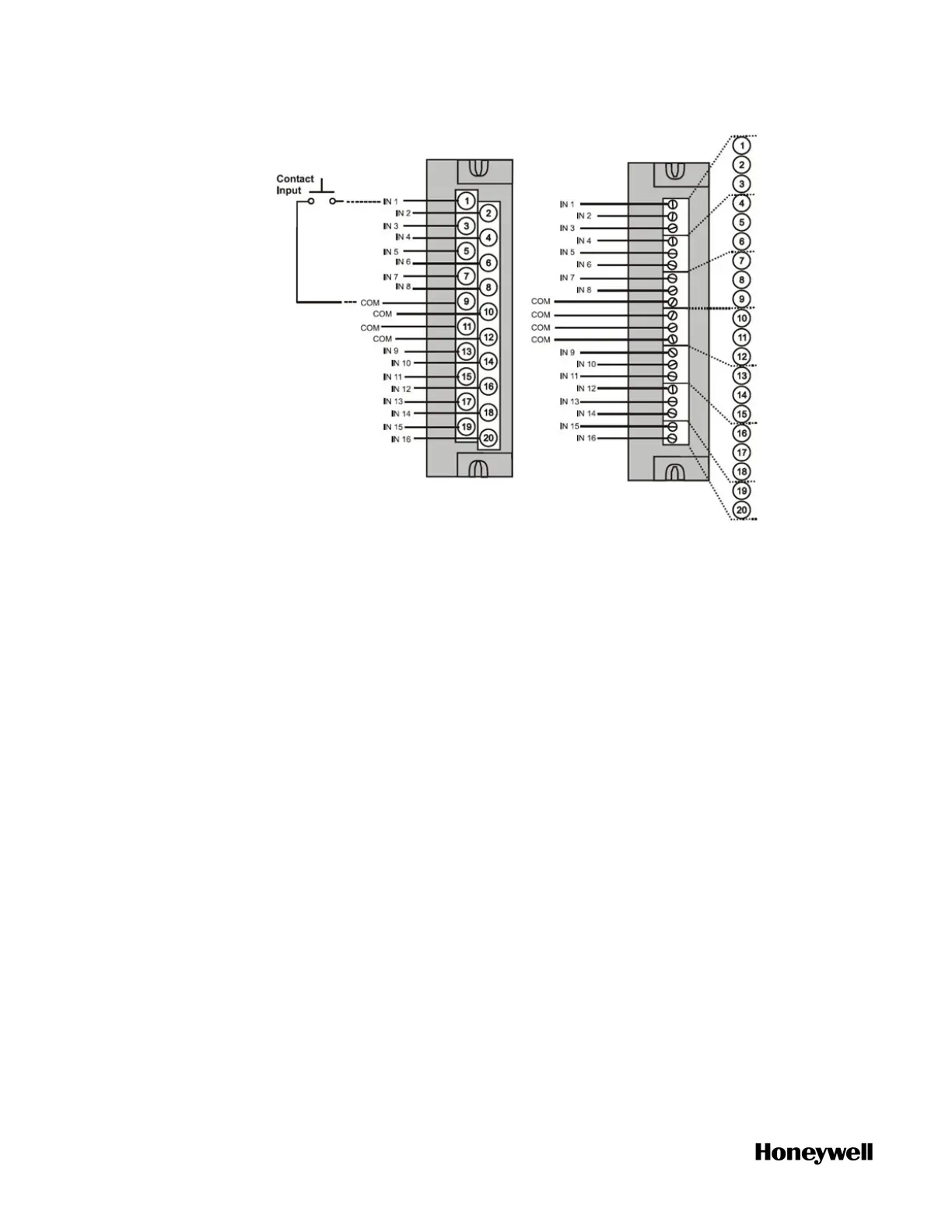

The AC/DC Input Module has sixteen isolated inputs. An example of
AC Input and DC input Module wiring is shown below. And it requires
Low Voltage Euro style 36-terminal terminal block.
Isolation
Inputs must be powered from external voltage sources. Inputs are
isolated from each other and from controller power.
Figure 5-59: Isolation of Ac/DC Isolated Input Module
146
