Honeywell ControlEdge 900 platform - Volt, Millivolt Input Connections; Three-Wire RTD Input Connections; Two-Wire RTD or Ohm Input Connections; Slidewire Feedback Connections for Actuators

Appendix A - Installing RTP

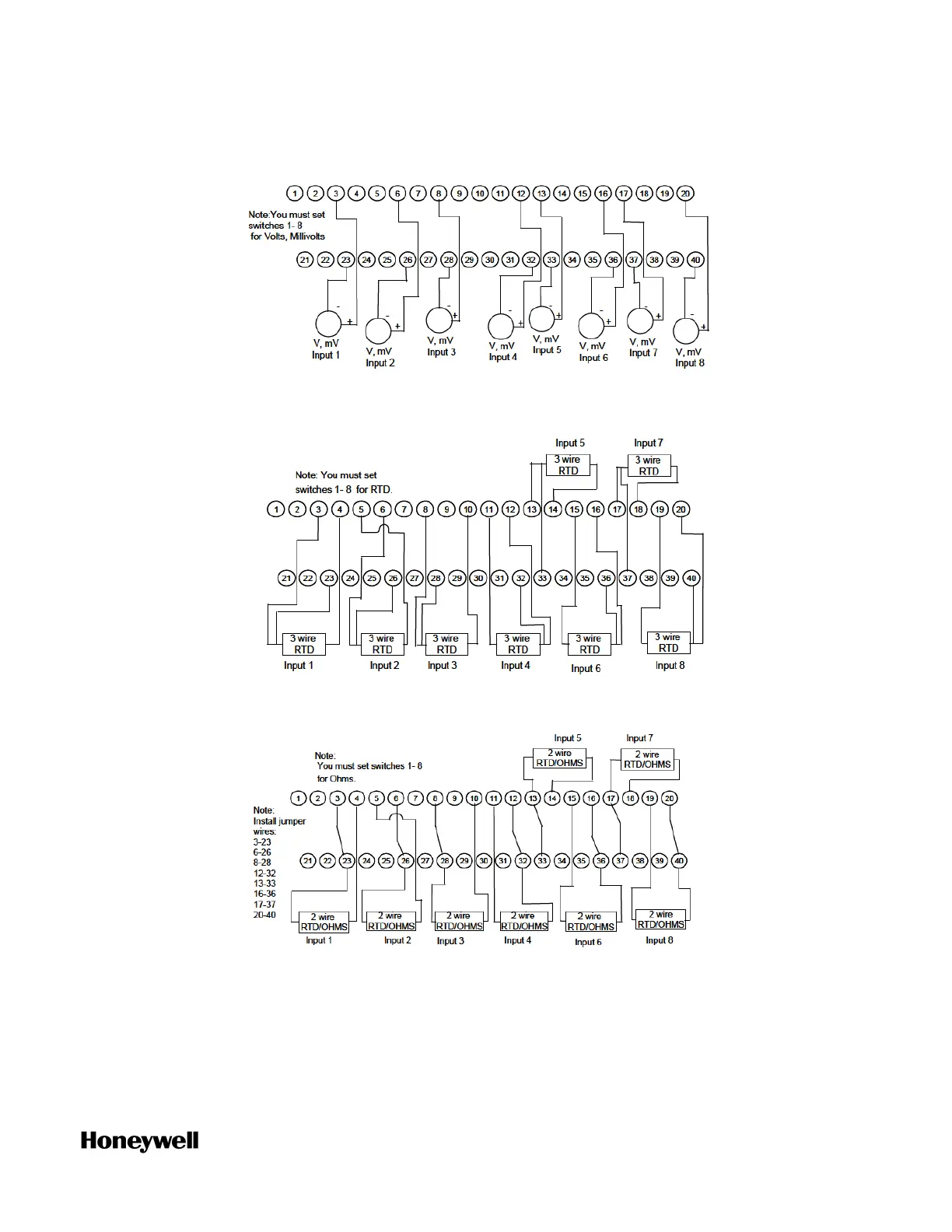

Figure A-6: Volt, millivolt input connections
Figure A-7: Three-wire RTD input connections
Figure A-8: Two-wire RTD or ohm input connections
Figure A-9: Slidewire feedback connections for actuators
