Appendix A - Installing RTP

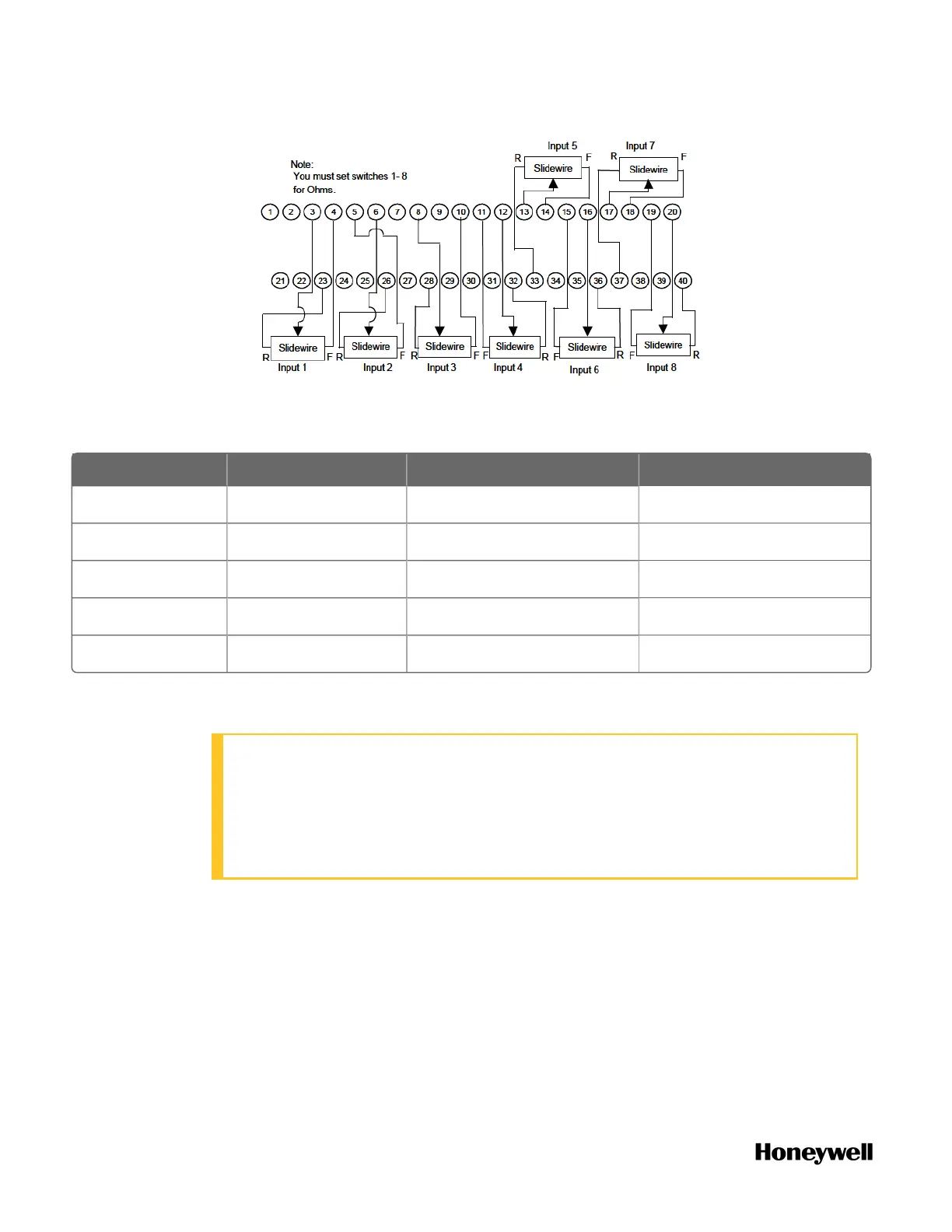

Table A-2: Analog Input accuracy specification
Range AI Module Accuracy RTP + Cable Accuracy AI Module + RTP Accuracy
100Ω Plat. RTD ±0.1% of Range ±0.04% Range (0.357°C) ±0.14% of Range
JIS RTD ±0.1% of Range ±0.12% Range (0.824°C) ±0.22% of Range
10Ω Cu. RTD ±0.1% of Range ±0.57% Range (1.540°C) ±0.67% of Range
200Ω OHMS ±0.1% of Range ±0.07% Range (0.140Ω) ±0.17% of Range
0-10mV LINEAR ±0.1% of Range ±0.04% Range (0.004mV) ±0.14% of Range
Using Dual RTPs to field wiring the 16 Point AI
ATTENTION:
l RTP and cables are intended for permanent installation within their own
enclosure.
l The RTP labeled “DI, DO, AO RTP ASSY” with jumpers J2-J9 is the correct
one for 16 point AI.
To wire the 16 Point AC AI using two RTPs:
1. Mount the RTP cable assembly to ControlEdge 900 Controller. See the
following figure for the example installation diagram.
196
