Honeywell ControlEdge 900 platform - Two-Wire Transmitter Connections with Common 24 VDC Supply; Milliamp Input Connections with 250 Ohm Shunt Resistance

Appendix A - Installing RTP

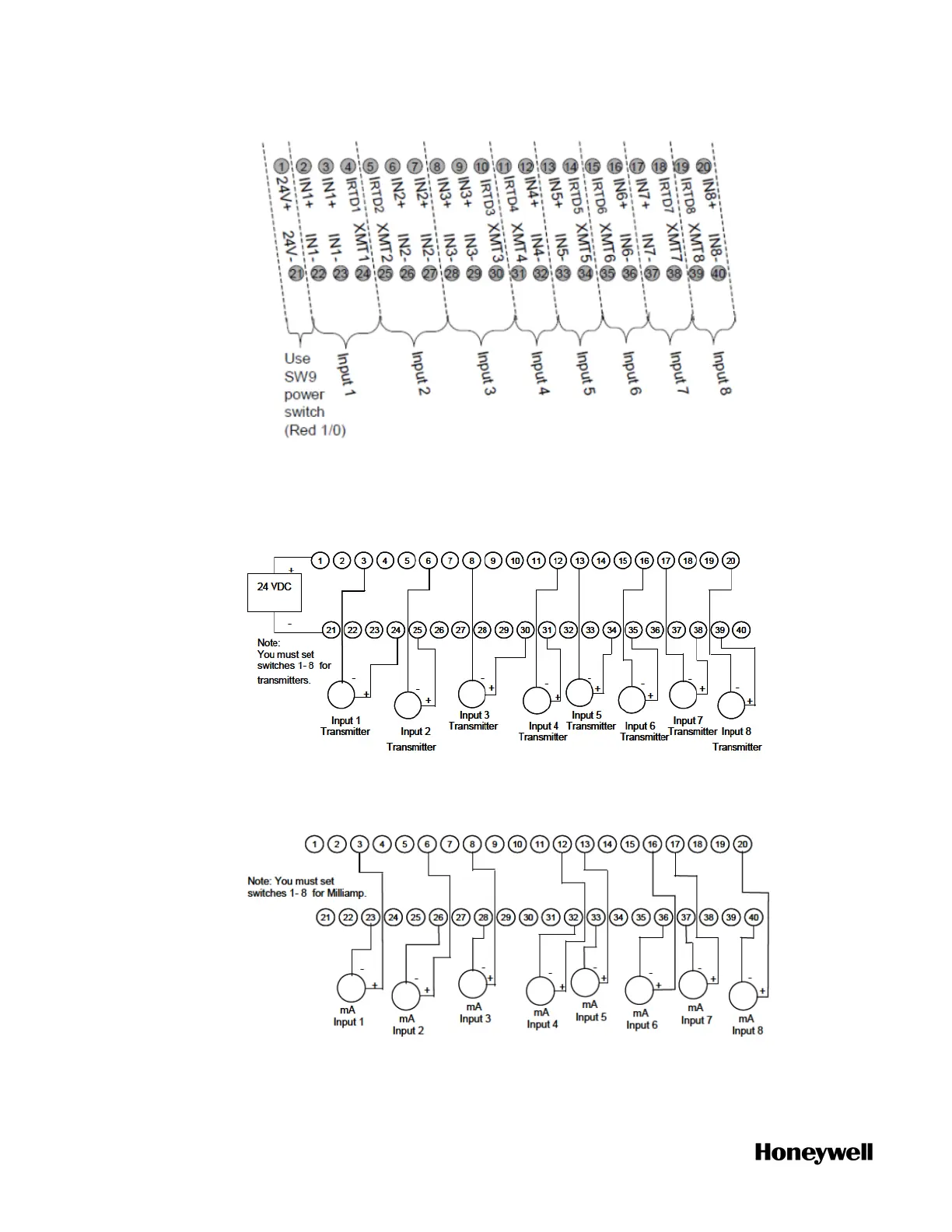

Figure A-4: Two–wire transmitter connections with common
24 VDC supply
Figure A-5: Milliamp input connections with 250 ohm shunt
resistance
194
