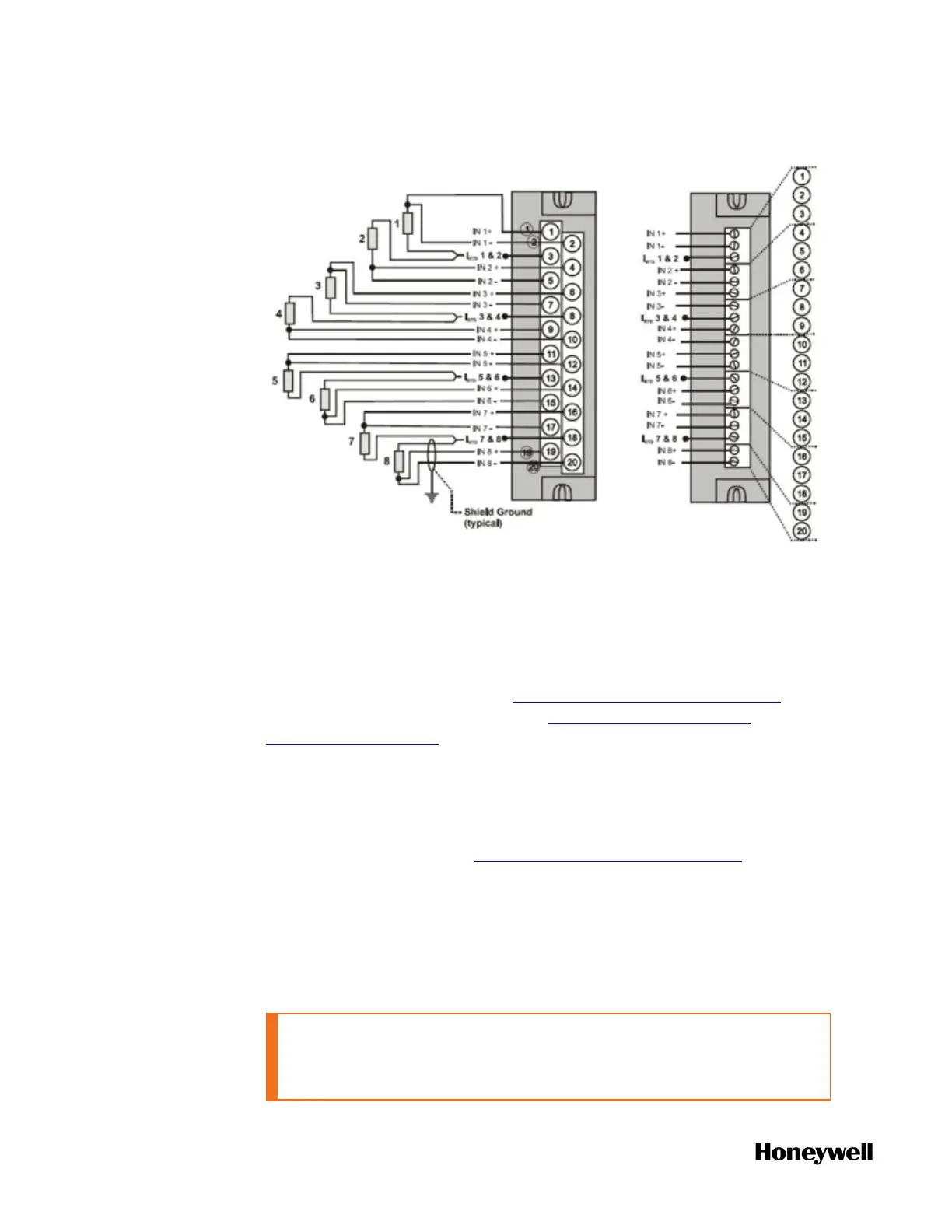

Figure 5-35: Analog Input Wiring - Eight RTDs
Digital Input Module (16 channels)-AC Voltage Type
Wiring
The AC Input Module has sixteen inputs. An example of AC Input
Module wiring is shown in the AC Input Module Wiring Diagram .
Specifications for this module, see Digital Input Module (16
channels)-AC Voltage Type section.
Common Terminals
Two common terminals are provided for each group of eight inputs.
Terminals 9 and 10 are for input 1 to 8 and terminal 11 and 12 are for
input 9 to 16 as shown in AC Input Module Wiring Diagram section.
Jumper Comb
An optional two-position jumper comb is available as an option (for
barrier style terminal blocks only) for connecting digital common
wiring at terminals 9 and 11 or terminals 10 and 12. See Figure
Digital Input Module (16 channels)-AC Voltage Type Wiring section.
CAUTION:
- Hazardous voltages exist at terminal blocks.
- Using switches at field devices, disconnect the field wiring from
