Honeywell ControlEdge 900 platform

Appendix A - Installing RTP

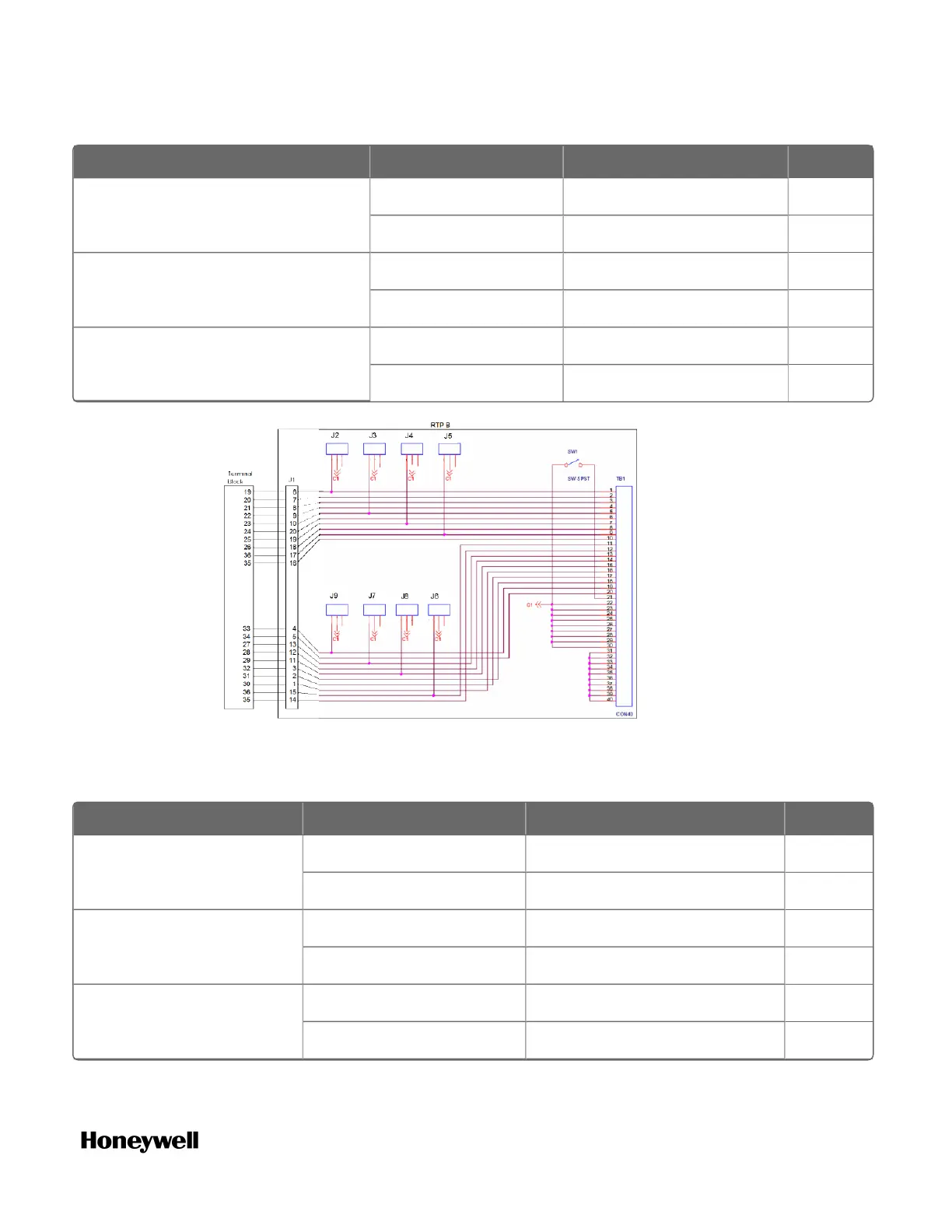

Twisted Pair Number of Cable A Module TB Position RTP J1 Plug Connector Color
8 33 4 Red
34 5 White
9 21 8 Red
26 18 Green
10 27 13 Red
32 3 Blue
RTP Cable wire positions and colors (applies Relay Output)
Twisted Pair Number Module TB Position RTP J1 Plug Connector Color
1 1 6 Black
2 7 Red
2 4 9 Black
5 10 White
3 6 20 Black
7 19 Green
225
