Appendix A - Installing RTP
ATTENTION: SDC+ in the wiring figure below refers to power that is
disconnected from these screw terminals when switch SW1 is open (0).
Using Dual RTPs to field wiring the 32 Point DC DI
ATTENTION: RTP and cables are intended for permanent installation within
their own enclosure.
To wire the 32 Point DC DI using dual RTPs:

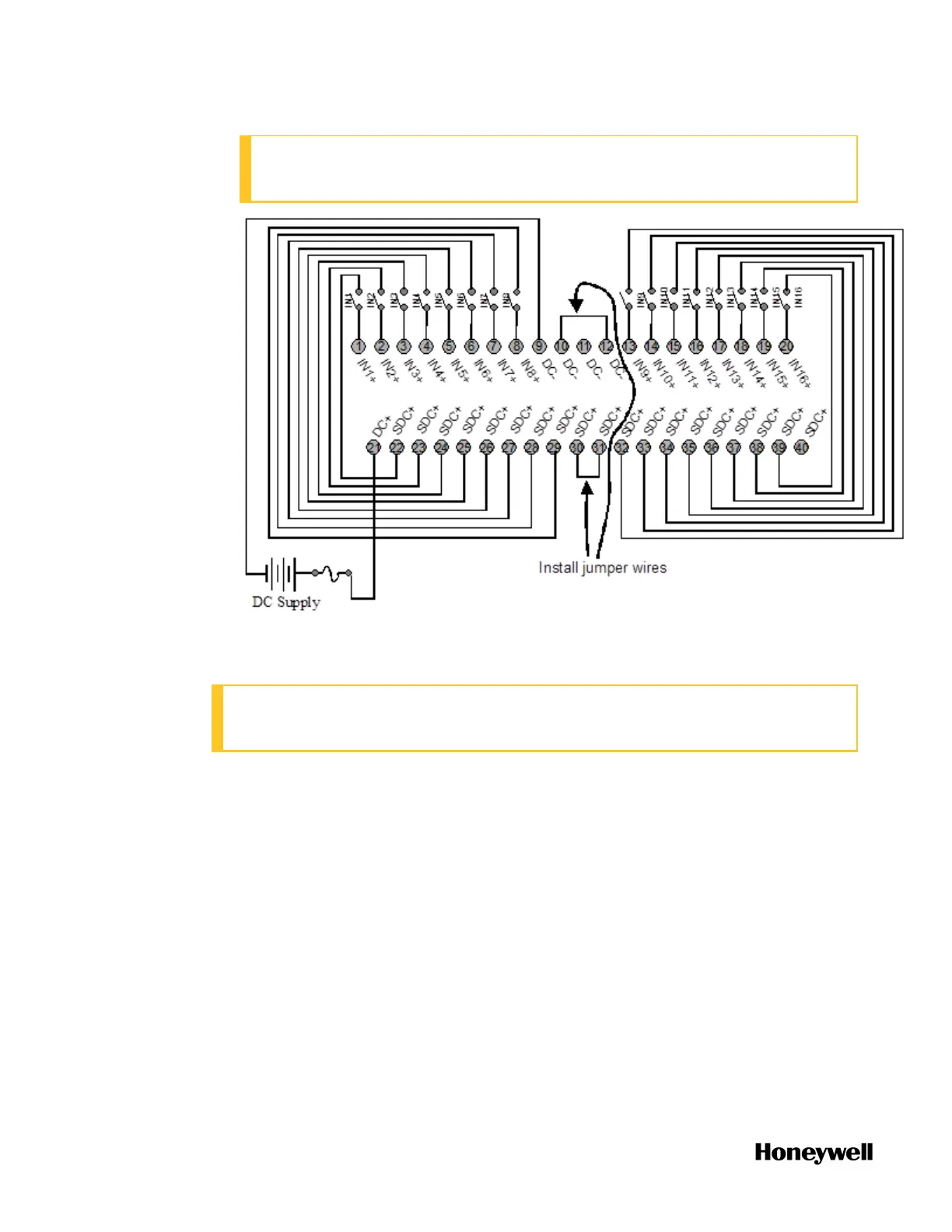

1. Mount the RTP cable assembly to ControlEdge 900 Controller. See the
following figure for the example installation diagram.
