97
ATTENTION: When the DIP switch is set to be off , while the
external power is down, the open wire detection is not available.
n External Power Source requirement: Vin:18 to 36 VDC
n Current: 350 mA per module
Digital Input Module-AC DC Voltage type
The AC/DC Input Module provides 16 individually isolated, inputs that
are powered externally. Two terminals are provided for each circuit.
AC or DC power applied between the input terminals cause the inputs
to turn On.
There is a green LED state indicator for each channel on the module
to indicate when a digital input is ON. A green blinking status LED on
the module indicates when the module is being scanned. A red status
LED when module diagnostics exist. Logic in the controller allows the
state to be inverted when necessary. Requires Euro style 36-terminal
terminal block.
*Nominal times excluding controllers scan time and excluding
transmission time from module to rack. DC application must include
controller line filter setting of 50/60 Hz.

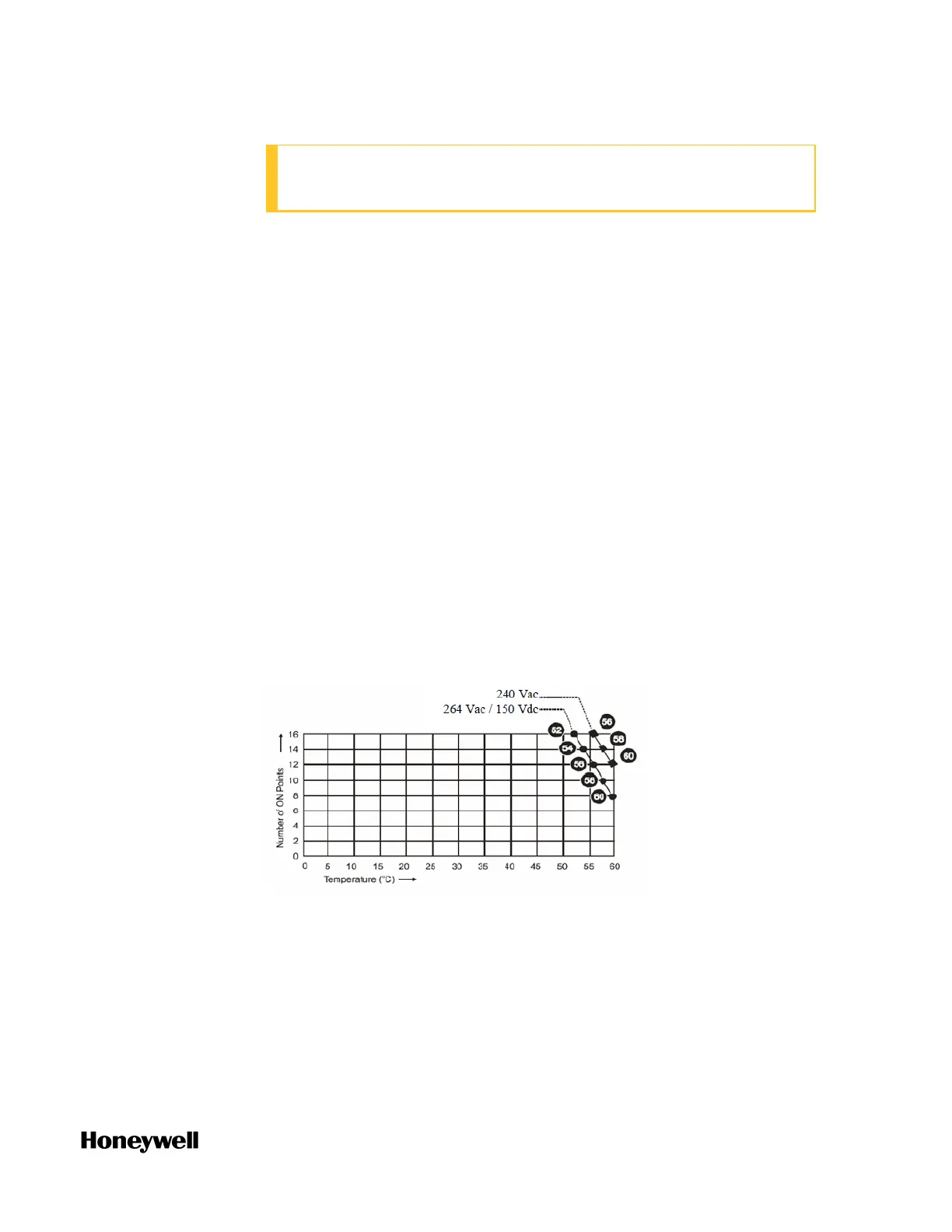

Figure 5-17: Active input De-rating table for AC/DC DI
High Level Analog Input Module (16 Channels)
16 user-configurable channel, each channel can be configured as
below type: 0-20 mA；4-20 mA；0-1 V；0-2 V；0-5 V；0-10 V；-1-1
V；-2-2 V；-5-5 V； -10-10 V
