Honeywell ControlEdge 900 platform

Appendix A - Installing RTP
I/O Module
Terminal
Block
(Euro)
Terminal
Block
(Barrier)
RTP
RTP
Cable
RTP required per module
(only for RTP not for Cable)
AO 4 CH
(900B01-0301)
900TEK-
0200
900TBK-
0200
900RTS-
0001
900RTC-
L2xx
1
DI Contact 16 CH
(900G01-0202)
900TEK-
0200
900TBK-
0200
900RTS-
0001
900RTC-
L2xx
1
RTP Dimension
See the following figures for the RTP dimension when you are installing:

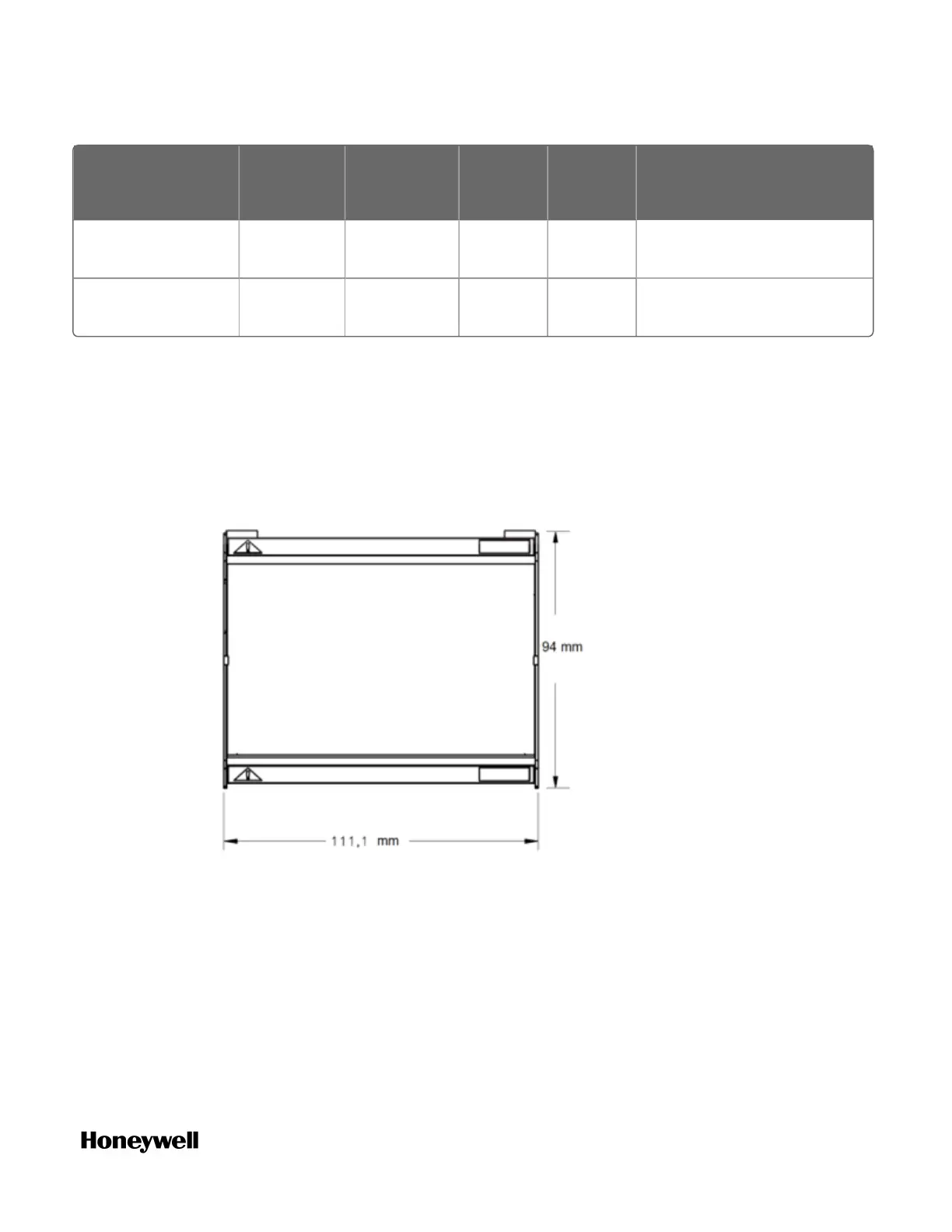

Figure A-1: Front View Dimension of RTP
Figure A-2: Side View Dimension of RTP
187
