Relay Output Module Wiring
The Relay Output Module provides eight individually isolated,
electromechanical relay outputs. Four of the outputs are Form-C, and
the other four are Form-A. A schematic showing the relationship of
individual Form-A relays and Form-C relays to external (user)
connections is given below.
Examples of Relay Output wiring as they relate to connections on the
Terminal Block are shown below.

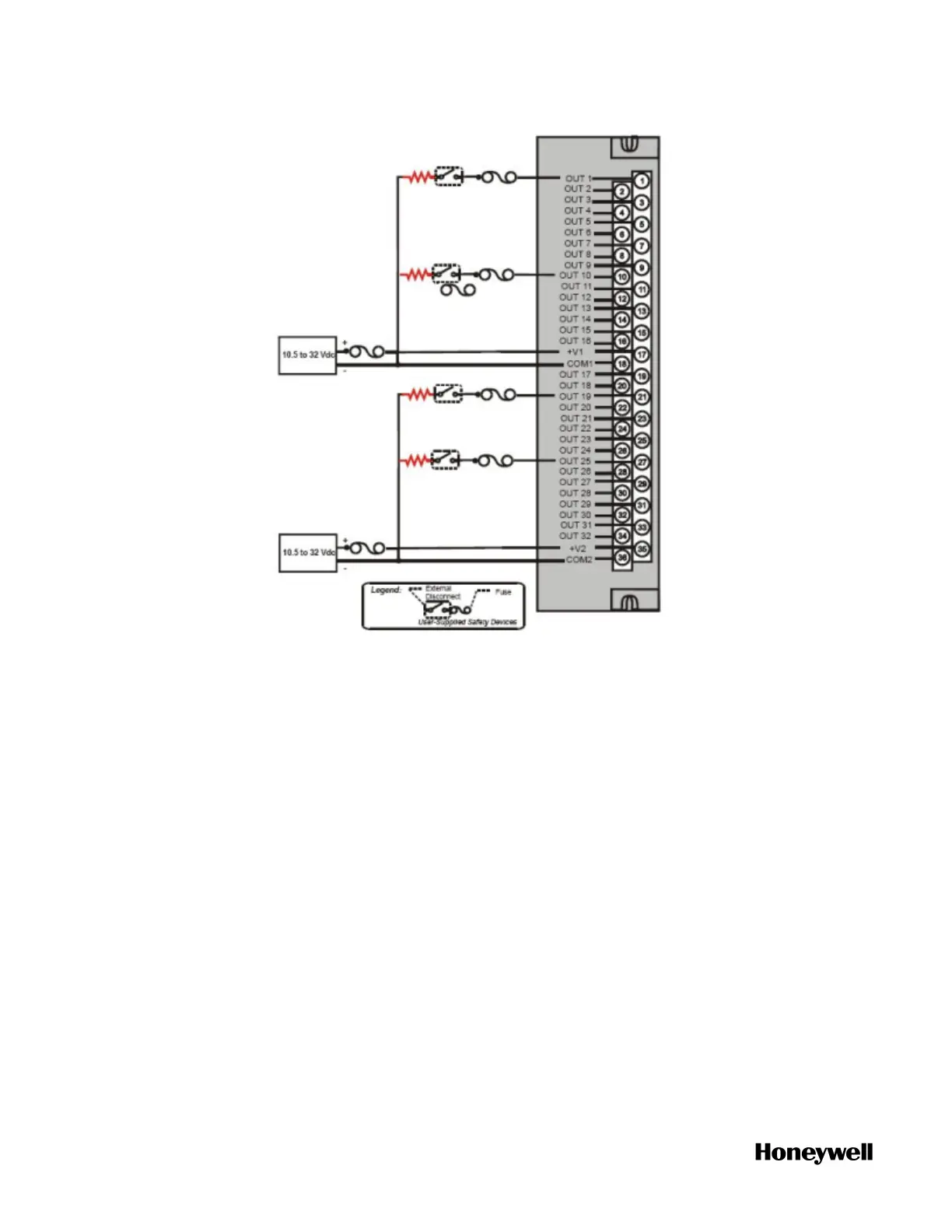

Figure 5-42: Schematic Example: Relay Output and External Wiring
132
