Appendix A - Installing RTP
Securing the RTP to the DIN rail
1. Secure mounting screws at each end of the mounting rail with additional
screws approx. every 8"(203mm) to prevent the rail from twisting.

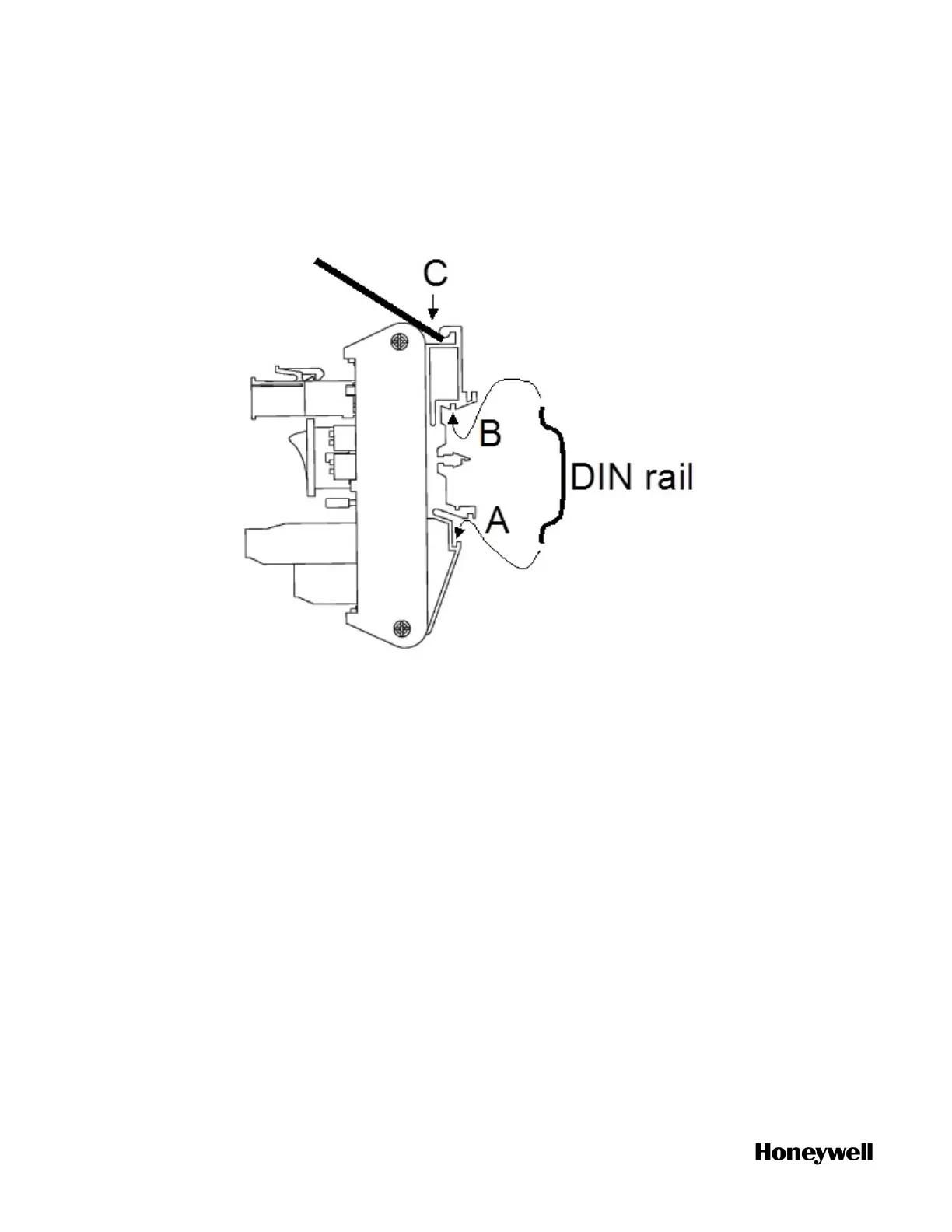

2. Insert one side of the DIN rail at position A, as shown below.
3. Insert the other side of DIN rail at position B, and push gently to snap the DIN
rail.
4. To remove the DIN rail, use a slot screwdriver to lift the clip at position C
gently (the plastic is fragile) to disengage the DIN rail at position B. Lift the
plastic clip up and over the rail, then disengage at position A.
