in REMOTE position, the operating modes can be configured in the
Configuration tool.
For more information for the operating modes, see “Selecting
operating modes” in ControlEdge Builder User’s Guide.
ATTENTION: For redundant controller system, the position of
mode switch in primary PLC-CPM in this box determines the
system operating mode. If the mode switches on the primary
and secondary CPMs are in different positions, the system will
drop sync. Do not rotate the Mode switch when the CPM is
powered unless the area is known to be non-hazardous.
PLC-CPM Rotary Switch

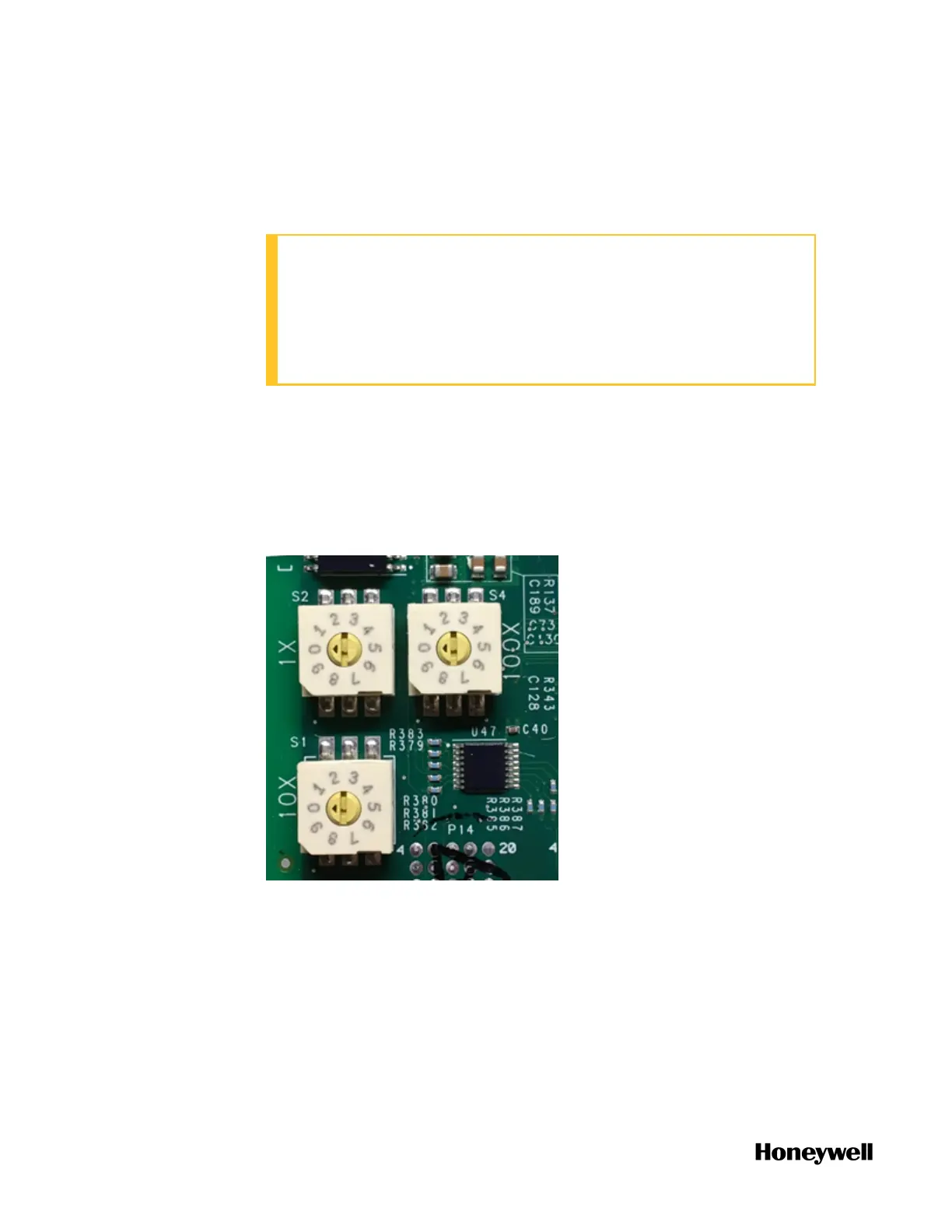

PLC CPM system does not utilize the Rotary switches. They are set to
zero as indicated in the picture.
Figure 3-5: Control Processor Module
