AWG
No.
Diameter
inches
Type
K
Type
J
Type T
Type
E
Type S
Pt/
PT110
Type R
Pt/
PT113
Type
W5/
W26
Type
W/
W26
30 0.0100 5.984 3.551 3.043 7.169 1.85 1.91 2.38 2.03
Table values are shown as a reference only; actual values may vary. Consult
manufacturer specifications.
Isolation
This module has eight inputs, which are isolated except for RTD
current sources.
RTD Inputs
RTD inputs share current sources (two RTD inputs per source), as
shown below:

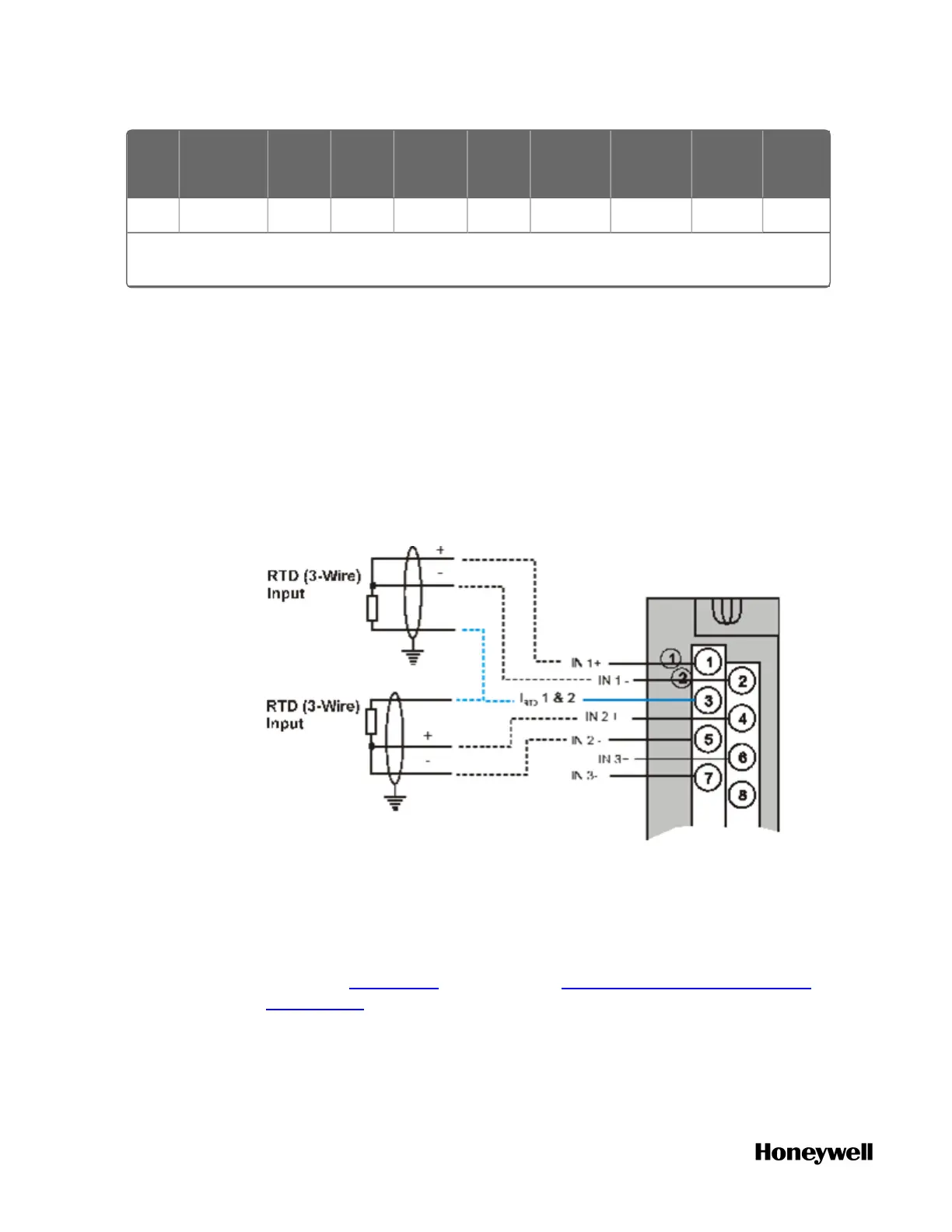

Figure 5-30: RTD Inputs
For example, the current source for the RTD input at channel one
(terminals 1 and 2) is terminal 3 (IRTD 1 & 2). This same current
source (IRTD 1 & 2) is also used for an RTD input at channel two
(terminals 4 and 5).
Figure on RTD Inputs and Figure on Universal Analog Input Module
(UAI) Wiring shows the examples of RTD input wiring (2-wire and 3-
wire RTDs). Four-wire RTD inputs are not available.
122
