Contact Rating
Maximum current/output: 4A at 250Vac/30Vdc with resistive load
Maximum current per module: No de-rating per module, but ensure
compliance with maximum ratings for each output.
TIP: specified relay life is 1,000,000 cycles. For applications
requiring constant cycling of output, Honeywell recommends
using a solid state AC or DC output module.
Required Output Fusing
Outputs are not fused in the Relay module. Install a fuse for each
output at the field device that is appropriate for the load and the wire
used.

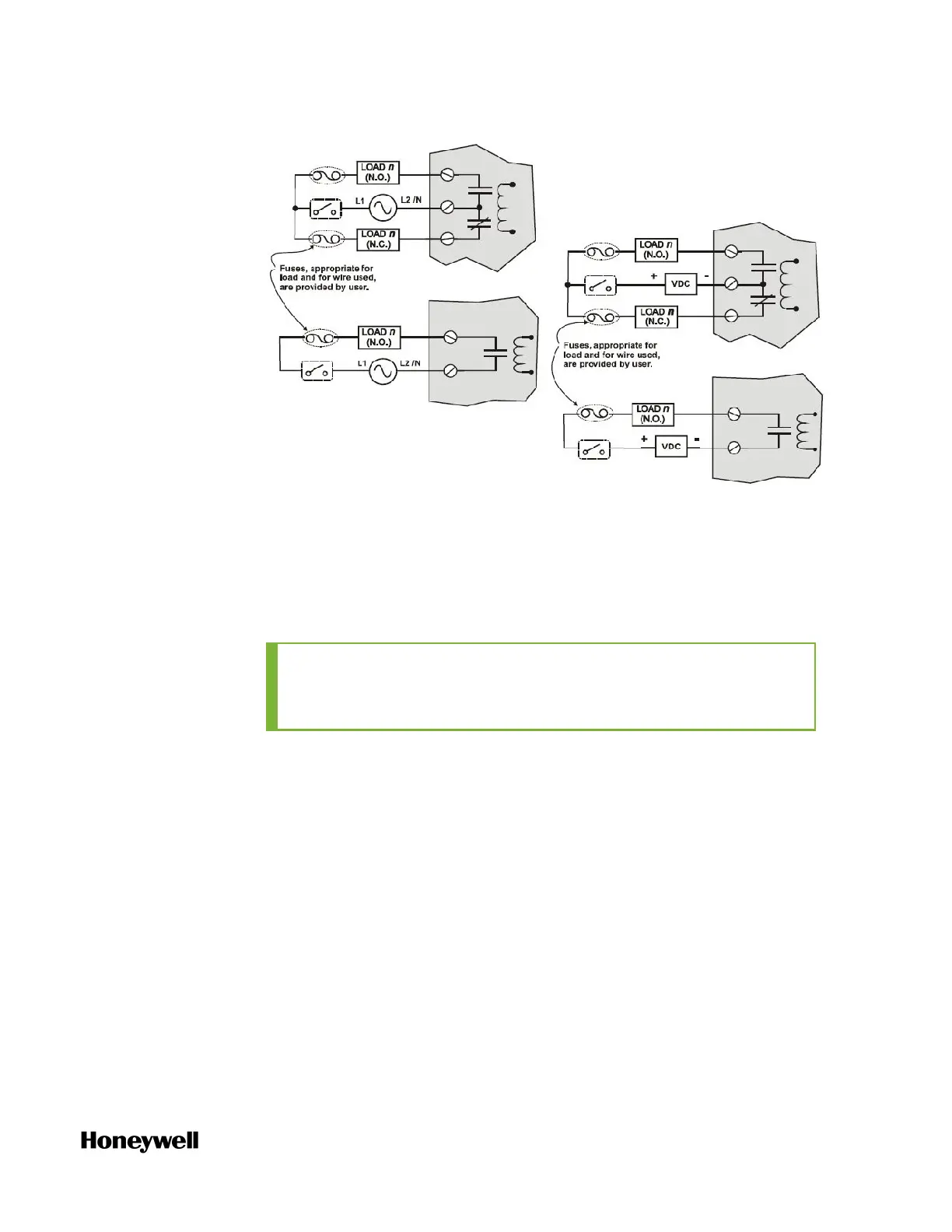

Jumper Comb
A ten-position jumper comb, available for the AC Output Module, can
be cut in half and used as shown below to reduce the number of wires
required to connect the Relay Output Module to AC Neutral or to DC
Common.
