Appendix A - Installing RTP
Using an RTP to field wiring Relay Output
ATTENTION: RTP and cables are intended for permanent installation within
their own enclosure.
To wire the 8 Channel Relay Output using an RTP:

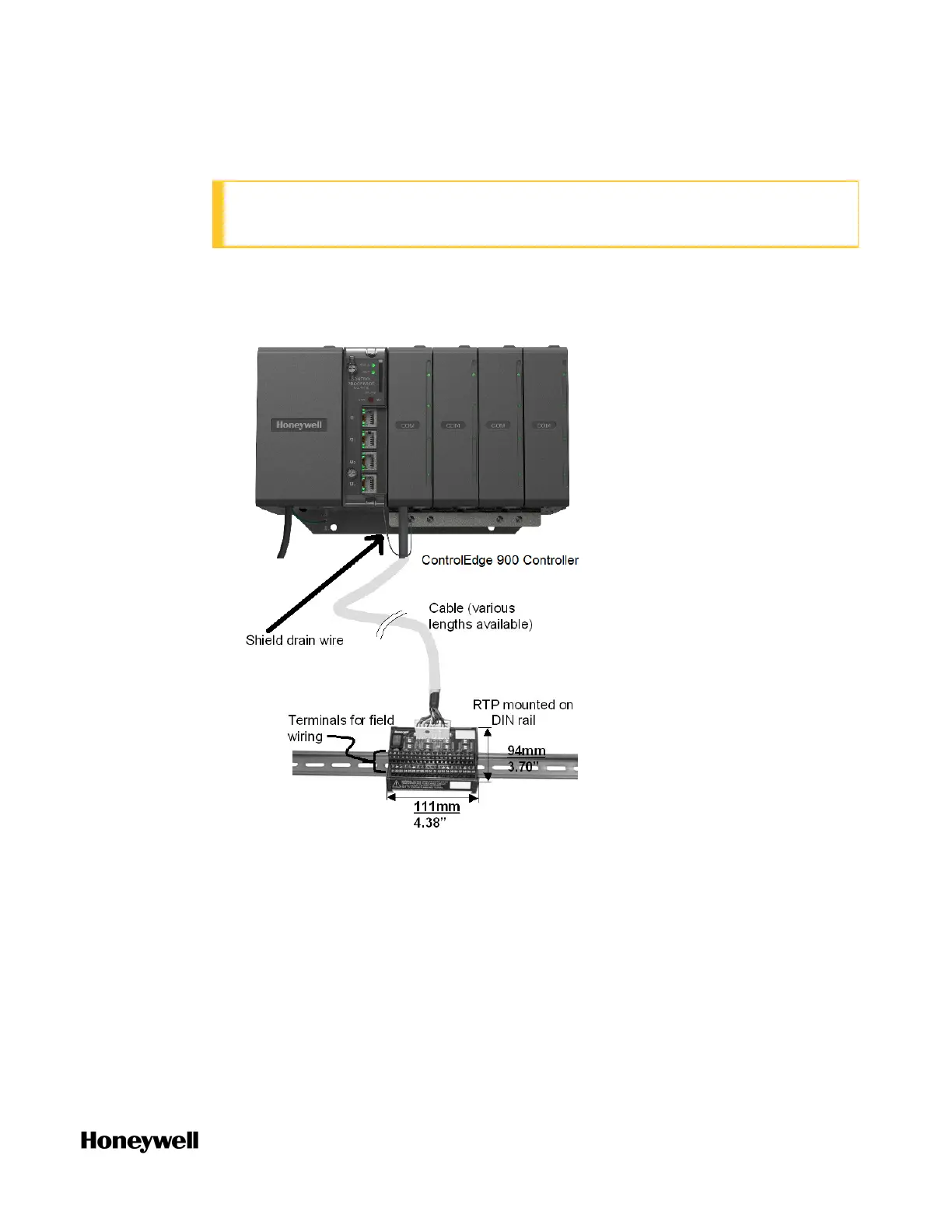

1. Mount the RTP cable assembly to ControlEdge 900 Controller. See the
following figure for the example installation diagram.
a. Remove the relevant key tabs from the terminal block to allow connection
with the module.
b. Connect the appropriate cable to the module at ControlEdge 900
Controller. Possible options are:
l 900RTC-H210 Remote Termination High Voltage Cable Assembly, 1.0
meters long
l 900RTC-H225 Remote Termination High Voltage Cable Assembly, 2.5
meters long
217
