required) to connect the high-current loads to every other
output - for example, outputs 1, 3, 5, 7 or 2, 4, 6, 8. This
distributes heat more evenly across the heat sink.
Jumper Comb
A ten-position jumper comb is available for inter-connecting all L1
(Hot) terminals (1, 3, 5, 7, 9, 11, 13, 15, 17, 19). See AC Output Module
Jumper section.
Replaceable Fuses
Each output circuit on the AC Output Module includes a (plug-in)
replaceable fuse.
Replacement fuse is from Wickmann, part #3741315041. This is a
3.15 Amp time lag fuse with UL/CSA approval for 250 V AC.

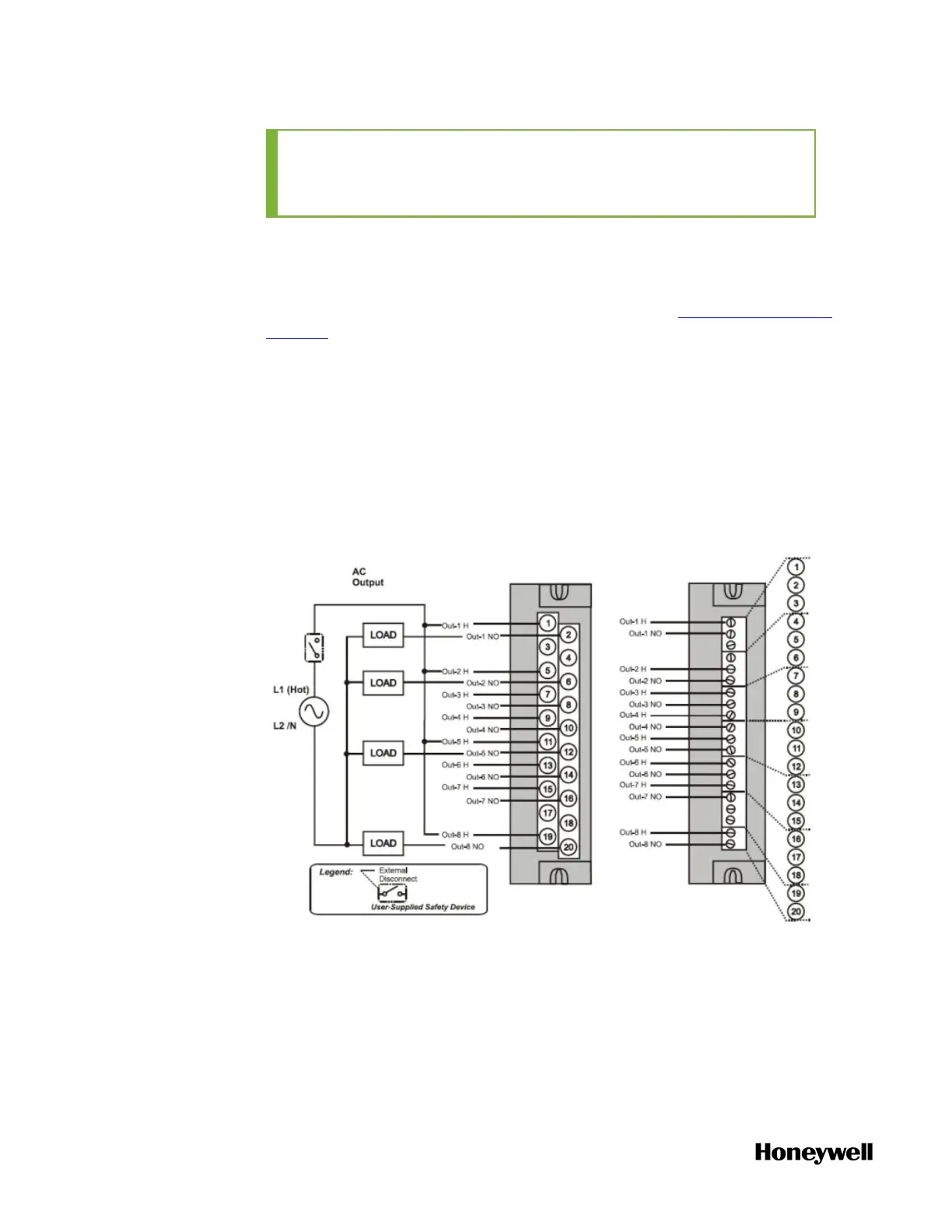

Figure 5-39: AC Output Module Wiring Diagram
Figure 5-40: AC Output Module Jumper
130
