Honeywell ControlEdge 900 platform User Manual

l Reverse polarity protection is limited to max of Field Supply
Voltage.
l Module I/O configuration and maximum power delivery by
I/Os, depends on number of channels, configuration Type and
the environment.
n 20 pin EURO style terminal block
n 20 position Barrier style terminal block
n HART Support (AI and AO)
n RTP support. See "Installing RTP" on page185 for more
information.

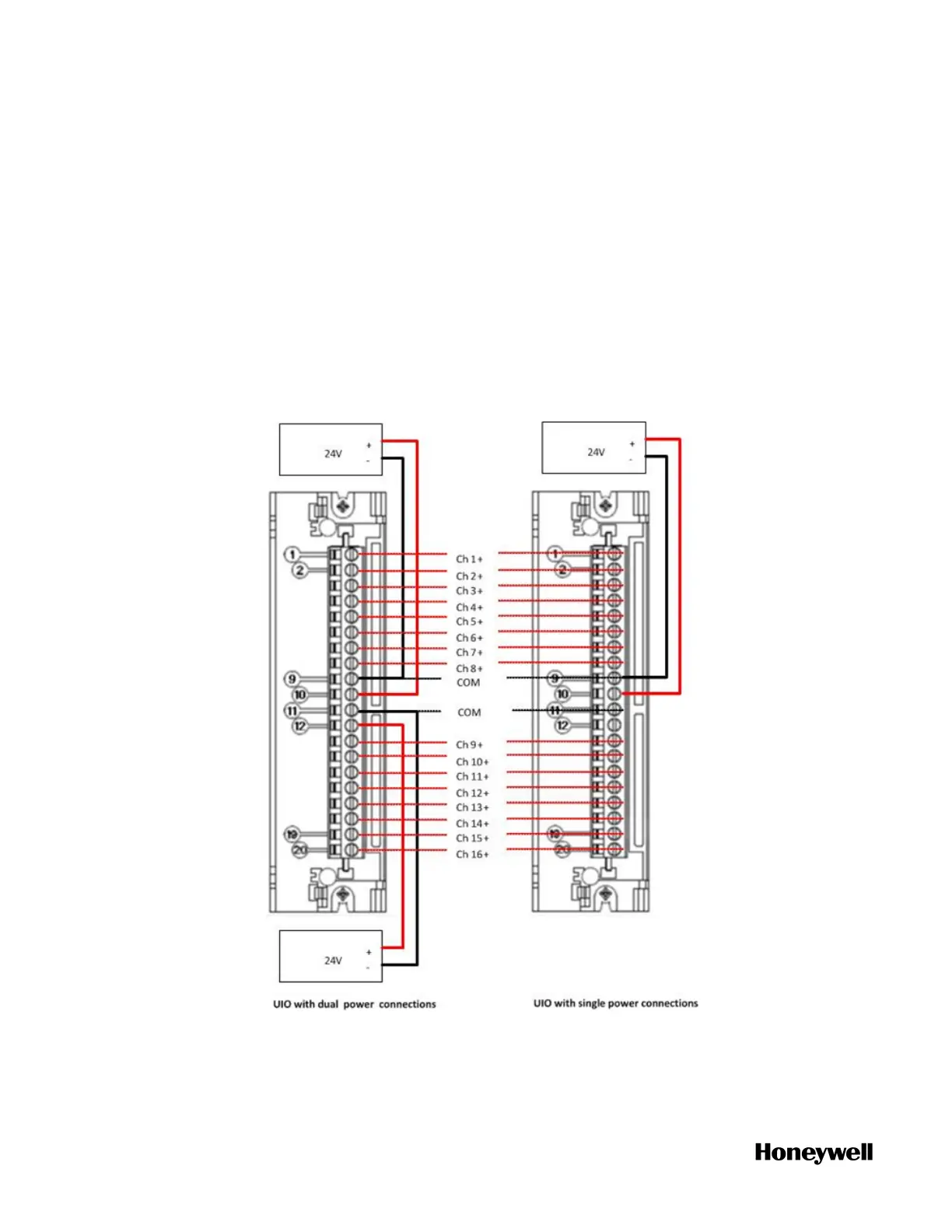

Figure 5-15: UIO module terminal block
90
