Honeywell ControlEdge 900 platform

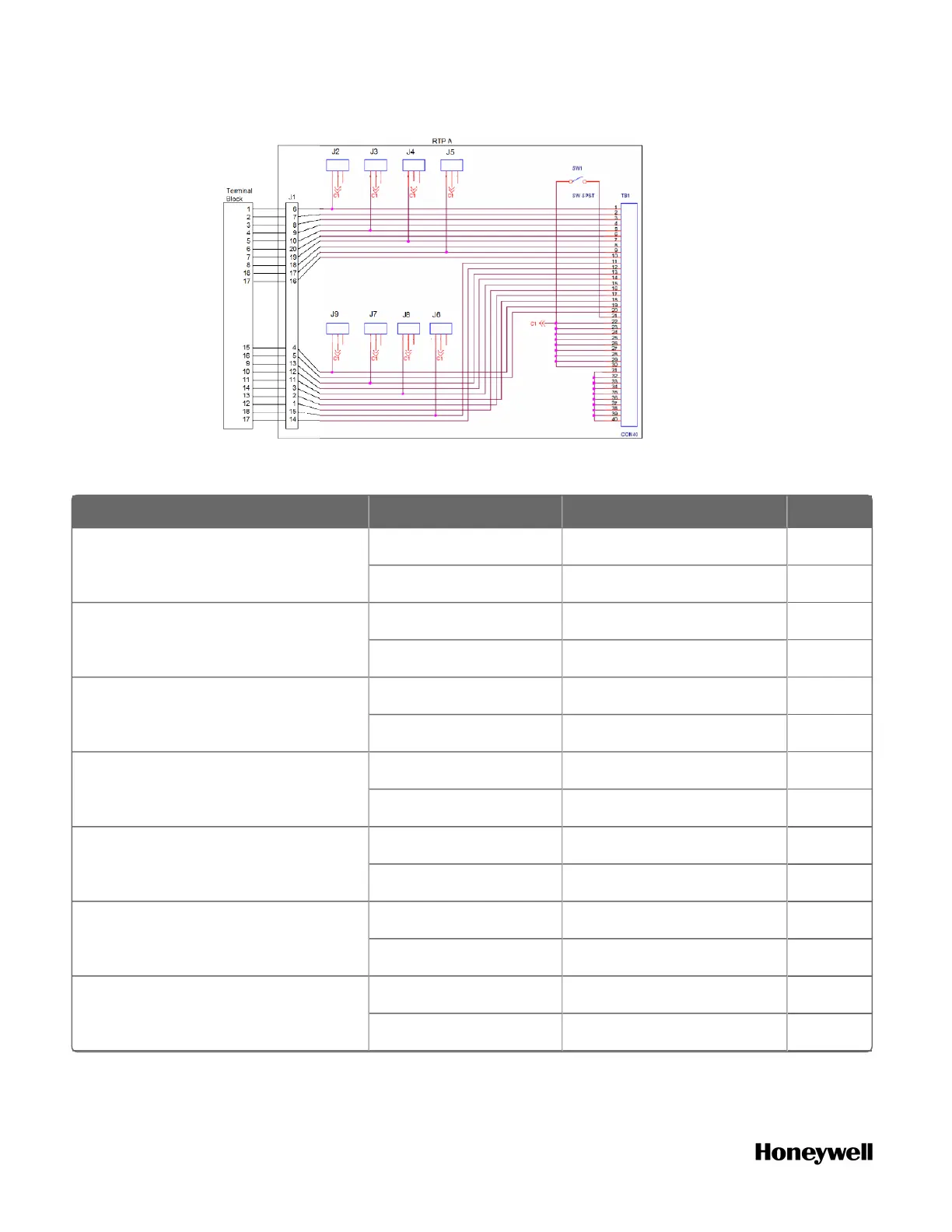

Appendix A - Installing RTP
Twisted Pair Number of Cable A Module TB Position RTP J1 Plug Connector Color
1 19 6 Black
20 7 Red
2 22 9 Black
23 10 White
3 24 20 Black
25 19 Green
4 36 17 Black
35 16 Blue
5 36 15 Black
35 14 Yellow
6 28 12 Black
29 11 Brown
7 30 1 Black
31 2 Orange
Table A-5: RTP B Cable wire positions and colors (Applies to 16 AI, 32 DI and 32 DO)
224
