I/O Module Installation and Wiring - I/O Terminal Block Wiring Diagrams
Revision 19 HC900 Process Controller Installation and User Guide 91
06/14
OUT 3+
OUT 4+
OUT 5+
OUT 6+
OUT 7+
OUT 8+
OUT 2+
OUT 3-
OUT 4-
OUT 5-
OUT 6-
OUT 7-
OUT 8-
OUT 2-
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
OUT 1+
OUT 1 -
+
-
24VDC+
24VDC-
+
-

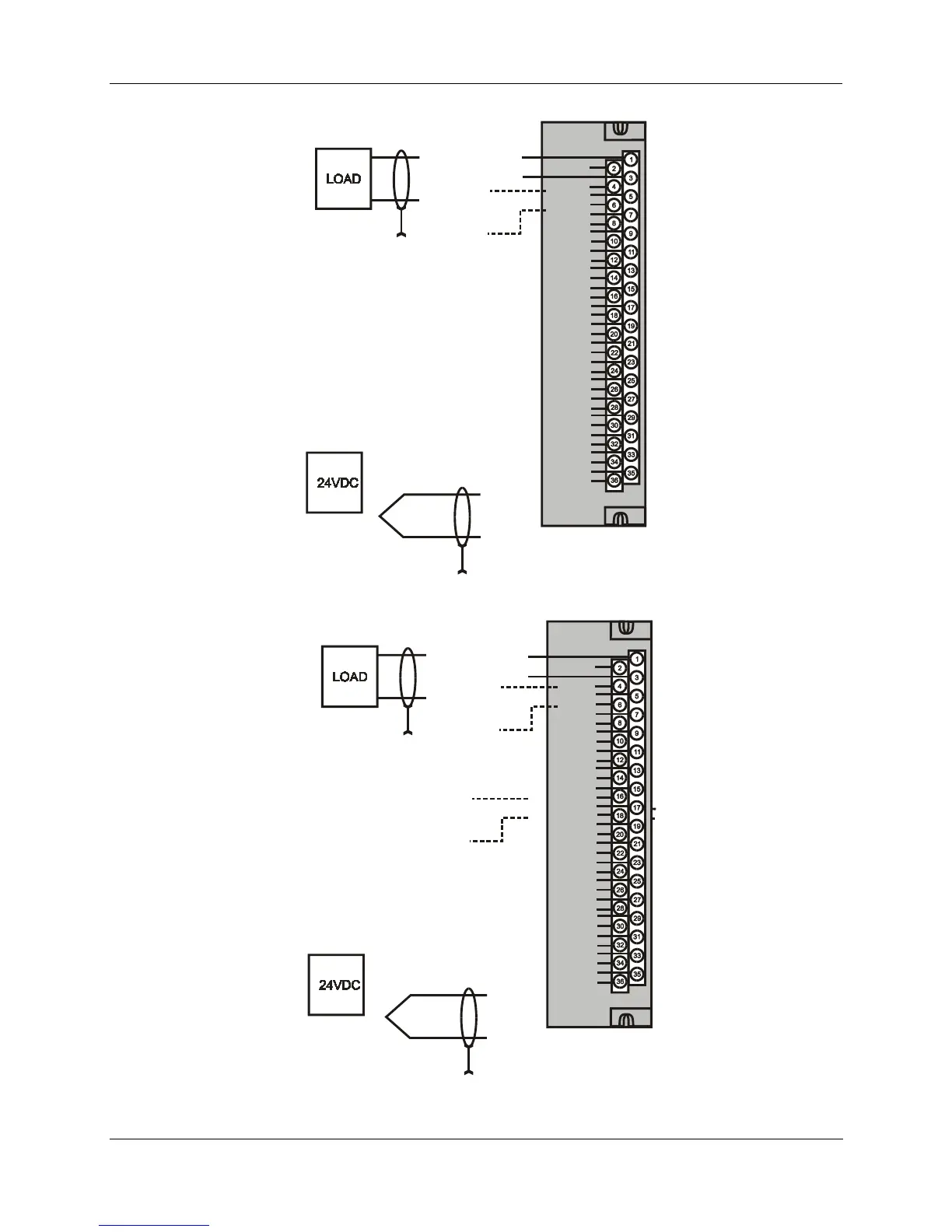

Figure 47 – 8 channel Analog Output Wiring Diagram
OUT 3+
OUT 4+
OUT 5+
OUT 6+
OUT 7+
OUT 8+
OUT 9+
OUT 10+
OUT 12+
OUT 13+
OUT 14+
OUT 11+
OUT 15+
OUT 2+
OUT 16+
OUT 3-
OUT 4-
OUT 5-
OUT 6-
OUT 7-
OUT 8-
OUT 9-
OUT 10-
OUT 12-
OUT 13-
OUT 14-
OUT 11-
OUT 15-
OUT 2-
OUT 16-
NC
NC
OUT 1+
OUT 1 -
+
-
24VDC+
24VDC-
+
-
Figure 48 – 16 channel Analog Output Wiring Diagram

Honeywell HC900 Specifications

General

Series	HC900
Redundancy	Optional
Programming Language	Function Block Diagram, Ladder Logic, Structured Text
Inputs	Analog, Digital
Outputs	Analog, Digital, Relay
Display	Optional
Control	PID, Advanced Control
Power Supply	24V DC or 100-240V AC
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% non-condensing
Communication Protocols	Modbus, Ethernet
