I/O Module Installation and Wiring - I/O Terminal Block Wiring Diagrams
Revision 19 HC900 Process Controller Installation and User Guide 113
06/14

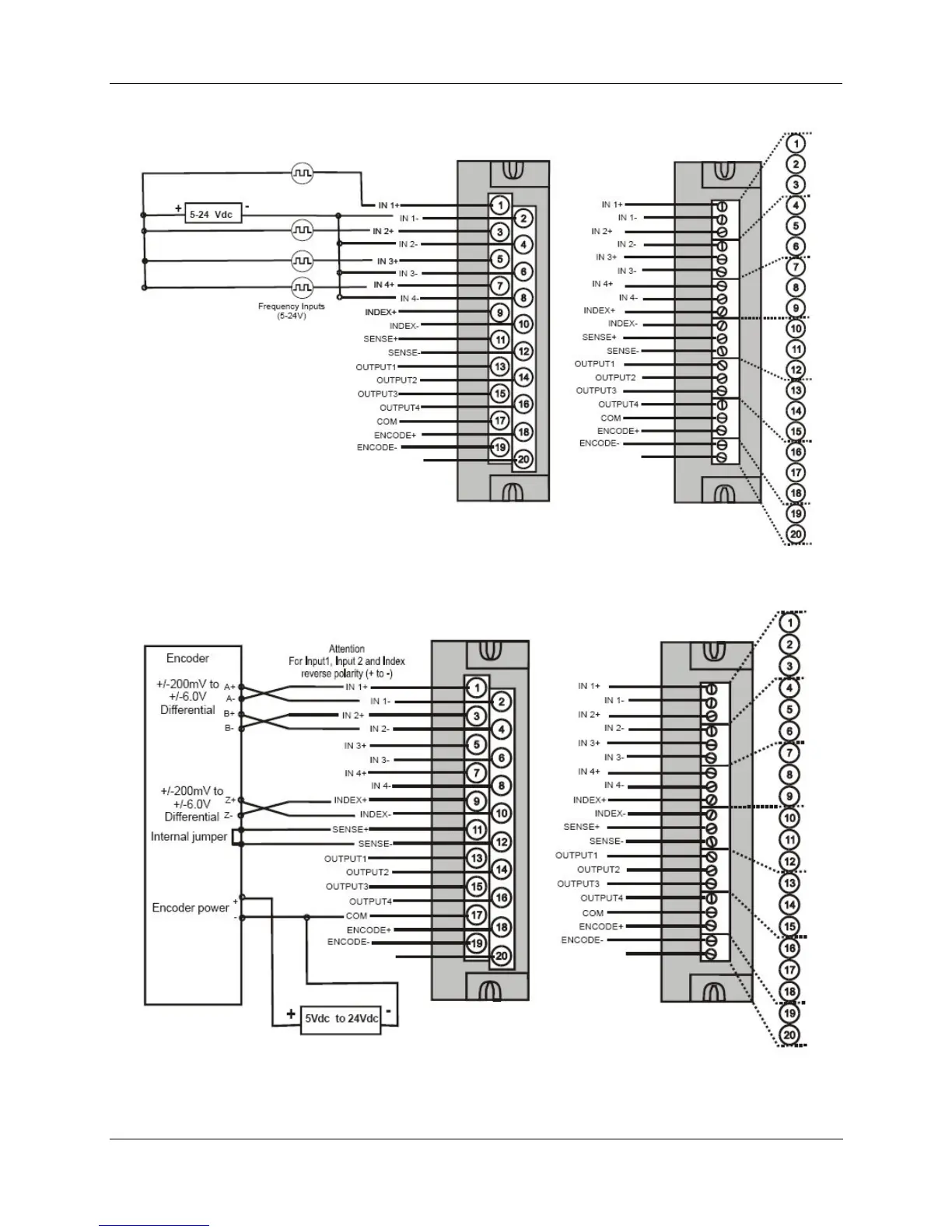

Figure 66 – Frequency Wiring
Figure 67 – Quadrature, Differential, External Power Wiring
