Pre-Installation Planning - Remote Termination Panels
Revision 19 HC900 Process Controller Installation and User Guide 41
06/14

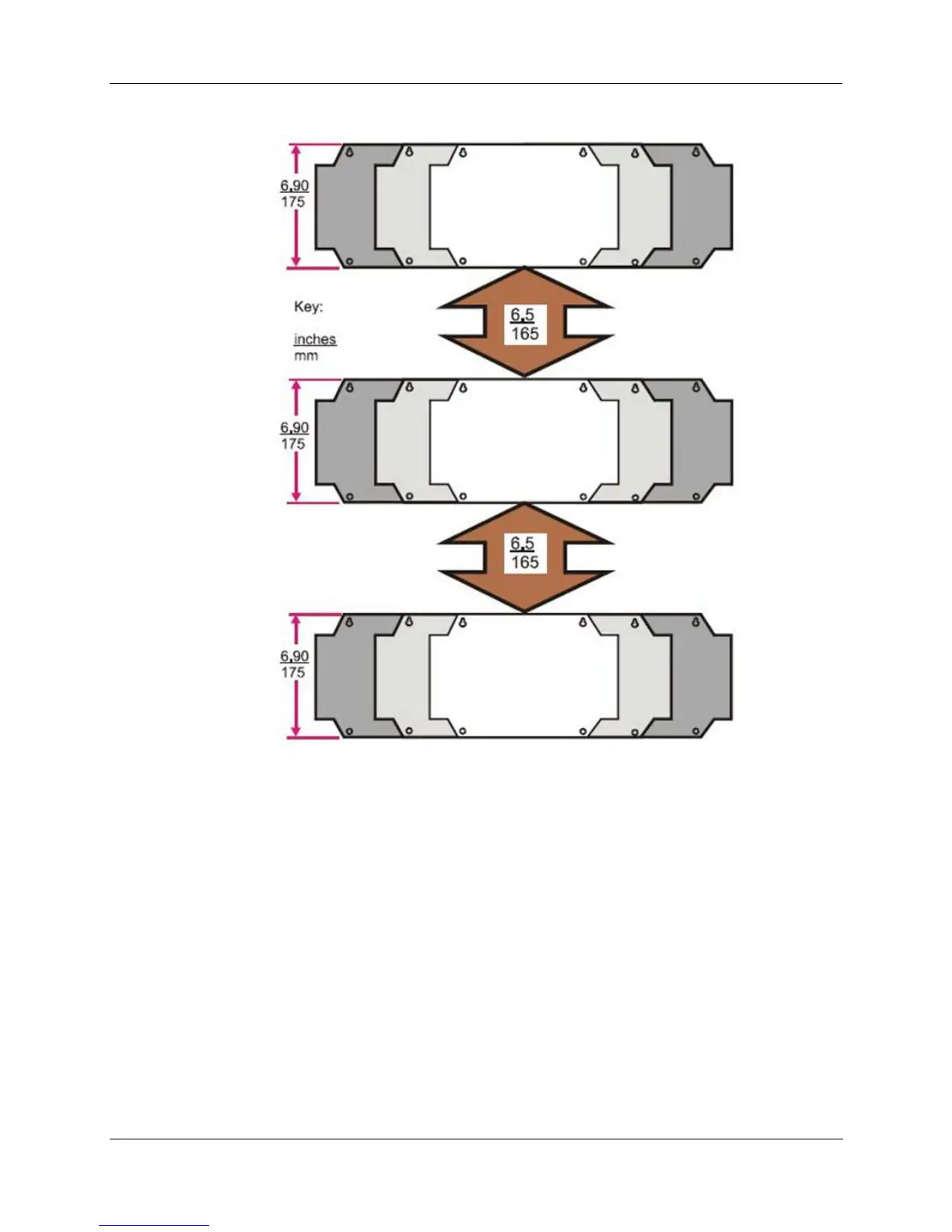

Figure 26 – Vertical Spacing of Racks (all models)
Remote Termination Panels
If your controller will be mounted in a separate panel with intermediate terminations between field wiring
and controller wiring, consider using RTPs to replace the intermediate terminations. Pre-wired cable
assemblies for the RTPs eliminate the need for separate wiring terminations between the controller and the
intermediate terminal boards. For details see page 207.
