Honeywell HC900 - Figure 51 - 32 Point DC Input Module Wiring

I/O Module Installation and Wiring - I/O Terminal Block Wiring Diagrams
Revision 19 HC900 Process Controller Installation and User Guide 95
06/14
32 point DC Input Module Wiring
The 32-point DC Digital Input module (Figure 51) provides two groups of 16 inputs, each with a pair of
terminals for connection to common. DC power applied between the common terminal and an input cause
the input to turn ON. A green LED on the module provides indication of an ON state. Logic in the
controller allows the state to be inverted when necessary.
Requires Low Voltage Euro style 36-terminal terminal block.

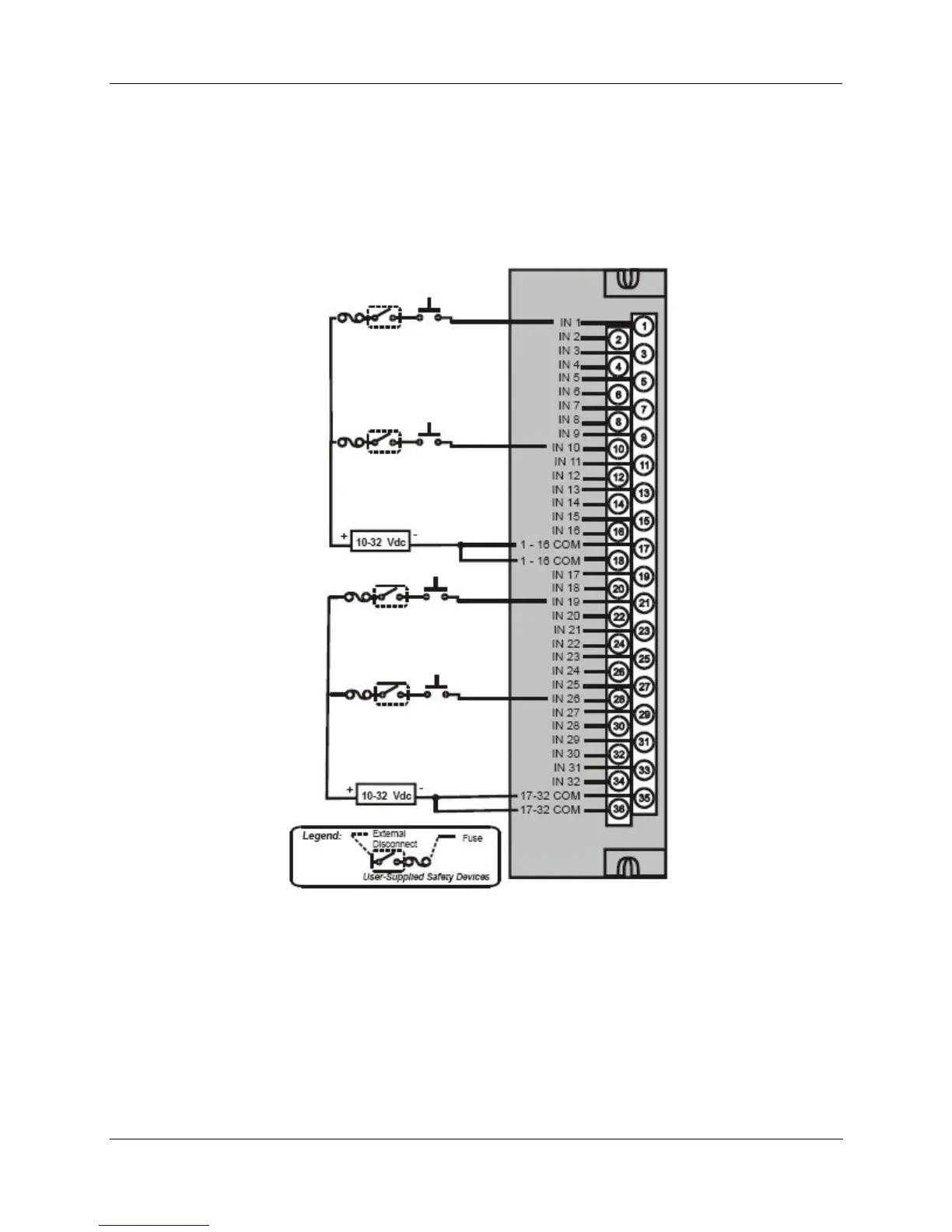

Figure 51 – 32 point DC Input Module Wiring
AC Input Module Wiring
The AC Input Module has sixteen inputs. An example of AC Input Module wiring is shown in Figure 52.
Specifications for this module and for other modules are given in the Specifications section of this manual.
