I/O Module Installation and Wiring - I/O Terminal Block Wiring Diagrams
Revision 19 HC900 Process Controller Installation and User Guide 87
06/14
Resistance Temperature Device Inputs

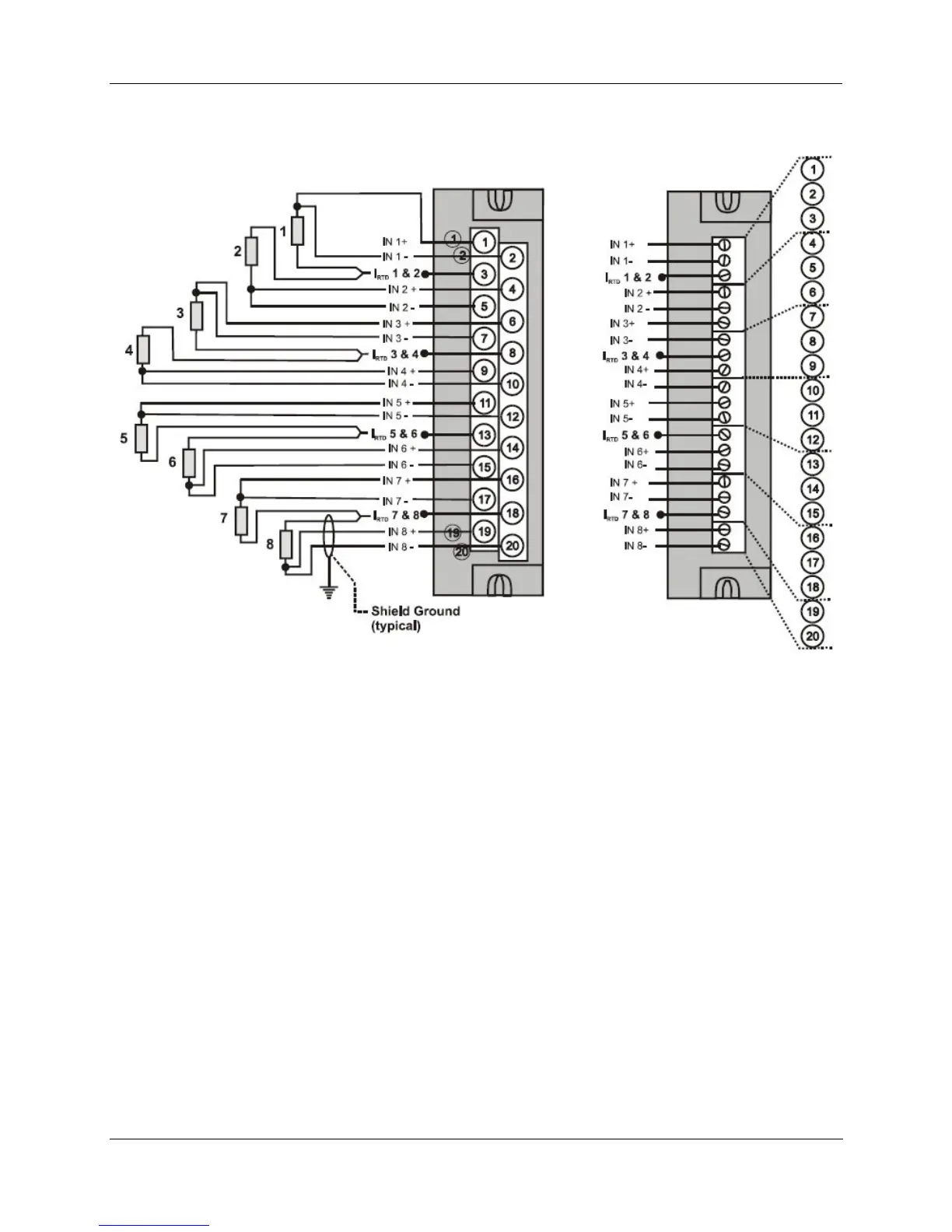

Figure 43 – Analog Input Wiring - Eight RTDs
