Honeywell HC900 User Manual

Pre-Installation Planning - DC Power Supply
Revision 19 HC900 Process Controller Installation and User Guide 39
06/14
DC Power Supply
The P24 DC power supply is for use with +24V input power applications. The wattage rating is the same as
the P01.
Rack Orientation and Mounting
Racks must be mounted as indicated in illustrations throughout this manual, so as to provide for vertical
airflow through the racks. That is, racks must never be mounted vertically, and must never be mounted
with the backplane horizontal (for example, flat on a horizontal panel or tabletop). Environmental
specifications apply only to the normal mounting configuration.
Rack dimensions, including overall dimensions and patterns for drilling holes for mounting, are given in
Figure 24 and Figure 25. Vertical spacing of racks, which is required for rack ventilation and for routing
wires, is shown in Figure 26.

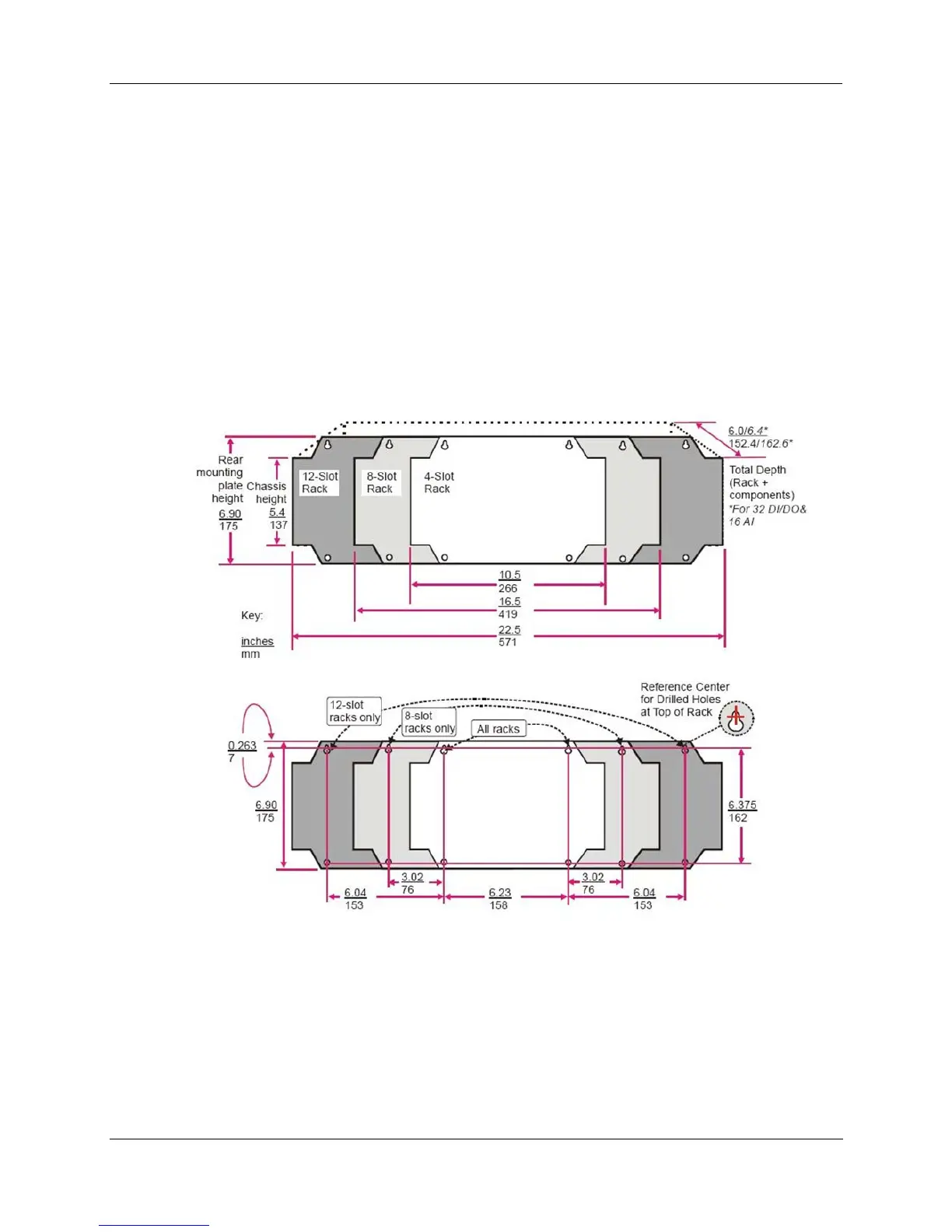

Figure 24 – Rack Dimensions (C30 and C50)

Honeywell HC900 Specifications

General

Series	HC900
Redundancy	Optional
Programming Language	Function Block Diagram, Ladder Logic, Structured Text
Inputs	Analog, Digital
Outputs	Analog, Digital, Relay
Display	Optional
Control	PID, Advanced Control
Power Supply	24V DC or 100-240V AC
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% non-condensing
Communication Protocols	Modbus, Ethernet
