Honeywell HC900 - Figure 68 - Quadrature, Single Ended, External Power Wiring; Figure 69 - Quadrature, Differential, HC900 Power Wiring

I/O Module Installation and Wiring - I/O Terminal Block Wiring Diagrams
114 HC900 Process Controller Installation and User Guide Revision 19
06/14

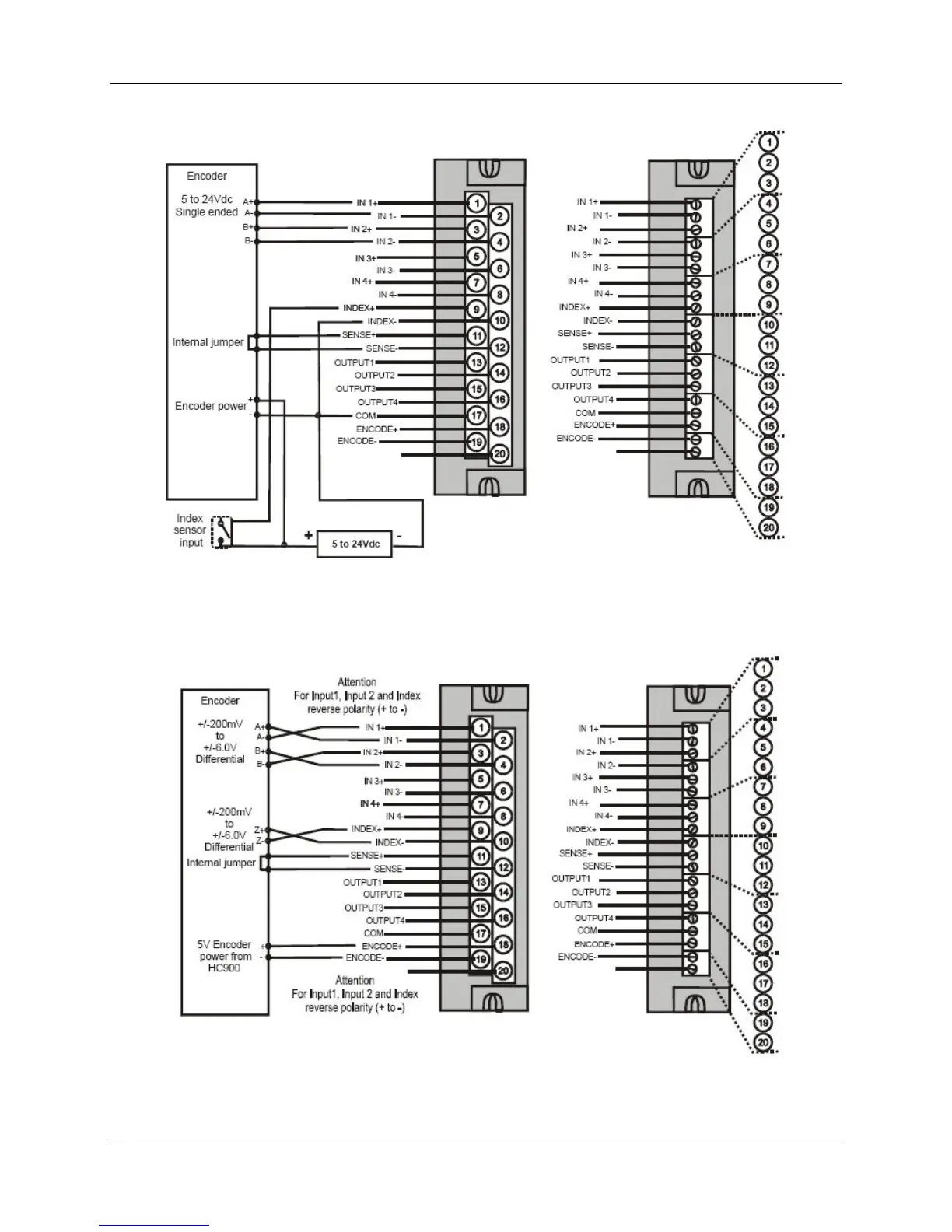

Figure 68 – Quadrature, Single Ended, External Power Wiring
Figure 69 – Quadrature, Differential, HC900 Power Wiring
