Revision 19 HC900 Process Controller Installation and User Guide 183
06/14
Analog Output Calibration
Analog output modules have essentially one output type.

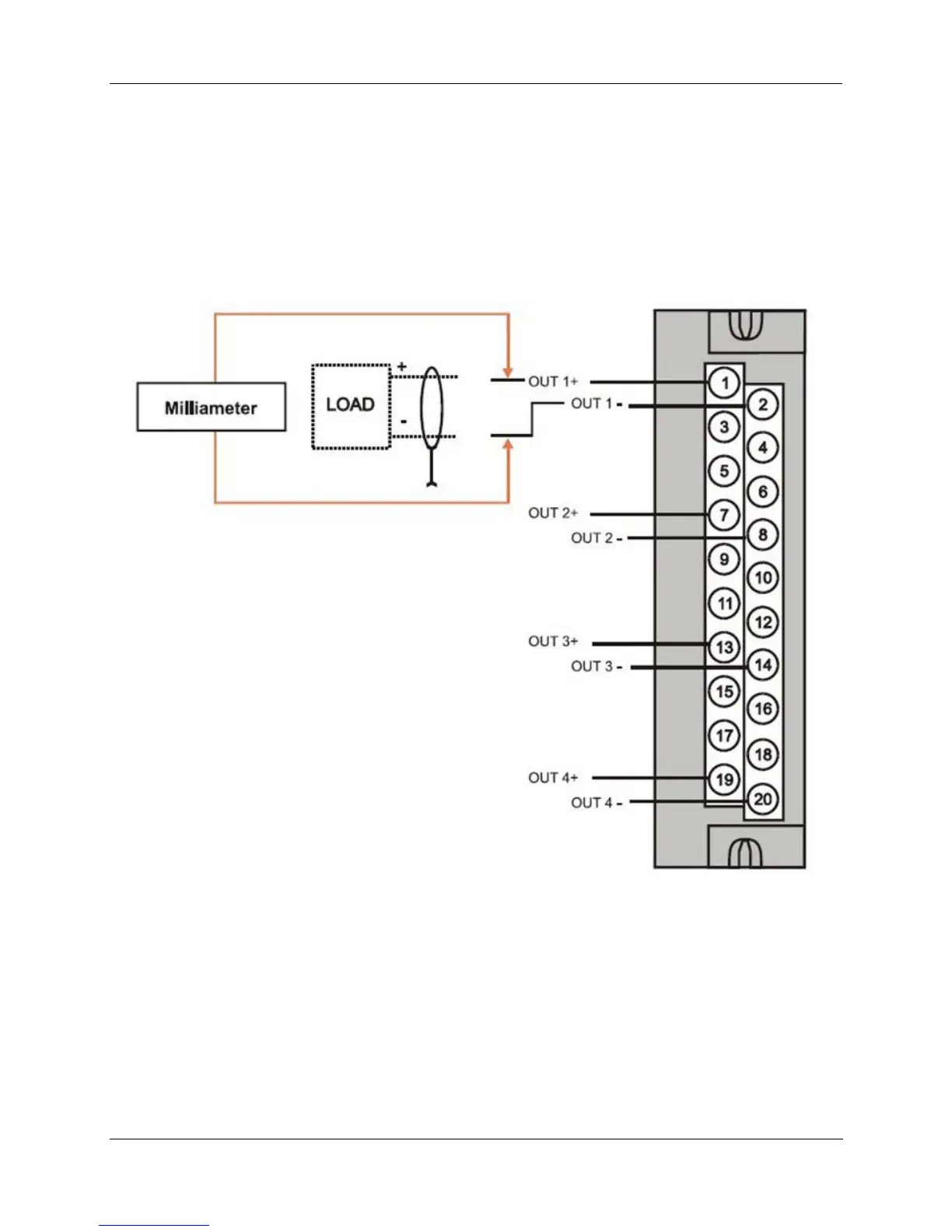

A diagram of a precision ammeter connected to the terminals of a 4-channel Analog Output module is
given in Figure 89. The specifications of the meter must be consistent with calibration requirements.
See page 91 for terminal connections for 8 and 16 channel AO.
Figure 89 – Terminal board Connections for AO Calibration

Honeywell HC900 Specifications

General

Series	HC900
Redundancy	Optional
Programming Language	Function Block Diagram, Ladder Logic, Structured Text
Inputs	Analog, Digital
Outputs	Analog, Digital, Relay
Display	Optional
Control	PID, Advanced Control
Power Supply	24V DC or 100-240V AC
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% non-condensing
Communication Protocols	Modbus, Ethernet
