Communications Installation - Connecting the HC900 Controller to Modbus device(s)
Revision 19 HC900 Process Controller Installation and User Guide 143
06/14
.

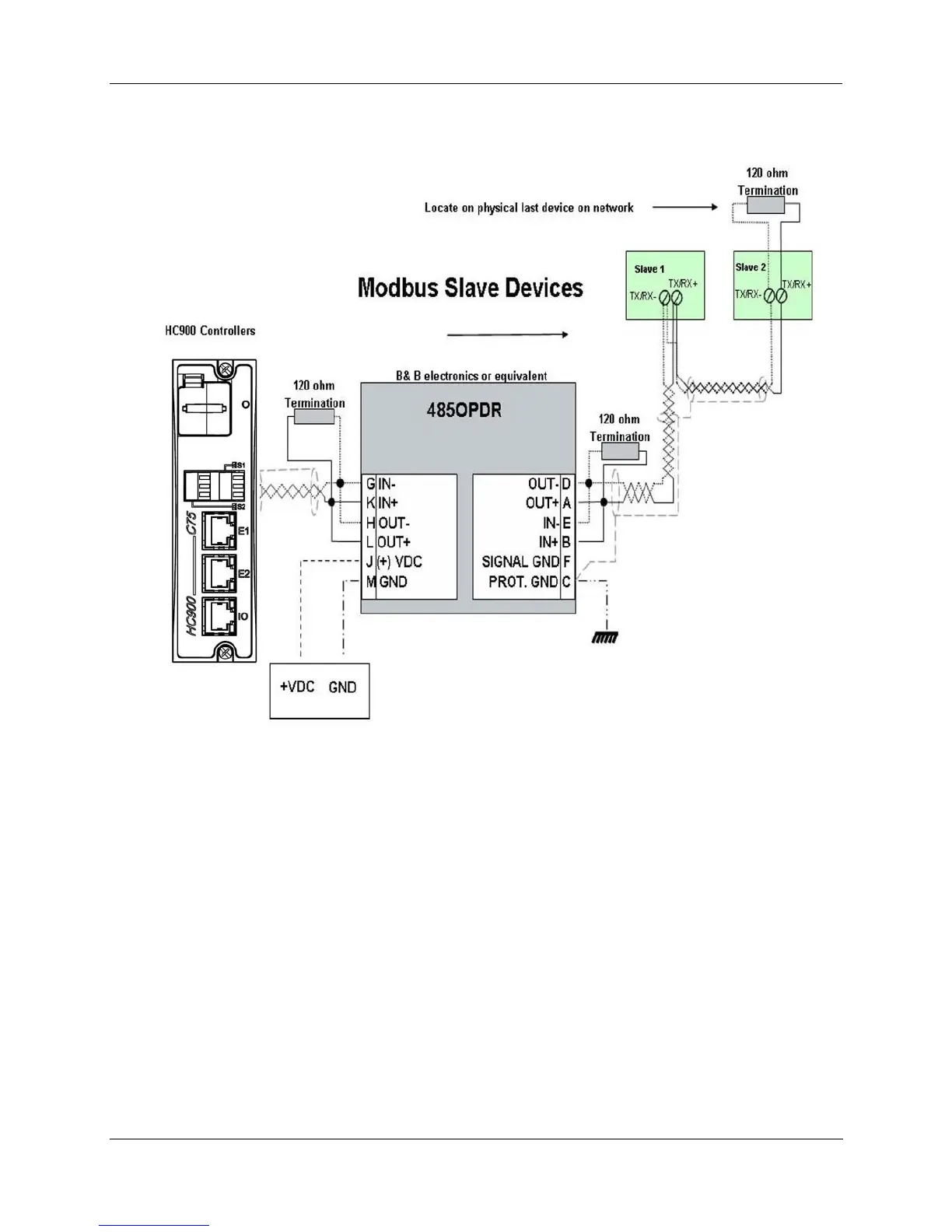

Figure 77 - RS-485 Modbus slave wiring with isolation
For XYR 5000 base stations, if the RS-485 network is intermittent or fails completely over short durations
and recovers after the controller is power cycled, the need for additional port biasing may be required.
