Rack Installation - Assemble Controller Rack
60 HC900 Process Controller Installation and User Guide Revision 19
06/14
Assemble Controller Rack
C30/C50/C70 Controller Rack assembly information is given in Table 9.
C75 Controller Rack assembly information is given in Table 10.

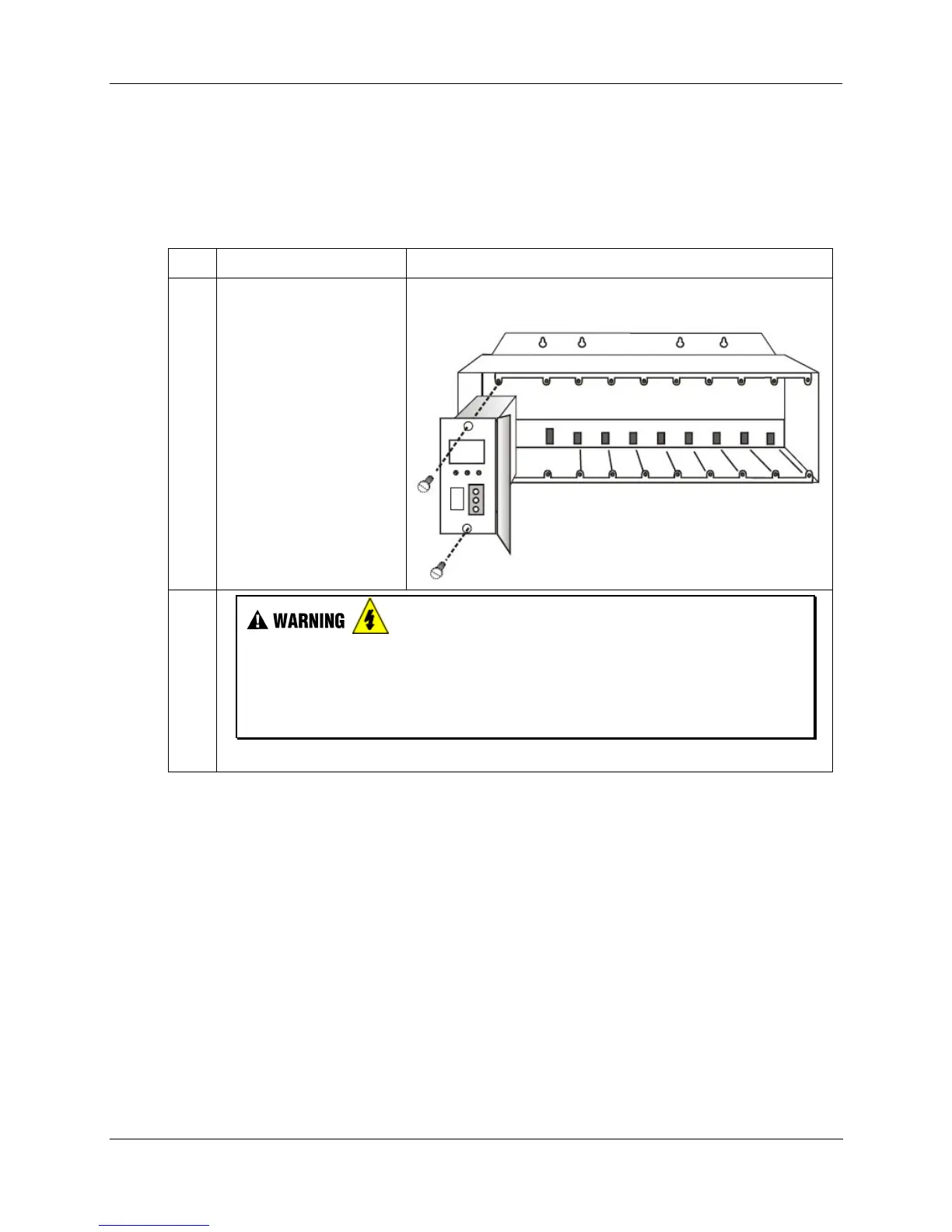

Table 9 – Assemble C30/C50/C70 Controller Rack
Step Procedure Comments/References
1
Carefully place the Power
Supply in the leftmost slot
in the Rack, ensuring that
the connector at the back
seats properly.
Insert a slot screwdriver in
the slots at the top and
bottom of the power
supply cover while pulling
backward to open the
cover.
Fasten the screws
(captured in the face of the
power supply) into the
tabs at top and bottom of
the rack.
2
Hazardous Voltage
• Ensure that wiring to the Power Supply is disconnected from the site AC source before
installing wiring.
• Do not remove Yellow/Green wire from grounding stud on the power supply.
Failure to comply with these instructions could result in death or serious injury.
To Next Page
