Appendix - Installation of Remote Termination Panels (RTPs) - Analog Input/Digital Input/Digital Output/Analog
Output
Revision 19 HC900 Process Controller Installation and User Guide 245
06/14
Step Action

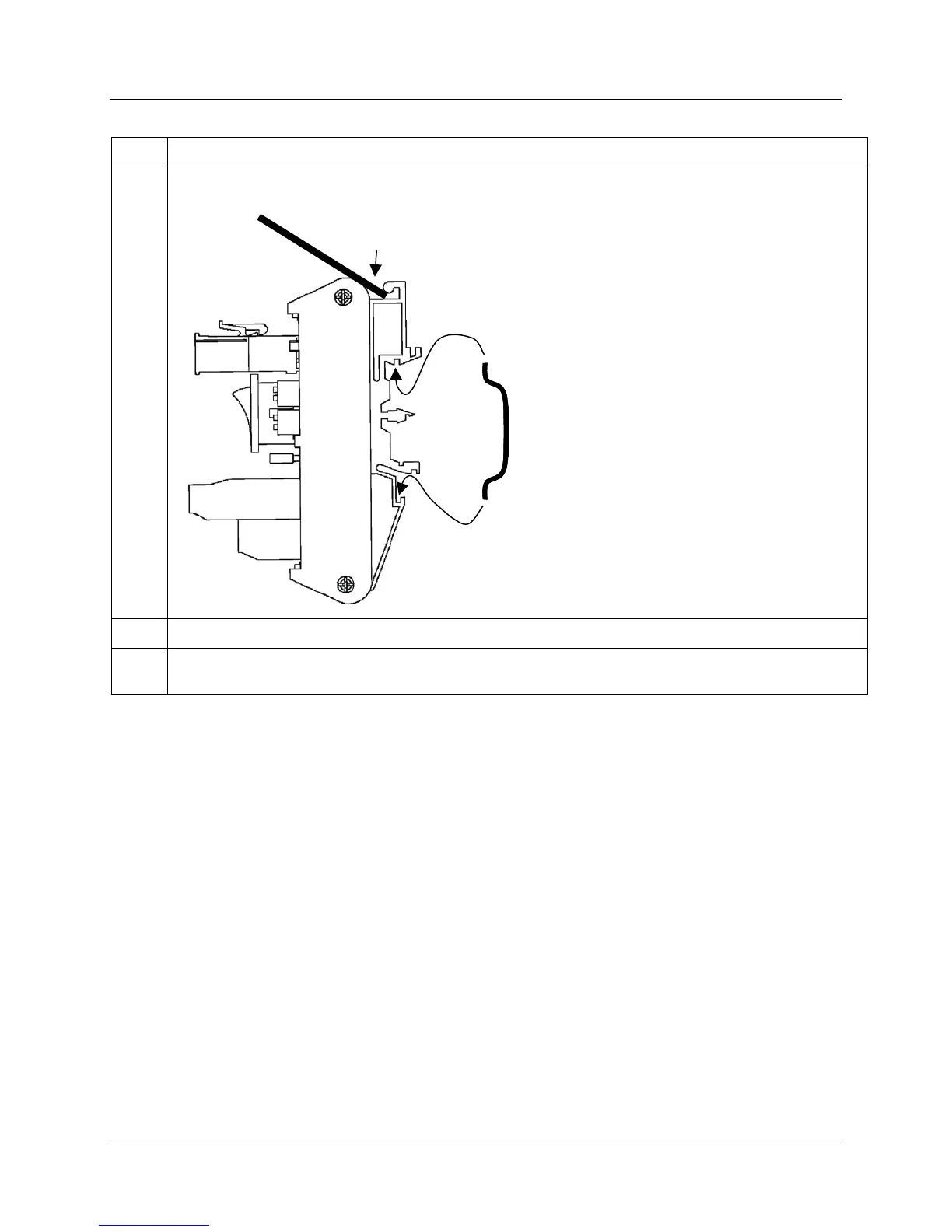

2 Insert one side of DIN rail at A.
3 Insert other side of DIN rail at B, and push B over the rail to snap into place.
4 To remove, using slot screwdriver to lift C up gently (plastic is fragile) to disengage at B. Lift up and over rail,
then disengage at A.
