d a
c b

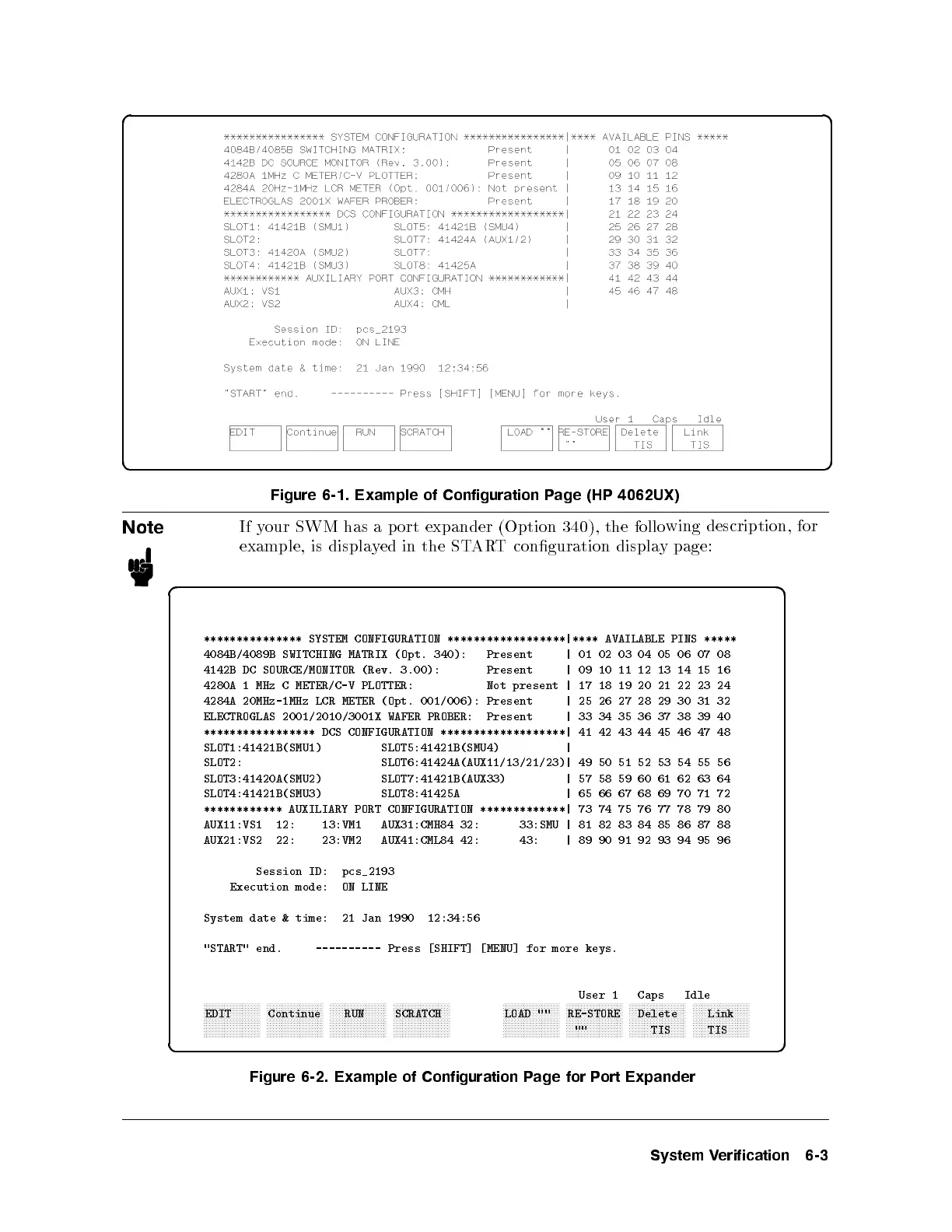

Figure 6-1. Example of Configuration Page (HP 4062UX)
Note
If your SWM has a p ort expander (Option 340), the follo
wing description, for
example, is displayed in the START conguration display page:
d a
c b
*************** SYSTEM CONFIGURATION ******************|**** AVAILABLE PINS *****
4084B/4089B SWITCHING MATRIX (Opt. 340): Present |0102030405060708
4142B DC SOURCE/MONITOR (Rev. 3.00): Present |0910111213141516
4280A 1 MHz C METER/C-V PLOTTER: Not present | 17 18 19 20 21 22 23 24
4284A 20MHz-1MHz LCR METER (Opt. 001/006): Present |2526272829303132
ELECTROGLAS 2001/2010/3001X WAFER PROBER: Present | 3334353637383940
***************** DCS CONFIGURATION *******************| 41 42 43 44 45 46 47 48
SLOT1:41421B(SMU1) SLOT5:41421B(SMU4) |
SLOT2: SLOT6:41424A(AUX11/13/21/23)| 49 50 51 52 53 54 55 56
SLOT3:41420A(SMU2) SLOT7:41421B(AUX33) |5758596061626364
SLOT4:41421B(SMU3) SLOT8:41425A |6566676869707172
************ AUXILIARY PORT CONFIGURATION *************| 73 74 75 76 77 78 79 80
AUX11:VS1 12: 13:VM1 AUX31:CMH84 32: 33:SMU | 81 82 83 84 85 86 87 88
AUX21:VS2 22: 23:VM2 AUX41:CML84 42: 43: |8990919293949596
Session ID: pcs_2193
Execution mode: ON LINE
System date & time: 21 Jan 1990 12:34:56
"START" end. ---------- Press [SHIFT] [MENU] for more keys.
User 1 Caps Idle
xxxxxxxxxxxxxxxxxxx
EDIT
xxxxxxxxxxxxxxxxxxx
Continue
xxxxxxxxxxxxxxxxxxx
RUN
xxxxxxxxxxxxxxxxxxx
SCRATCH
xxxxxxxxxxxxxxxxxxx
LOAD ""
xxxxxxxxxxxxxxxxxxx
RE-STORE
""
xxxxxxxxxxxxxxxxxxx
Delete
TIS
xxxxxxxxxxxxxxxxxxx
Link
TIS
Figure 6-2. Example of Configuration Page for Port Expander
System Verification 6-3
