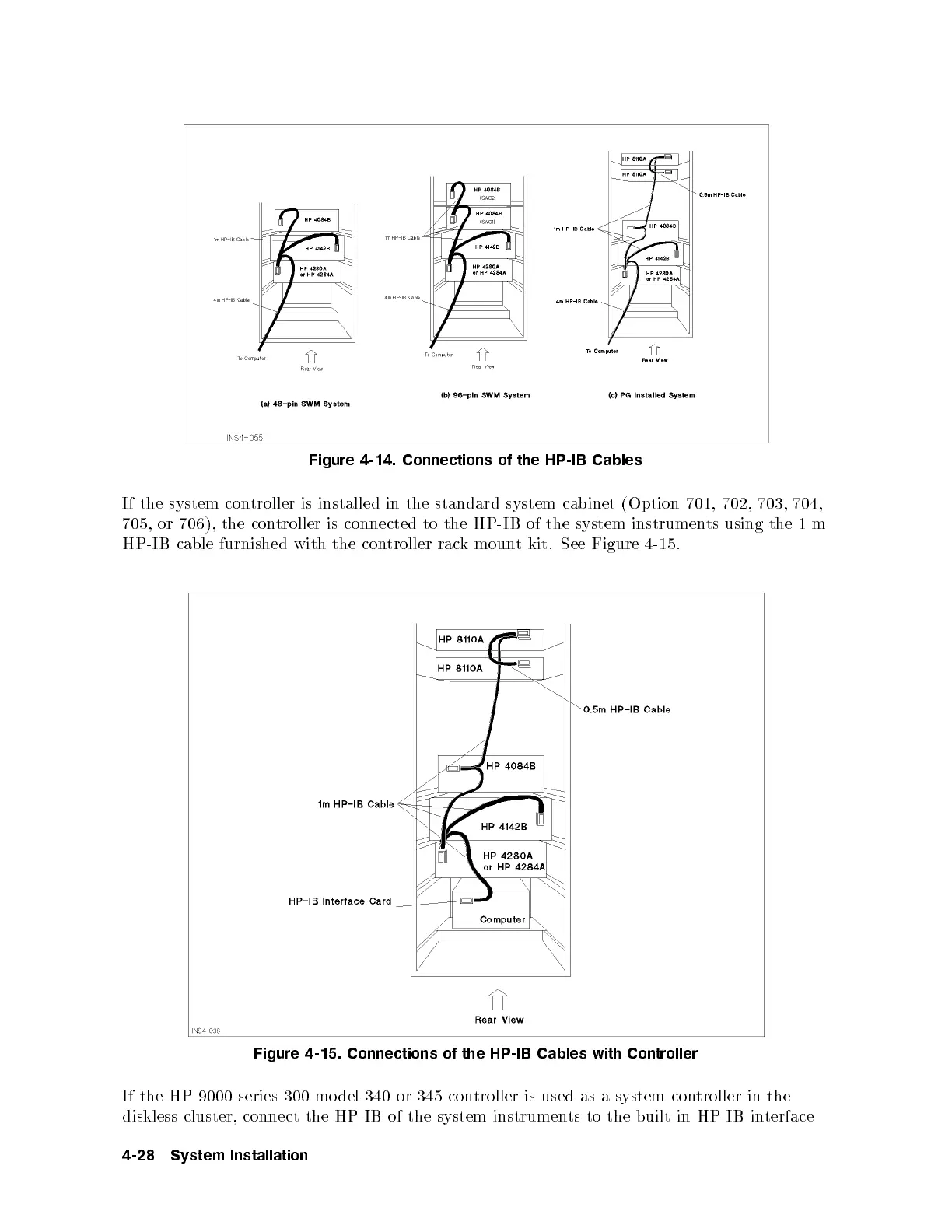

Figure 4-14. Connections of the HP-IB Cables
If the system controller is installed in the standard system cabinet (Option 701, 702, 703, 704,
705, or 706), the controller is connected to the HP-IB of the system instrumen
ts using the 1 m
HP-IB cable furnished with the controller rack mount kit. See Figure 4-15 .
Figure 4-15. Connections of the HP-IB Cables with Controller
If the HP 9000 series 300 mo del 340 or 345 con
troller is used as a system controller in the
diskless cluster, connect the HP-IB of the system instrumen
ts to the built-in HP-IB interface
4-28 System Installation
