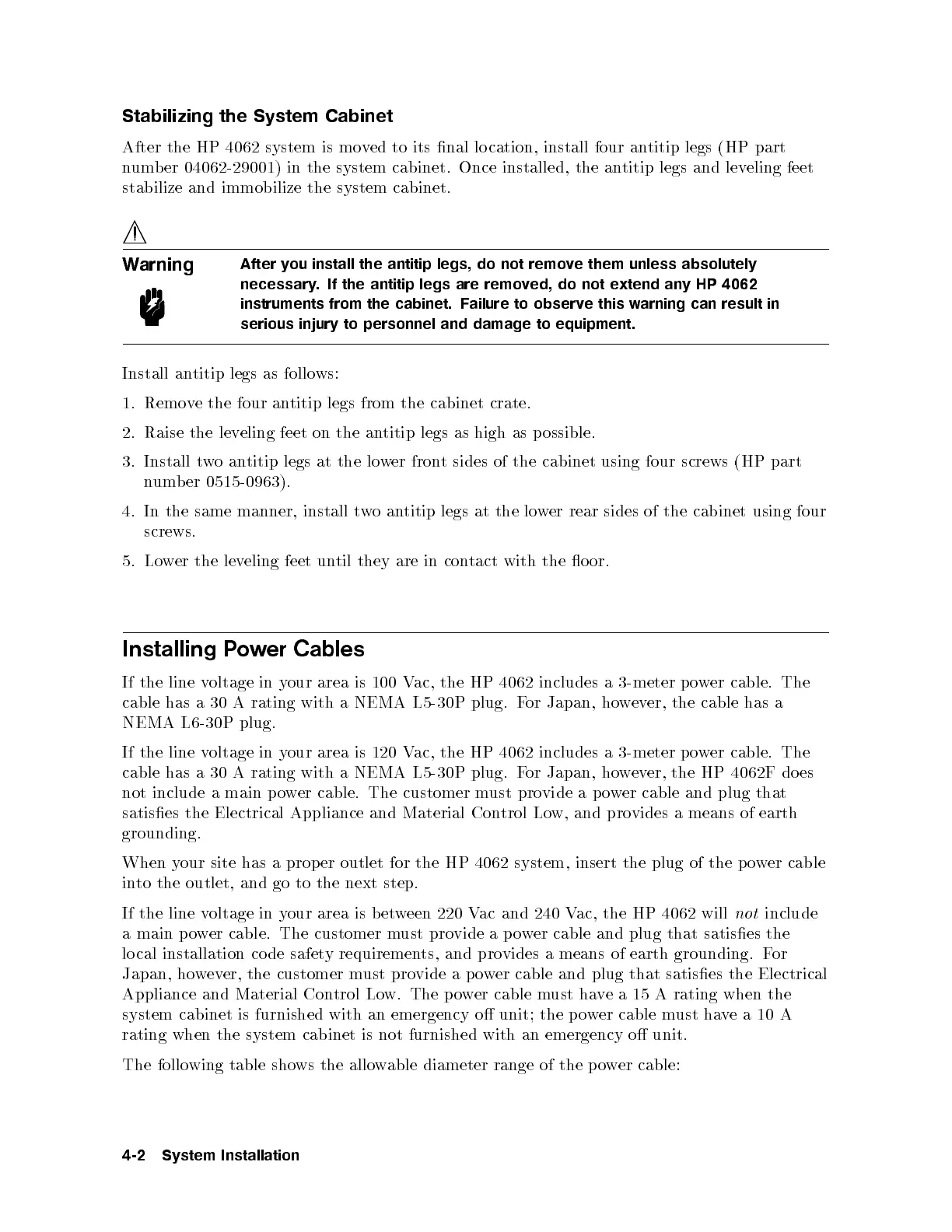

Stabilizing the System Cabinet
After the HP 4062 system is moved to its nal lo cation, install four antitip legs (HP part
number 04062-29001) in the system cabinet. Once installed, the antitip legs and leveling feet
stabilize and immobilize the system cabinet.
Warning
After you install the antitip legs, do not remove them unless absolutely
necessary. If the antitip legs are removed, do not extend any HP 4062
instruments from the cabinet. Failure to observe this warning can result in
serious injury to personnel and damage to equipment.
Install antitip legs as follows:
1. Remove the four antitip legs from the cabinet crate.
2. Raise the leveling feet on the antitip legs as high as p ossible.
3. Install twoantitip legs at the lower front sides of the cabinet using four screws (HP part
number 0515-0963).
4. In the same manner, install twoantitip legs at the lower rear sides of the cabinet using four
screws.
5. Lower the leveling feet until they are in contact with the o or.
Installing Power Cables
If the line voltage in your area is 100 Vac, the HP 4062 includes a 3-meter po
wer cable. The
cable has a 30 A rating with a NEMA L5-30P plug. F
or Japan, however, the cable has a
NEMA L6-30P plug.
If the line voltage in your area is 120 Vac, the HP 4062 includes a 3-meter po
wer cable. The
cable has a 30 A rating with a NEMA L5-30P plug. For Japan, however, the HP 4062F do es
not include a main p ower cable. The customer must provide a power cable and plug that
satises the Electrical Appliance and Material Control Low, and provides a means of earth
grounding.
When your site has a prop er outlet for the HP 4062 system, insert the plug of the p o
wer cable
into the outlet, and go to the next step.
If the line voltage in your area is b etween 220 Vac and 240 Vac, the HP 4062 will
not
include
a main power cable. The customer must provide a power cable and plug that satises the
lo cal installation code safety requirements, and provides a means of earth grounding. For
Japan, however, the customer must provide a p ower cable and plug that satises the Electrical
Appliance and Material Control Low. The p ower cable must have a 15 A rating when the
system cabinet is furnished with an emergency o unit; the p ower cable must have a 10 A
rating when the system cabinet is not furnished with an emergency o unit.
The following table shows the allowable diameter range of the p ower cable:
4-2 System Installation
