HP 4062UX - VS Test Results Page; VM Test Results Page

9. VS Test
Select
NNNNNNNNNNNNNN
NEXT softkey to start VS Test. FollowVS toAUX port connection instructions.
d a
c b
++++++++++ VS TEST +++++++++++ |---TEST RESULTS--|
|VS | OK | | RELAY |OK |
| SMU |OK |
|VS |OK |
|VM | |
| AFU | |
| CMS C-G | |
| CMS BIAS | |
| DC LEAK | |
VS TEST FINISHED
VM Test is next. Select NEXT to go on. Select SKIP to skip this test.
User 1 Caps Running
aaaaaaaaaaaaaaa
NEXT
aaaaaaaaaaaaaaa
SKIP
aaaaaaaaaaaaaaa aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa aaaaaaaaaaaaaaa aaaaaaaaaaaaaaa aaaaaaaaaaaaaaa
EXIT

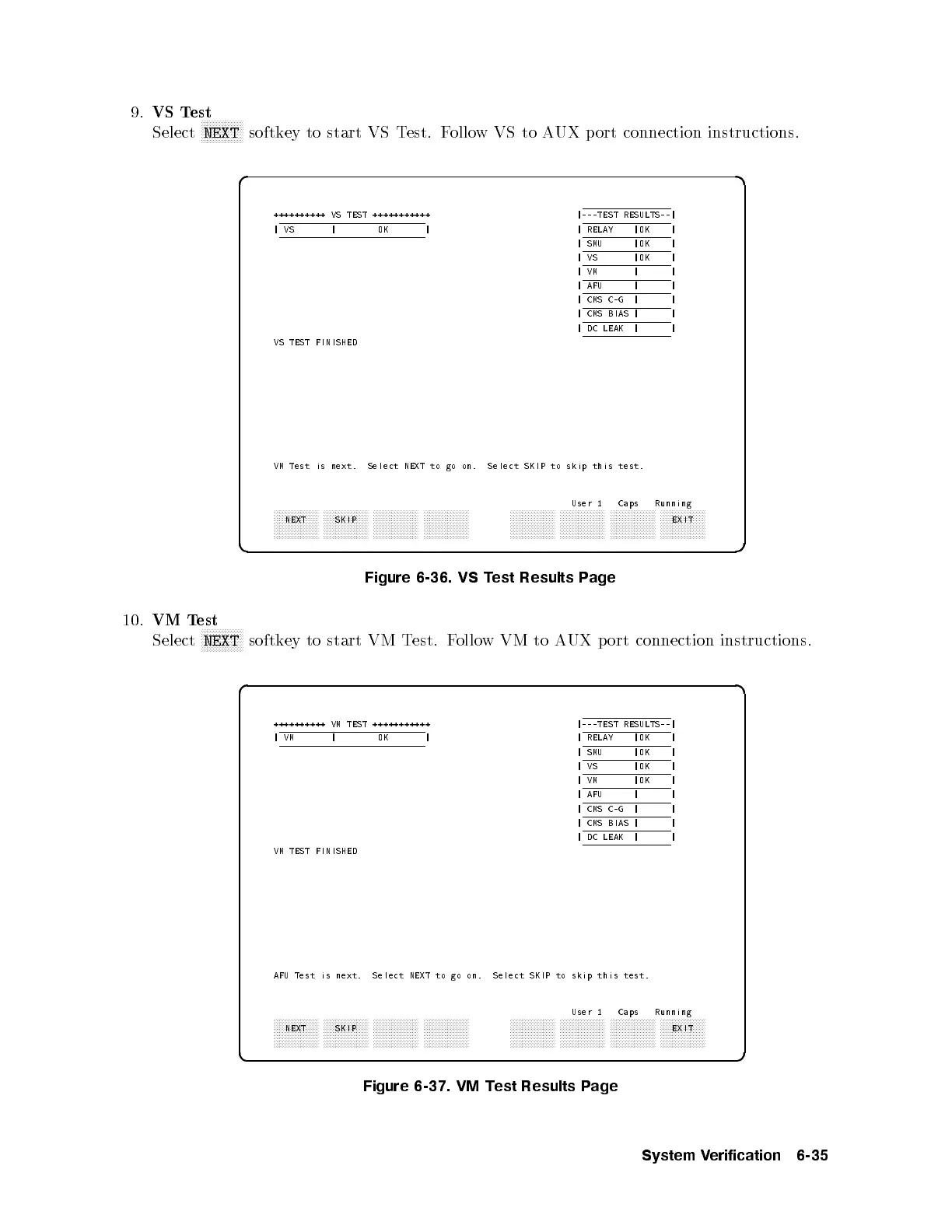

Figure 6-36. VS Test Results Page
10. VM Test
Select
NNNNNNNNNNNNNN
NEXT softkey to start VM Test. FollowVMto AUX port connection instructions.
d a
c b
++++++++++ VM TEST +++++++++++ |---TEST RESULTS--|
|VM | OK | | RELAY |OK |
| SMU |OK |
|VS |OK |
|VM |OK |
| AFU | |
| CMS C-G | |
| CMS BIAS | |
| DC LEAK | |
VM TEST FINISHED
AFU Test is next. Select NEXT to go on. Select SKIP to skip this test.
User 1 Caps Running
aaaaaaaaaaaaaaa
NEXT
aaaaaaaaaaaaaaa
SKIP
aaaaaaaaaaaaaaa aaaaaaaaaaaaaaa aaaaaaaaaaaaaaa aaaaaaaaaaaaaaa aaaaaaaaaaaaaaa aaaaaaaaaaaaaaa
EXIT
Figure 6-37. VM Test Results Page
