HP 4062UX - VM Test Results Page; AFU Test Results Page

d a
c b

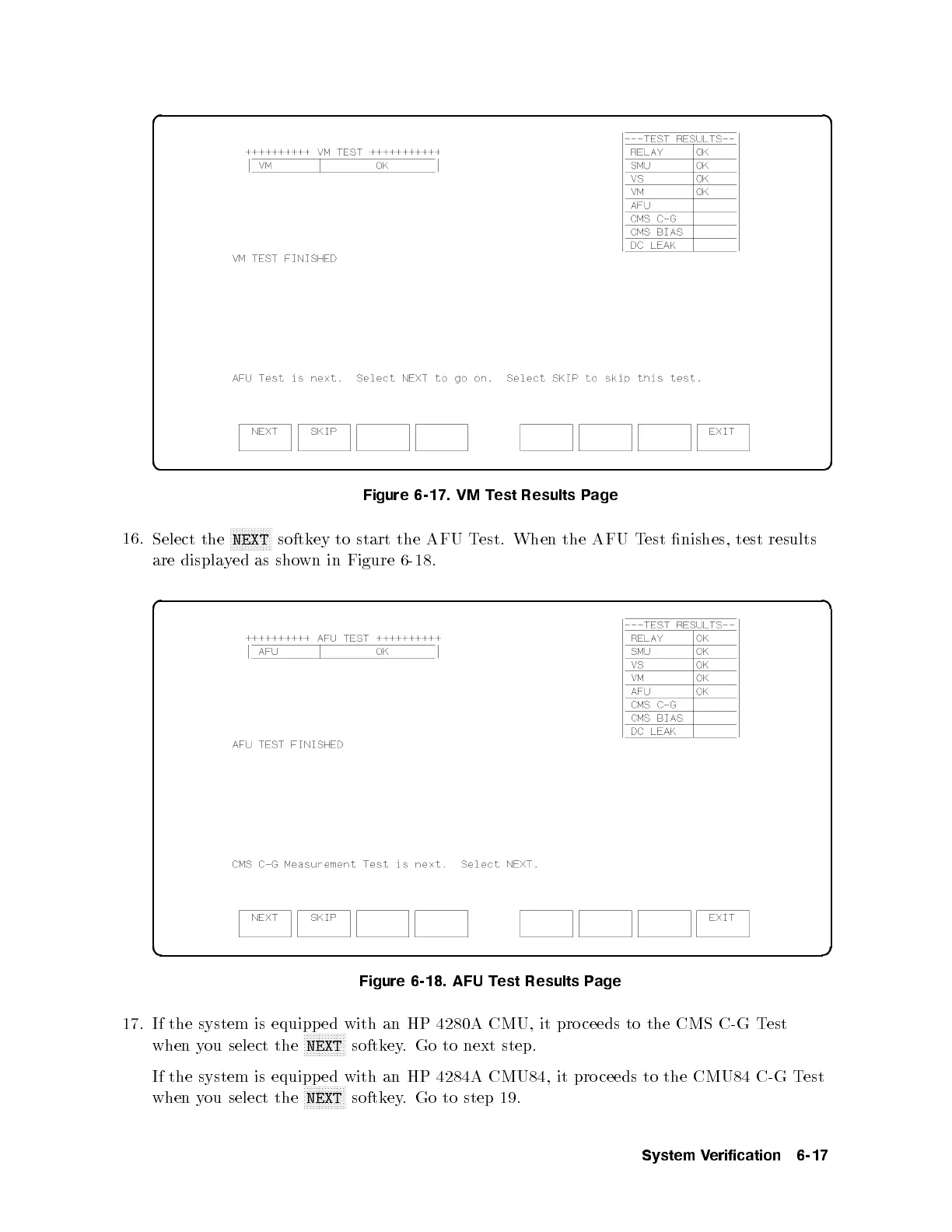

Figure 6-17. VM Test Results Page
16.
Select the
NNNNNNNNNNNNNN
NEXT softkey to start the AFU Test. When the AFU Test nishes, test results
are displayed as shown in Figure 6-18 .
d a
c b
Figure 6-18. AFU Test Results Page
17. If the system is equipped with an HP 4280A CMU, it pro ceeds to the CMS C-G Test
when you select the
NNNNNNNNNNNNNN
NEXT softkey. Go to next step.
If the system is equipped with an HP 4284A CMU84, it pro ceeds to the CMU84 C-G T
est
when you select the
NNNNNNNNNNNNNN
NEXT softkey. Go to step 19.
System Verification 6-17
