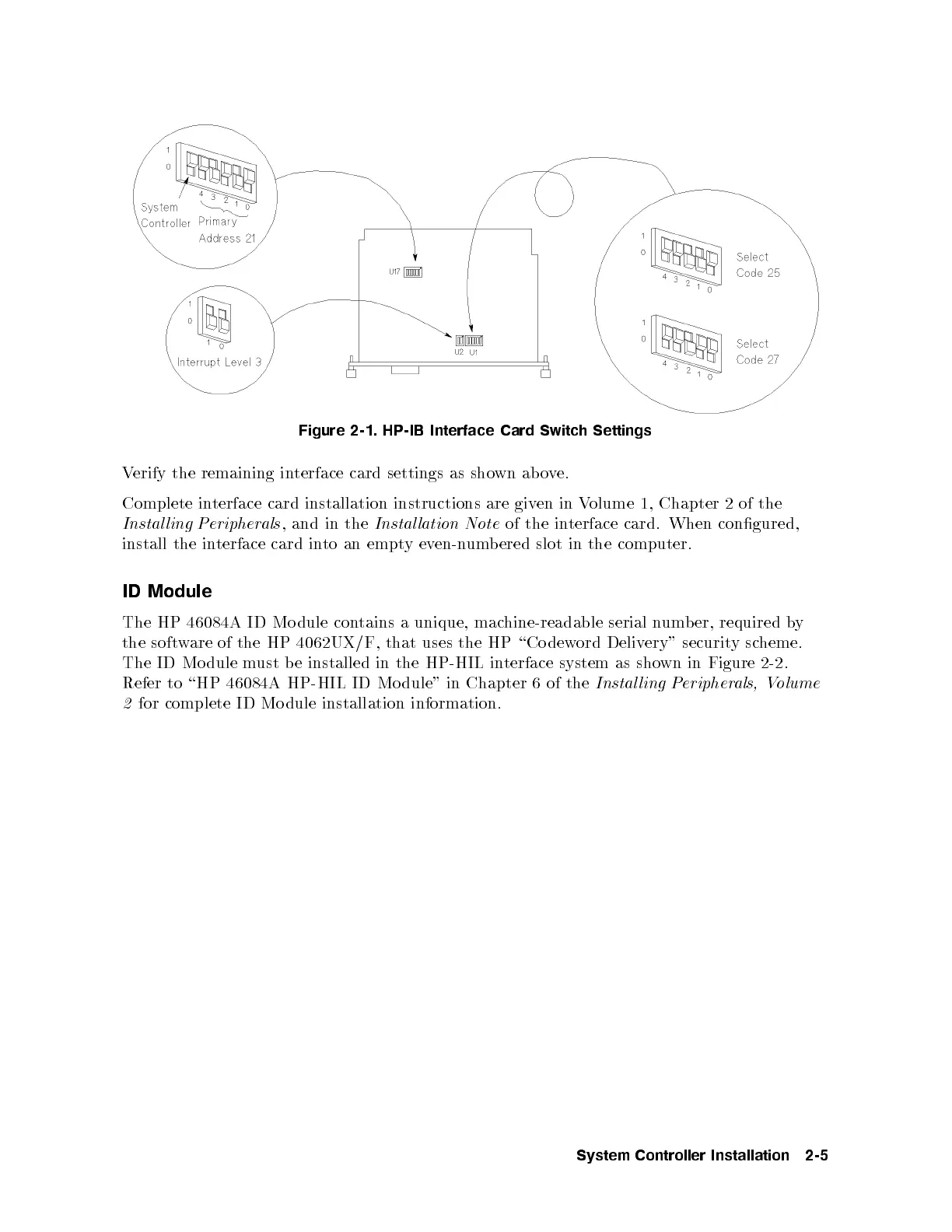

Figure 2-1. HP-IB Interface Card Switch Settings
Verify the remaining interface card settings as shown ab ove.
Complete interface card installation instructions are given in Volume 1, Chapter 2 of the
Instal ling Peripherals
, and in the
Instal lation Note
of the interface card. When congured,
install the interface card into an emptyeven-numbered slot in the computer.
ID Module
The HP 46084A ID Mo dule contains a unique, machine-readable serial numb er, required by
the software of the HP 4062UX/F, that uses the HP \Co dew
ord Delivery" securityscheme.
The ID Mo dule must b e installed in the HP-HIL interface system as shown in Figure 2-2.
Refer to \HP 46084A HP-HIL ID Mo dule" in Chapter 6 of the
Instal ling Peripherals, Volume
2
for complete ID Mo dule installation information.
System Controller Installation 2-5
