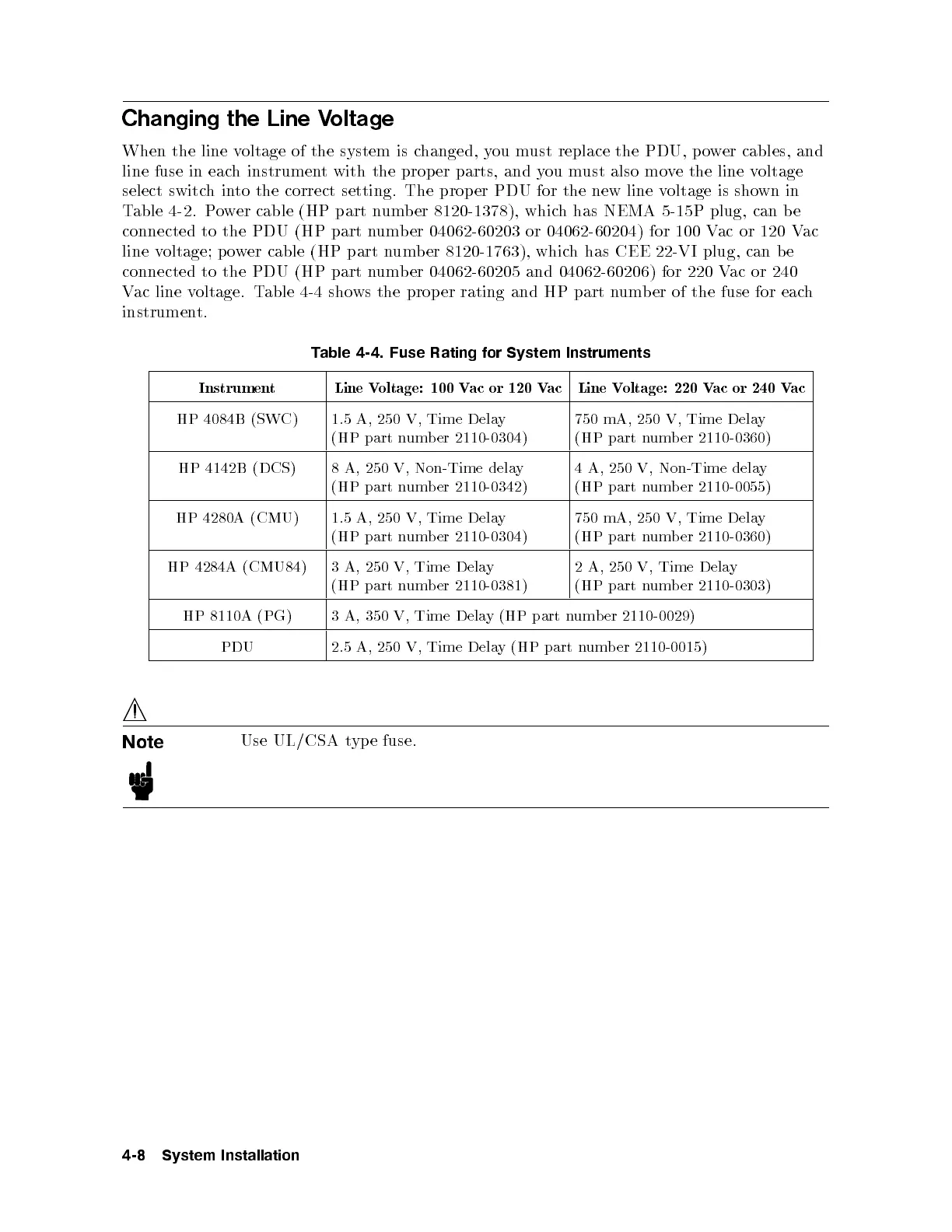

Changing the Line Voltage
When the line voltage of the system is changed, you must replace the PDU, p ower cables, and
line fuse in each instrument with the prop er parts, and you must also move the line voltage
select switchinto the correct setting. The prop er PDU for the new line voltage is shown in
Table 4-2. Power cable (HP part numb er 8120-1378), which has NEMA 5-15P plug, can be
connected to the PDU (HP part number 04062-60203 or 04062-60204) for 100 Vac or 120 Vac
line voltage; p ower cable (HP part number 8120-1763), which has CEE 22-VI plug, can b e
connected to the PDU (HP part number 04062-60205 and 04062-60206) for 220 Vac or 240
Vac line voltage. Table 4-4 shows the prop er rating and HP part numb er of the fuse for each
instrument.
Table 4-4. Fuse Rating for System Instruments
Instrument Line Voltage: 100 Vac or 120 Vac Line Voltage: 220 Vac or 240 Vac
HP 4084B (SWC) 1.5 A, 250 V, Time Delay
(HP part number 2110-0304)
750 mA, 250 V, Time Delay
(HP part numb er 2110-0360)
HP 4142B (DCS) 8 A, 250 V, Non-Time delay
(HP part number 2110-0342)
4 A, 250 V, Non-Time delay
(HP part numb er 2110-0055)
HP 4280A (CMU) 1.5 A, 250 V, Time Delay
(HP part number 2110-0304)
750 mA, 250 V, Time Delay
(HP part numb er 2110-0360)
HP 4284A (CMU84) 3 A, 250 V, Time Delay
(HP part number 2110-0381)
2 A, 250 V, Time Delay
(HP part numb er 2110-0303)
HP 8110A (PG) 3 A, 350 V, Time Delay (HP part number 2110-0029)
PDU 2.5 A, 250 V, Time Delay (HP part number 2110-0015)
Note
Use UL/CSA typ e fuse.
4-8 System Installation
