Figure 4-18 shows the cable connections between the CMU and SWM. Use the following
pro cedure to install the cables:
1. Connect the cable assembly (HP part numb er 04062-61601) to the UNKNOWN terminals
of the CMU.
2. Connect a triaxial-triaxial adapter (HP part number 1250-1838) to the cable assembly
CMH connector and one to the CML connector.
3. Thread the CMH cable (HP part number 04085-61661) and CML cable (HP part number
04085-61662) through the left-hand cable entry op ening (b elow the CMU) on the front
panel of the cabinet.
4. Connect the CMH cable to the triaxial-triaxial adapter connected to the cable assembly
CMH connector.
5. Connect the CML cable to the triaxial-triaxial adapter connected to the cable assembly
CML connector.
6. Connect the CMH and CML cables to the AUX PORT 3 and 4 connectors, resp ectively,of
SWM.

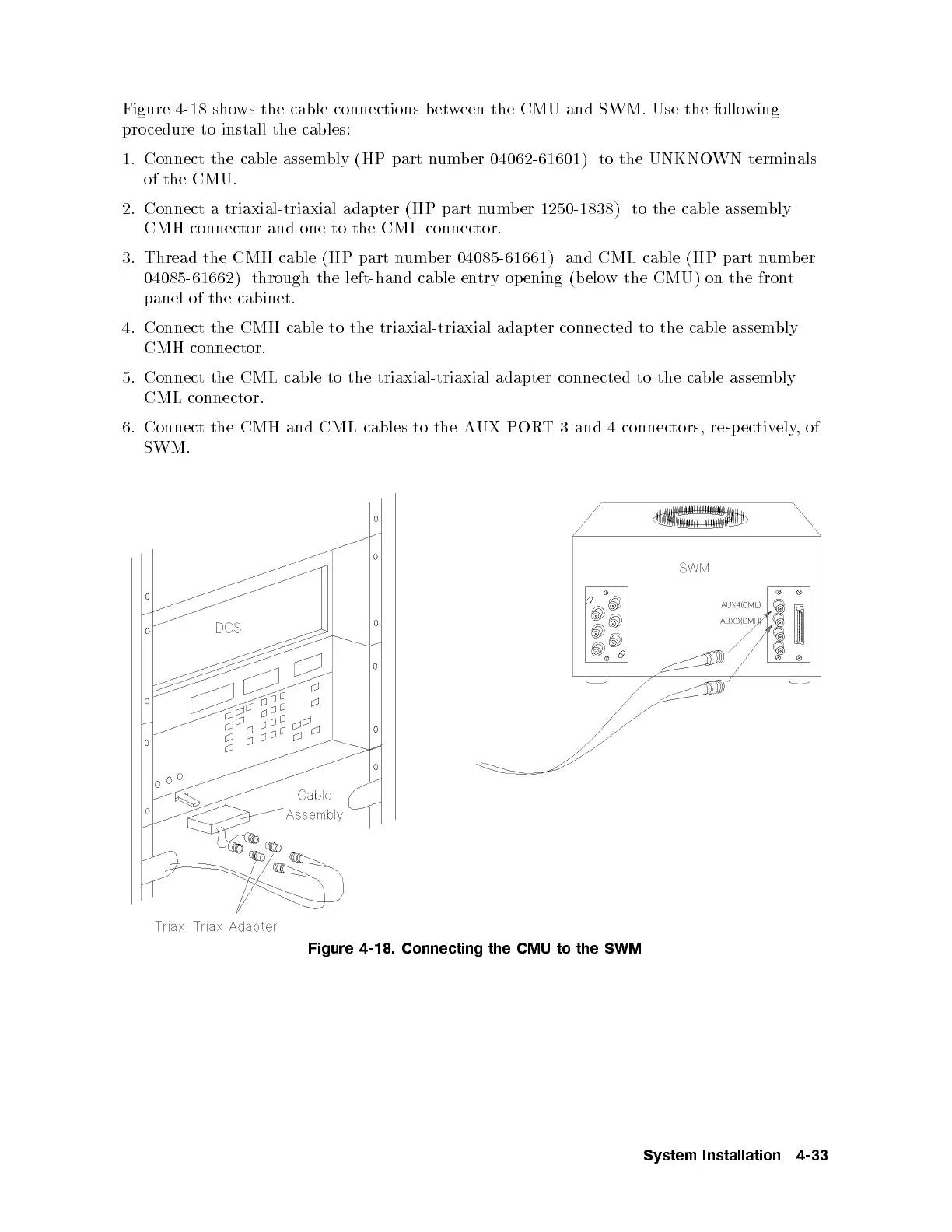

Figure 4-18. Connecting the CMU to the SWM
System Installation 4-33
