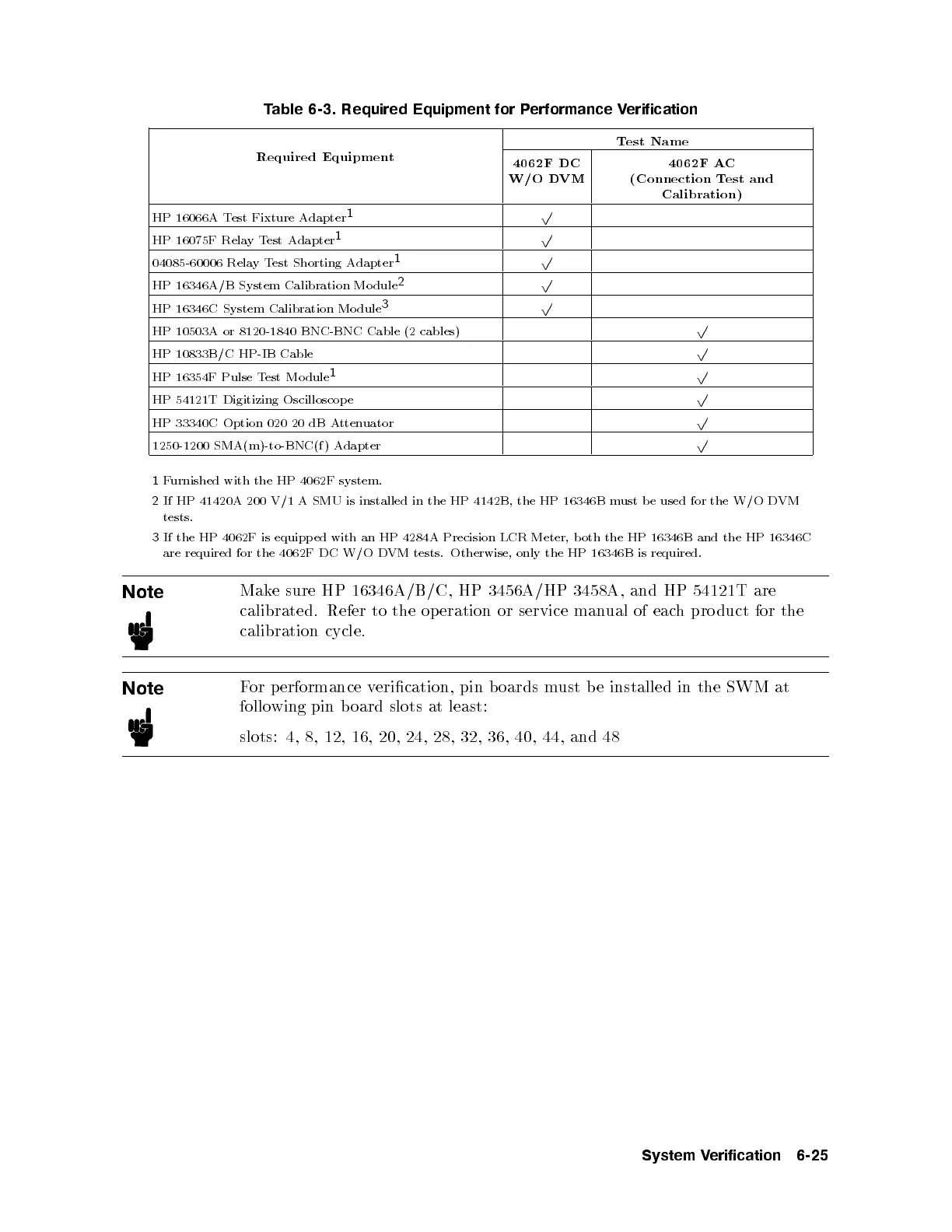

Table 6-3. Required Equipment for Performance Verification
Required Equipment
Test Name
4062F DC
W/O DVM
4062F AC
(Connection Test and
Calibration)
HP 16066A Test Fixture Adapter
1
p
HP 16075F Relay Test Adapter
1
p
04085-60006 Relay Test Shorting Adapter
1
p
HP 16346A/B System Calibration Mo dule
2
p
HP 16346C System Calibration Module
3
p
HP 10503A or 8120-1840 BNC-BNC Cable (2 cables)
p
HP 10833B/C HP-IB Cable
p
HP 16354F Pulse Test Mo dule
1
p
HP 54121T Digitizing Oscilloscop e
p
HP 33340C Option 020 20 dB Attenuator
p
1250-1200 SMA(m)-to-BNC(f ) Adapter
p
1
Furnished with the HP 4062F system.
2
If HP 41420A 200 V/1 A SMU is installed in the HP 4142B, the HP 16346B m
ust b e used for the W/O DVM
tests.
3
If the HP 4062F is equipp ed with an HP 4284A Precision LCR Meter, b oth the HP 16346B and the HP 16346C
are required for the 4062F DC W/O DVM tests. Otherwise, only the HP 16346B is required.
Note
Make sure HP 16346A/B/C, HP 3456A/HP 3458A, and HP 54121T are
calibrated. Refer to the op eration or service man
ual of each pro duct for the
calibration cycle.
Note
For p erformance verication, pin b oards must b e installed in the SWM at
following pin b oard slots at least:
slots: 4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, and 48
System Verification 6-25
