Although the cables from the system cabinet are ab out 4 m long, p osition the HP 4085F
SWM less than 2 m from the system cabinet. Also, if the HP 4085F SWM is installed on a
wafer prober, make sure there is enough slack in the cables so that the HP 4085F SWM can
be easily raised and lowered.
Caution
Do not use cables or cable assemblies other than those supplied with the
system. Use of other cables may damage the instruments or may makeit
imp ossible to obtain specied measurement accuracy.
After installing all the signal cables, fasten the interconnection cables connected to HP 4142B
together using cable ties shown in Figure 4-26.

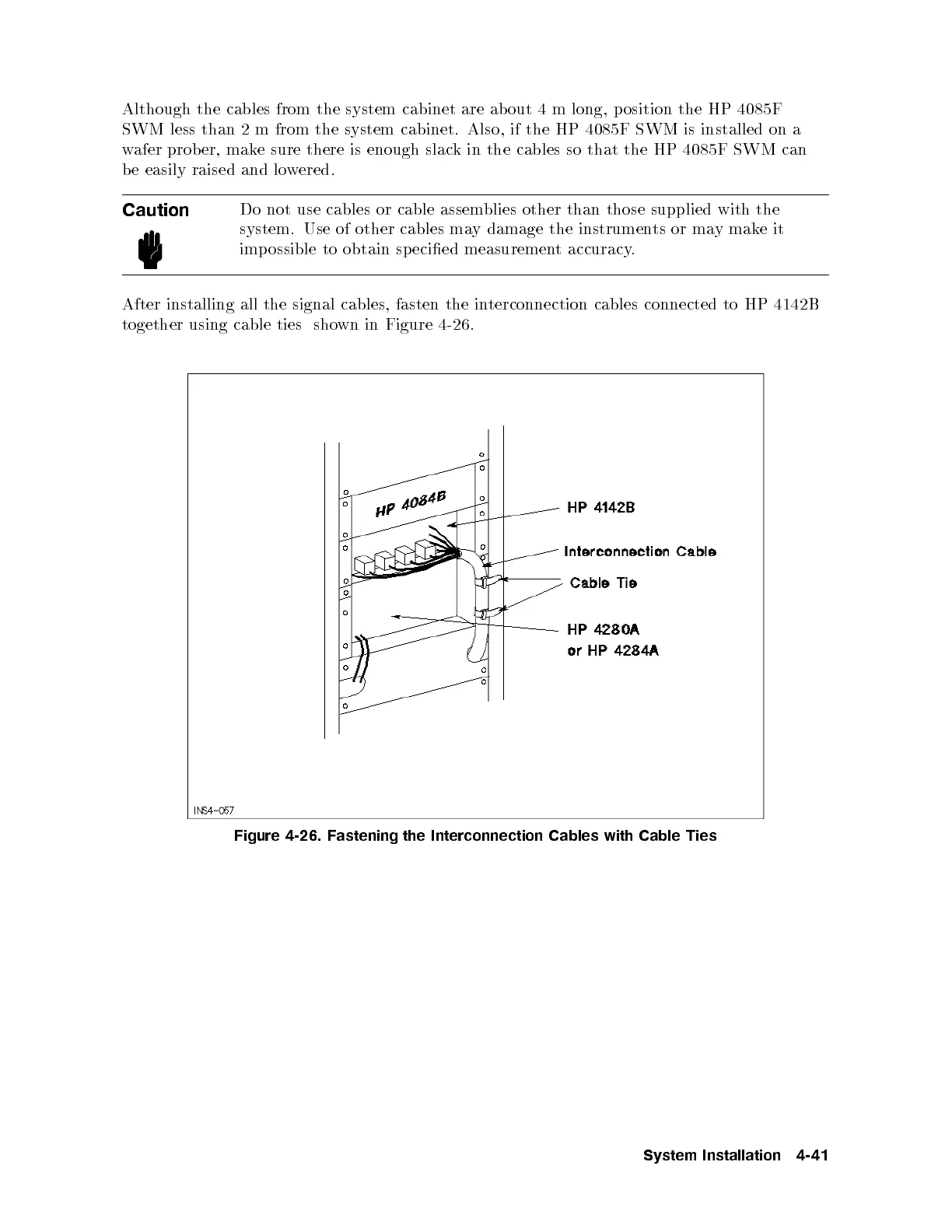

Figure 4-26. Fastening the Interconnection Cables with Cable Ties
System Installation 4-41
