HP 8360 B Series User Manual

CONNECTORS
MOO Cl +5v RESERKKI
MOO ANLG GNO
MOO
SENSE
MOO $1 DIG &do MT LVL’ (COAX)
\
\
-15v RESERVED

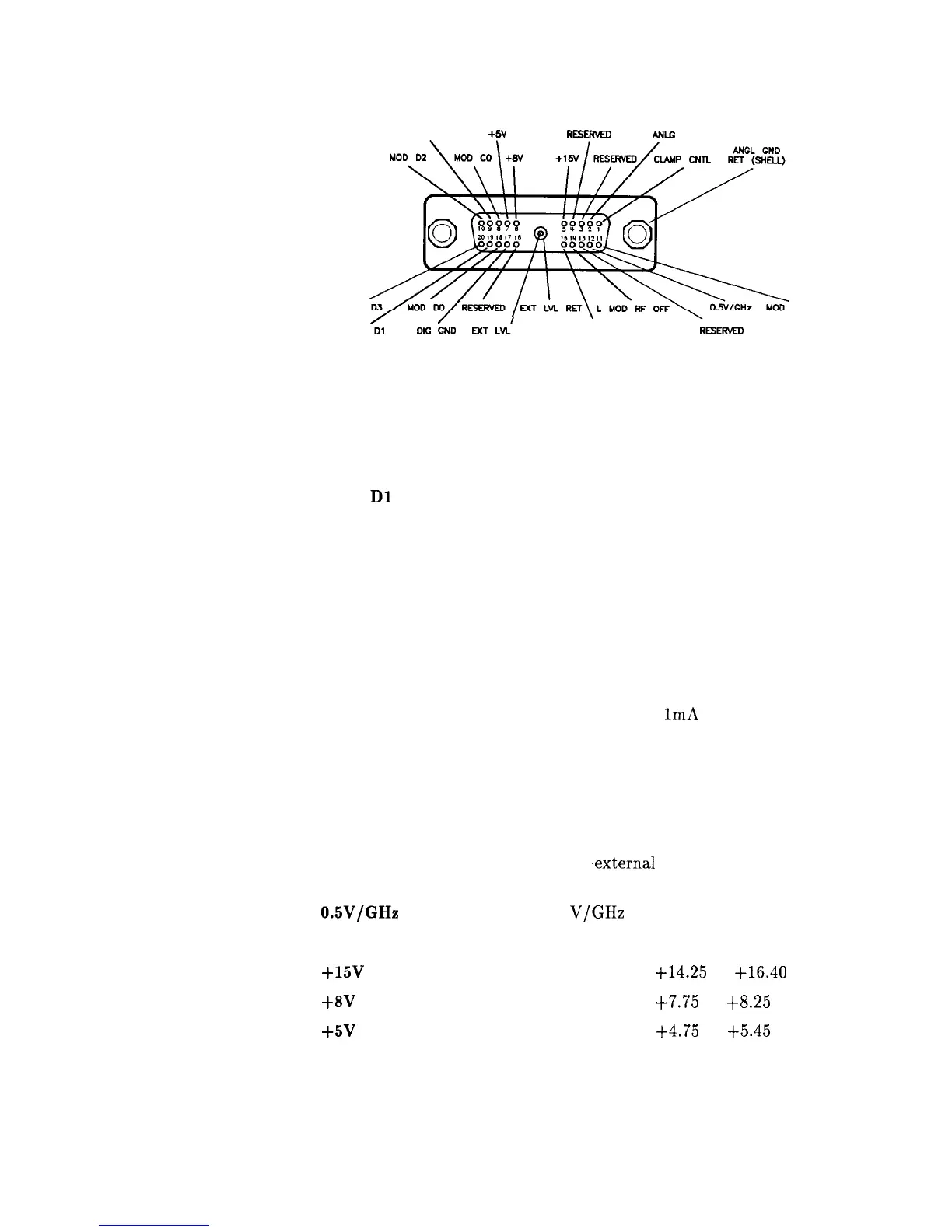

Figure C-3. Interface Signals of the Source Module Connector
The codes indicated on the illustration above translate as follows:
MOD DO
MOD Dl
MOD D2
MOD D3
MOD CO
MOD Cl
CLAMP CNTL
MOD SENSE
L MOD RF OFF
EXT LVL RET
EXT LVL
0.5V/GHz
-15v
+15v
+w
+5v
DIG GND
MOD ANLG GND
ANLG GND RET
Source module data line zero. Signals MOD DO
through MOD D3 are the mm source module
data bus lines (bi-directional).
Data line one.
Data line two.
Data line three.
Source module control line zero. Signals MOD
CO and MOD Cl are the control lines for the
read/write to and from the mm source module.
Control line one.
Source module clamp control (not used).
Source module sense. A 1mA current is injected
on this line by the mm source module to
indicate its presence. This signal always equals
0 v.
Low = RF off. Source module RF is turned off.
Source module external leveling return.
Source module ,external leveling input, from the
mm source module.
Internal 0.5 V/GHz to the mm source module.
Power supply. Range is -14.25 to -15.90 V.
Power supply. Range is +14.25 to +16.40 V
Power supply. Range is +7.75 to t8.25 V.
Power supply. Range is t4.75 to t5.45 V.
Digital ground.
Source module analog ground.
Analog ground return.
C-10 Operating and Programming Reference
