Ref Osc Henu
10 MHz Freq Standard None Sets the swept signal generator
to free-run operation, where no
frequency standard is used.
Programming Codes
SCPI:
ROSCillator:SOURce:INTernal~EXTernal~NONe
Analyzer: NONE
See Also
Softkeys listed above.
Function Group
POWER
Menu Map
NONE

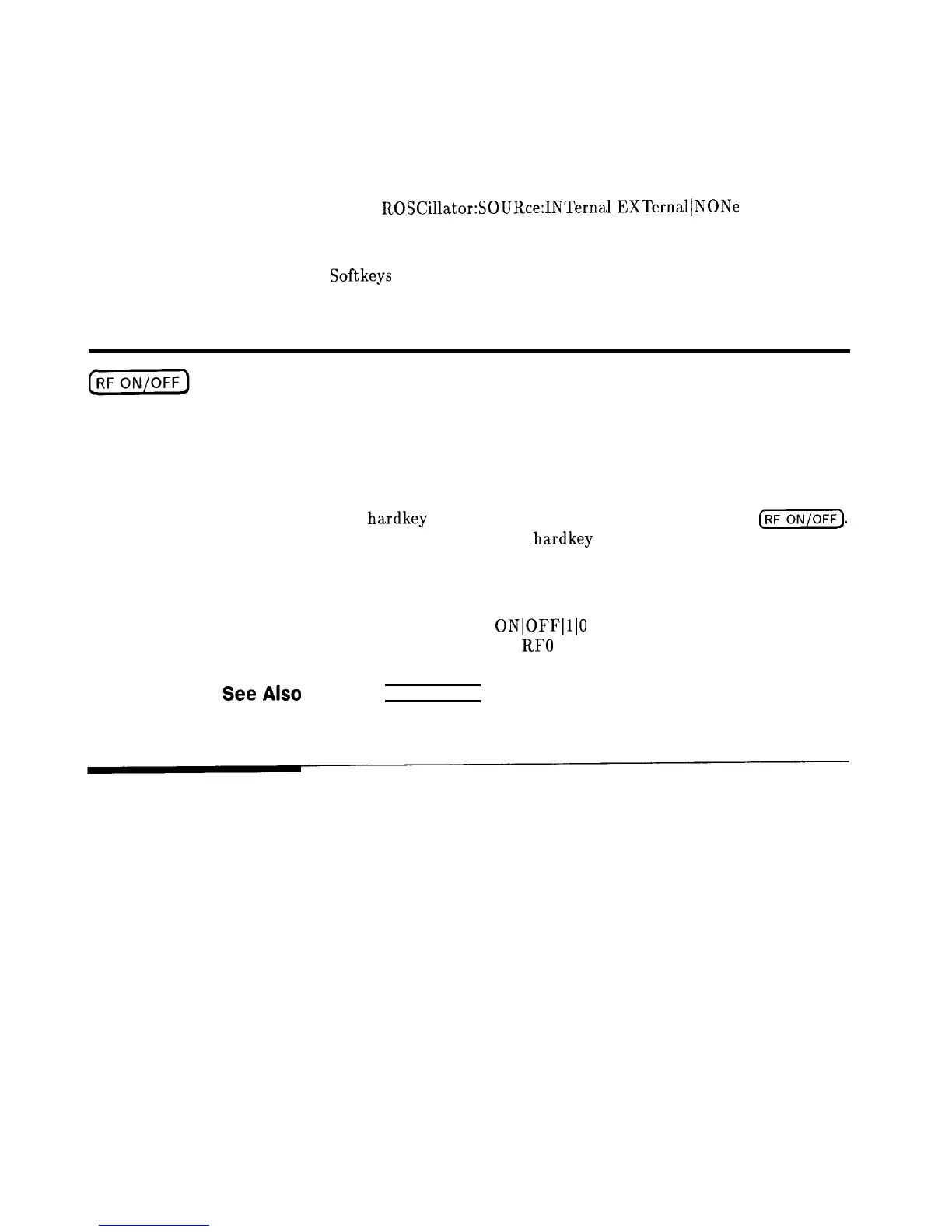

Description
This
hardkey
turns the RF power output on or off. Press
(-ON/OFF).
If the yellow LED above the
hardkey
is off, power is off, and RF OFF
appears in the message line of the display. Press the key again to
turn on RF power and restore the power value last entered.
Programming Codes
SCPI: POWer:STATe
ONlOFFlllO
Analyzer: RF1 power on, RF0 power off.
See
Also
[MOD), (POWER LEVEL)
ROTARY KNOB
Function Group
ENTRY
Menu Map
NONE
Description
The rotary knob is active whenever the entry area is on. It controls
a rotary pulse generator that allows analog-type adjustment of the
active entry area. Although the rotary knob has the feel of analog
control, it is actually a digital control that generates 120 pulses per
revolution.
Programming Codes
NONE
See Also
ARROW KEYS, ENTRY KEYS
“Entry Area” in Chapter 1
R-2 Operating and Programming Reference
