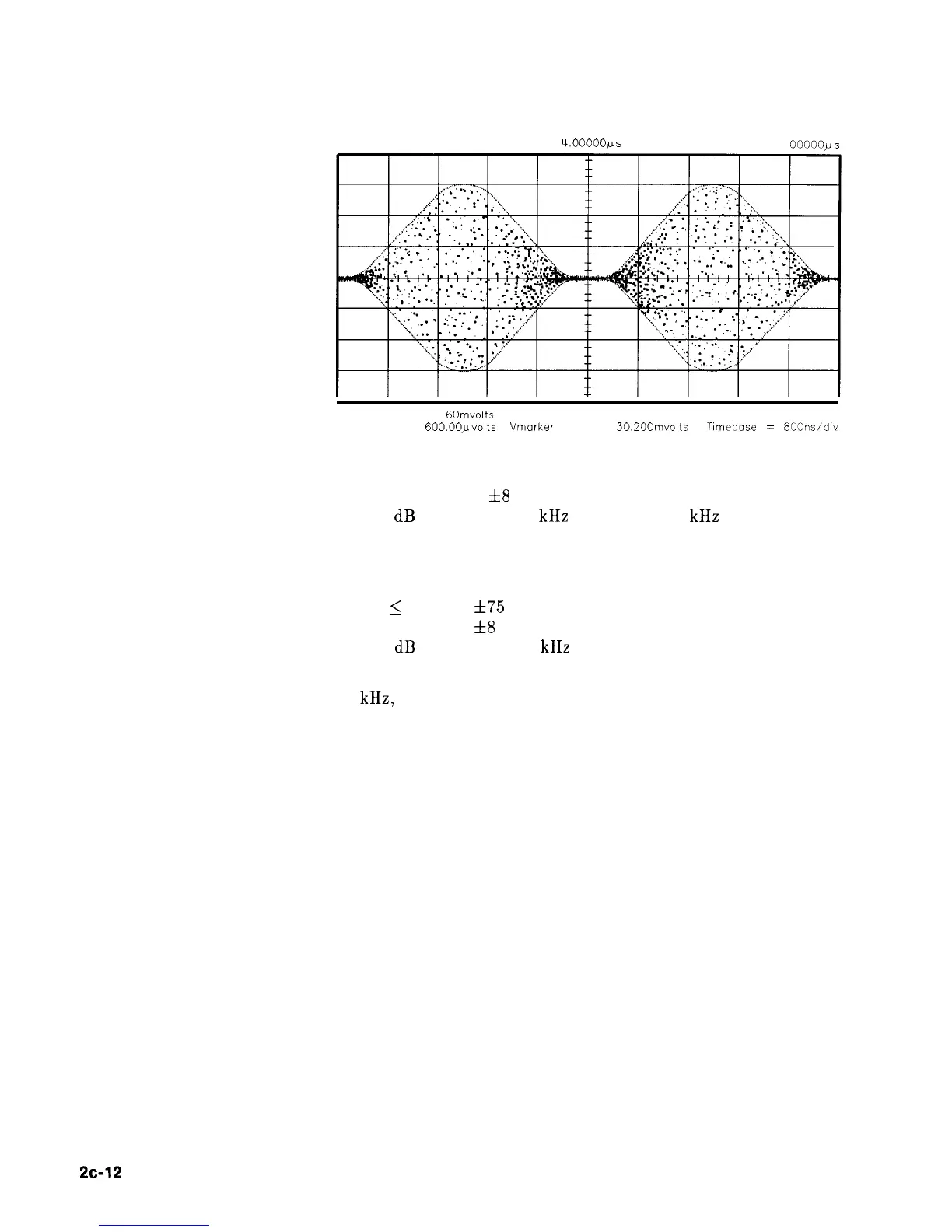

HP 8360 B Series - Simultaneous Modulations

0.00000s
Ir.ooooop 5
8 OOOOOp s
Delta V
= 29 60mvolts
Vmcrker 1
= 6OO.OOpvolts Vmarker 2 = 30.200mvolts Timebose = 800ns/div
FM
Locked Mode
Maximum Deviation: f8 MHz
Rates (3 dB bandwidth, 500 kHz deviation): 100 kHz to 8 MHz
Maximum Modulation Index (deviation/rate): n x 5
Unlocked Mode
Maximum Deviation
At rates 5 100 Hz: f75 MHz
At rates > 100 Hz: f8 MHz
Rates (3 dB bandwidth, 500 kHz deviation): DC to 8 MHz
Sensitivity
100 kHz, 1 MHz, or 10 MHz/volt, switchable
Accuracy (1 MHz rate, 1 MHz deviation): 10%
Simultaneous
Full AM bandwidth and depth is typically available at any pulse
Modulations
rate or width. FM is completely independent of AM and pulse
modulation.
2c-12 Specifications
